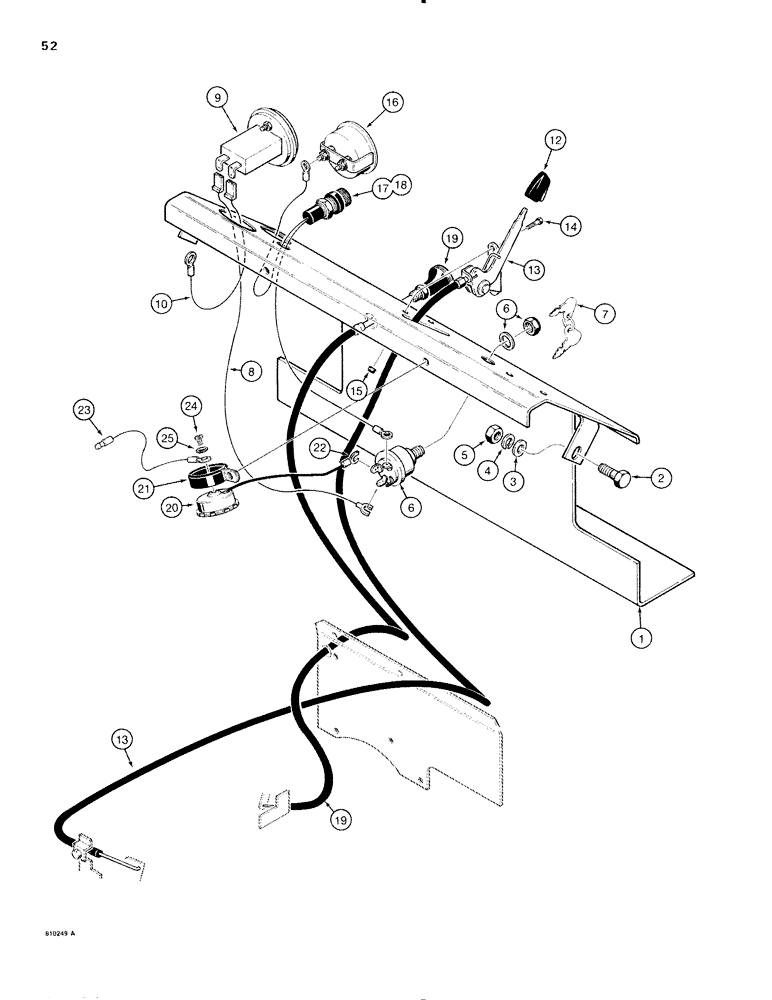

Запчасти Case IH 1816C (052) - INSTRUMENT PANEL AND ENGINE CONTROLS (04) - ELECTRICAL SYSTEMS

1

D93720

PANEL ASSY.

INSTRUMENT PANEL - Uni-loader, order D120013 for service, includes decals

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

3

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

6

D35092

SWITCH

KEY SWITCH - Includes: Ref. 7

1шт.

7

R30074

SET

KEY - set of two

1шт.

8

D90357

WIRE - key, Serial Range: switch-hourmeter

1шт.

9

D53047

GAUGE

HOURMETER - complete

1шт.

10

D93733

WIRE - hourmeter ground

1шт.

12

D128686

KNOB

- throttle

1шт.

13

D120365

CONTROL

LEVER AND CABLE - throttle, for throttle linkage on engine, see Fig. 038

1шт.

14

163-15

SCREW,Hex, #10 - 24 x 5/8"

BOLT - hex head, No. 10-24 NC x 5/8", slotted, plated

2шт.

15

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - special lock, No. 10-24 NC, plated

2шт.

16

D56643

ELECTRICAL GAUGE

AMMETER - electrical

1шт.

17

D56988

HOLDER

- fuse, Includes: Ref. 18

1шт.

18

223-31

FUSE,10 Amp, Type 3AG

- AGC 30 amp

1шт.

19

D93729

CABLE

ASSEMBLY - choke

1шт.

20

L103667

BUZZER

- oil pressure warning (Replaces L103666)

1шт.

21

D120561

CLAMP

- buzzer

1шт.

22

223-70

SPADE TERMINAL,18 - 20

TERMINAL - starting cable, buzzer wire to key switch, replaces terminal on service buzzer

1шт.

23

D121126

ELECTRICAL WIRE

WIRE - warning, Serial Range: buzzer-harness

1шт.

24

182-81

SCREW,Slotted Pan Hd, #8-32 x 3/16"

MACHINE SCREW - pan head, No. 8-32 NC x 3/16"

1шт.

25

193-5

LOCK WASHER,Ext Tooth, #8

WASHER - external tooth lock, No. 8

1шт.
