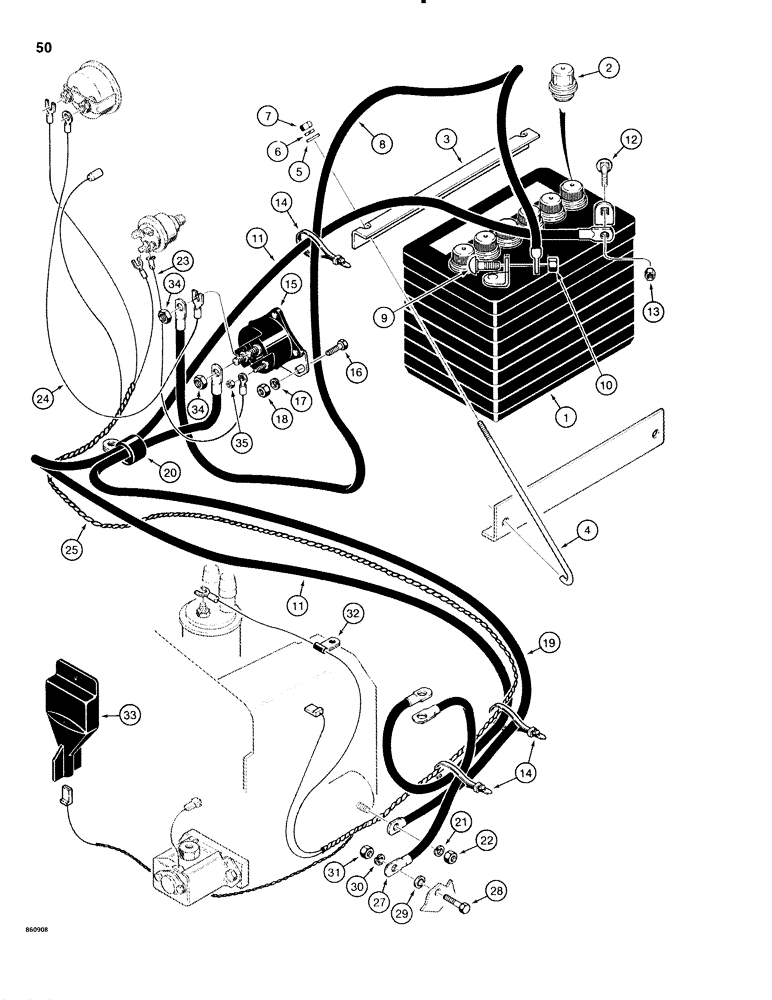

Запчасти Case IH 1816C (050) - ELECTRICAL WIRING AND BATTERY (04) - ELECTRICAL SYSTEMS

1

C18197

NO LONGER SERVICED

BATTERY - 12 volt, service replacement must be used with A60553 nonspill caps

1шт.

When replacing battery, use the (6) nonspill caps from old battery or order (6) A60553 nonspill caps.

1шт.

2

A60553

CAP

- battery, nonspill, if used

6шт.

When replacing battery, use the (6) nonspill caps from old battery or order (6) A60553 nonspill caps.

1шт.

3

D60582

ANGLE

PLATE - battery hold down

1шт.

4

D60580

BOLT

- battery hold down, J-type

2шт.

5

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

2шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

7

129-578

NUT,5/16"-18, G5

- hex, 5/16"-18 NC

2шт.

8

D121366

CABLE

- battery to solenoid, positive

1шт.

9

111-260

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2

- 5/16"-18 NC x 3/4", plated

1шт.

10

129-578

NUT,5/16"-18, G5

- hex, 5/16"-18 NC, plated

1шт.

11

D93731

CABLE

- ground, battery, connects at engine mounting bolts see Fig. 014 for engine mounting

1шт.

12

111-135

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

- 1/4"-20 NC x 3/4", plated

1шт.

13

129-577

NUT,1/4"-20, G5

- hex, 1/4"-20 NC, plated

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

15

A39079

SOLENOID

- switch

1шт.

16

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

18

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

19

D121367

CABLE

- starter to solenoid, red

1шт.

20

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- cables, fastens with chain cover bolt, see Fig. 110 for chain covers

1шт.

21

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

22

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

23

G13083

CABLE

WIRE - solenoid to key switch

1шт.

24

D93946

ELECTRICAL WIRE

WIRE -, Serial Range: solenoid-ammeter

1шт.

25

D93662

HARNESS

- engine

1шт.

27

D120882

CABLE

WIRE -, Serial Range: engine-frame

1шт.

28

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

29

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

1шт.

30

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

31

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

32

A38799

CLAMP

- harness, engine harness at engine housing, for engine housing and hardware, see Fig. 034

1шт.

33

D128996

COVER ASSY

COVER - regulator

1шт.

34

193-1009

NUT,Keps, w/LW, 5/16"-18

- special

2шт.

35

193-1000

NUT,Keps, w/LW,#10-32

- special

1шт.
