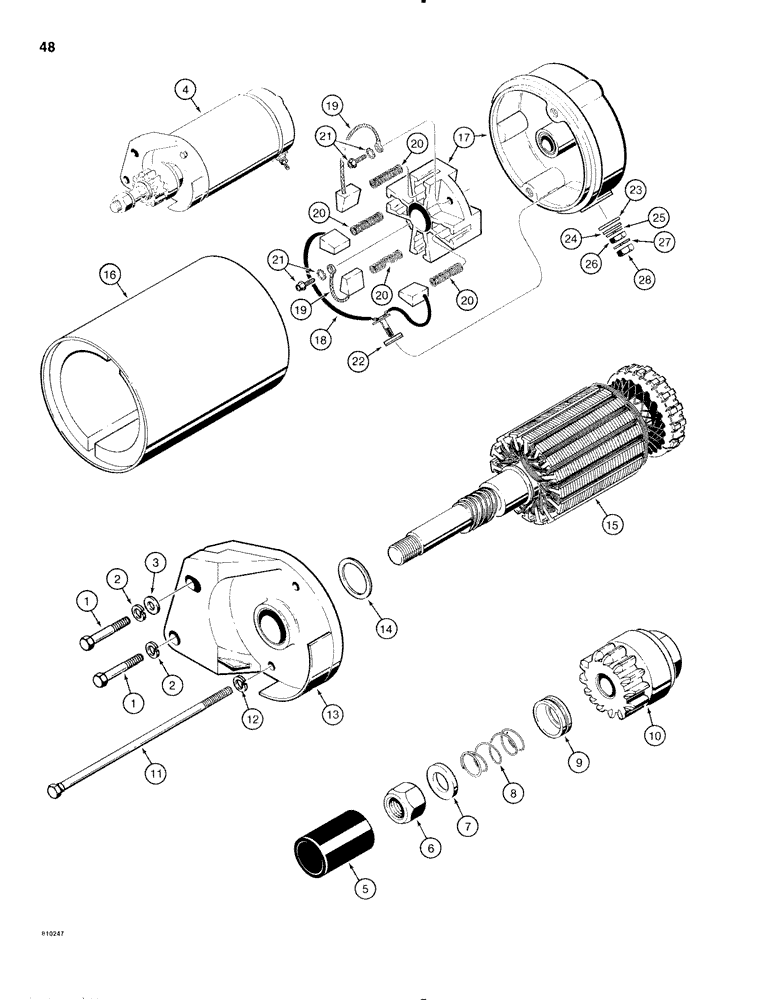

Запчасти Case IH 1816C (048) - STARTER (04) - ELECTRICAL SYSTEMS

1

113-184

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

2шт.

2

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

3

N9655

WASHER

- flat, special

2шт.

4

N9552

MOTOR

STARTER ASSEMBLY - engine, Includes: Ref. 5 - 28

1шт.

5

N9553

KIT

COVER - dust

1шт.

6

NSS

NOT SOLD SEPARAT

NUT - stop

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER - stop nut

1шт.

8

NSS

NOT SOLD SEPARAT

SPRING - anti-drift

1шт.

9

NSS

NOT SOLD SEPARAT

SPACER - dust cover

1шт.

10

N9572

DRIVE

ASSEMBLY - starter

1шт.

11

N9575

BOLT

- tie

2шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

13

N9603

CAP

ASSEMBLY - drive end

1шт.

14

N9604

WASHER

- thrust, armature

1шт.

15

N9605

ARMATURE

- starter

1шт.

16

NSS

NOT SOLD SEPARAT

HOUSING - starter

1шт.

N9649

CAP

ASSEMBLY - commutator end, Includes: Ref. 17 - 26

1шт.

17

NSS

NOT SOLD SEPARAT

CAP - commutator end

1шт.

N9606

KIT

- brush and spring, Includes: Ref. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

STUD AND BRUSH ASSEMBLY - positive

1шт.

19

NSS

NOT SOLD SEPARAT

BRUSH - negative

2шт.

20

NSS

NOT SOLD SEPARAT

SPRING - brush

4шт.

21

NSS

NOT SOLD SEPARAT

SCREW AND LOCKWASHER - brush mounting

2шт.

22

NSS

NOT SOLD SEPARAT

BUSHING - insulating

1шт.

23

NSS

NOT SOLD SEPARAT

WASHER - insulating

1шт.

24

NSS

NOT SOLD SEPARAT

WASHER - stud mounting

1шт.

25

NSS

NOT SOLD SEPARAT

WASHER - lock, stud mounting

1шт.

26

NSS

NOT SOLD SEPARAT

NUT - stud mounting

1шт.

27

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Cable, fastener 1/4"

1шт.

28

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Cable fastener

1шт.
