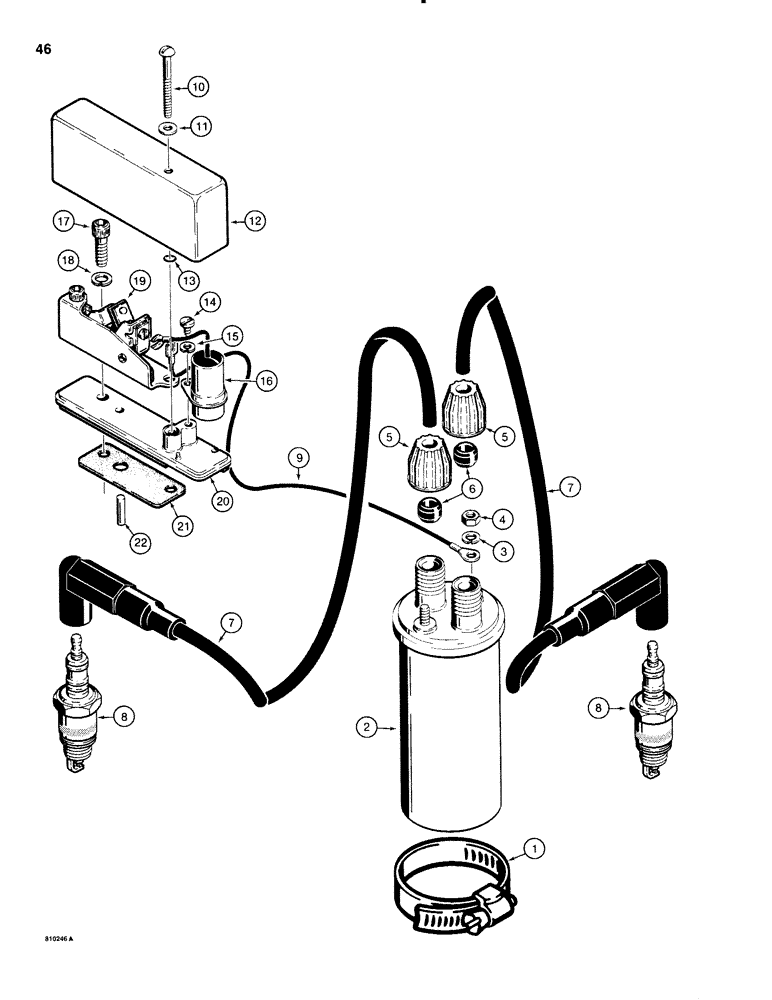

Запчасти Case IH 1816C (046) - IGNITION PARTS (04) - ELECTRICAL SYSTEMS

1

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

- coil #36, 1.81/2.75 Type F Worm

1шт.

2

N7480

COIL

ASSEMBLY - electrical, Includes: Ref. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

COIL - electrical

1шт.

3

N7427

WASHER, LOCK

WASHER - coil terminal

2шт.

4

N7426

NUT

- coil terminal

2шт.

5

N9647

CAP

- coil

2шт.

6

NSS

NOT SOLD SEPARAT

SEAL - spark plug wire

2шт.

7

N13750

CABLE

- spark plug, 584mm (23 in.) Length; Replaces N7423, 432mm (17 in.) Length

1шт.

8

N7424

PLUG

SPARK PLUG, Champion RH18Y

2шт.

9

N7425

ELECTRICAL WIRE

WIRE - breaker box lead

1шт.

74226C91

BOX

BREAKER BOX ASSEMBLY - ignition, Includes: Ref. 11 - 22

1шт.

N9629

COVER

ASSEMBLY - breaker box, Includes: Ref. 11 - 14

1шт.

10

NSS

NOT SOLD SEPARAT

MACHINE SCREW - No. 10-24 NF x 1-1/2"

1шт.

11

195-513

WASHER,#10

- flat, No. 10, special

1шт.

12

NSS

NOT SOLD SEPARAT

COVER - breaker box

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - cover seal

1шт.

14

182-83

SCREW

- self-tapping, No. 8-32 NC x 5/16"

1шт.

15

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

16

N9630

CONDENSER

- breaker box

1шт.

17

165-143

HEX SOC SCREW,1/4" - 20 x 3/4"

SCREW - hex socket head, 1/4"- 20 NC x 3/4", plated

2шт.

18

192-402

LOCK WASHER

WASHER - lock, 1/4", special

2шт.

19

N9631

BREAKER POINTS

ignition

1шт.

20

N9646

BASE

- breaker box assembly

1шт.

21

N9607

GASKET

- breaker box

1шт.

Part of Gasket Kit, P/N N7465

1шт.

22

N9608

PLUNGER

- breaker box

1шт.

N7465

GASKET KIT

GASKET KIT - engine overhaul, Includes: Ref. 22 on this figure and other gaskets shown on Figs. 012, 016, 018, 026, 028, 030, 040 and 042

1шт.
