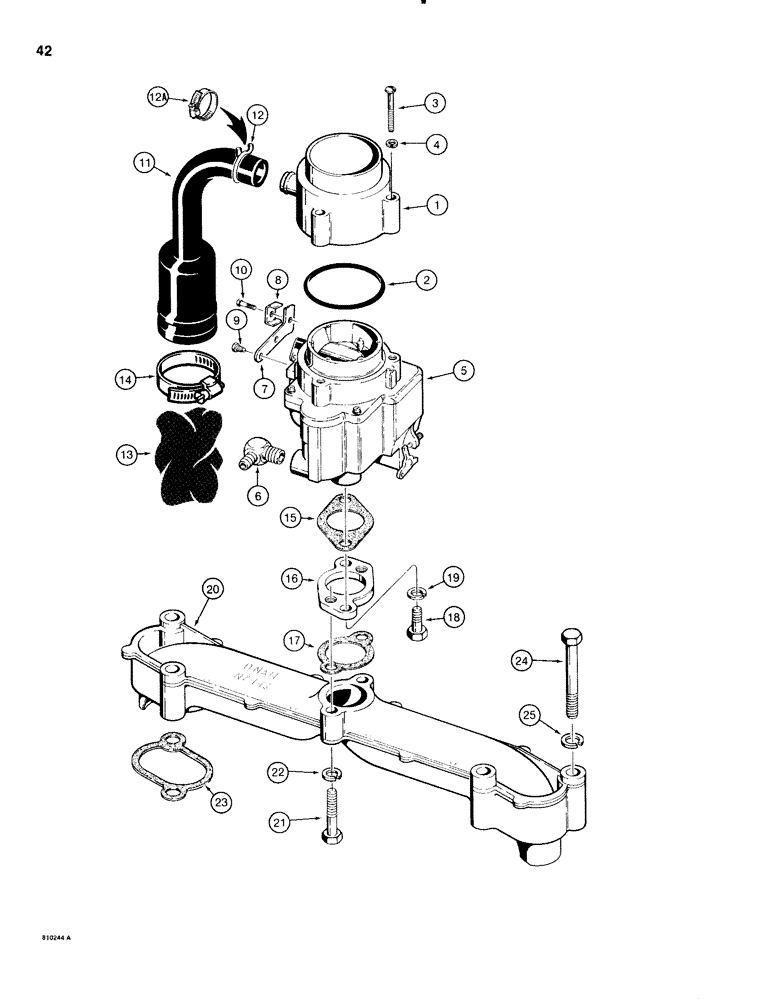

Запчасти Case IH 1816C (042) - CARBURETOR MOUNTING AND INTAKE MANIFOLD (03) - FUEL SYSTEM

1

N7445

RING

ADAPTER - air cleaner, Serial Range: hose-carburetor

1шт.

2

N7444

O-RING

- adapter seal

1шт.

Part of Gasket Kit, P/N N7465

1шт.

3

182-150

SCREW,Cross Pan Hd, #10 - 32 x 1 1/8"

MACHINE SCREW - No. 10-32 NF x 1-1/8"

3шт.

4

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

5

REF

INSTRUCTION

CARBURETOR - parts list Fig. 040

1шт.

6

N9546

ELBOW

BARB FITTING - 90 degree, fuel line in

1шт.

7

N7451

BRACKET

- choke cable

1шт.

8

N7433

CLAMP

CLIP - choke cable

1шт.

9

187-1511

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW - hex head, self-tapping, No. 10-32 NF x 1/2"

1шт.

232809A1 Shoulder Bolt for the 1998814C2 Engine

1шт.

10

163-43

SCREW,Sl Hex Hd, #10 - 32 x 5/16"

BOLT - hex slotted head, 3/16"-32 NF x 5/16", plated

2шт.

11

N7447

TUBE,2.12" L

- breather

1шт.

12

214-106

HOSE CLAMP,#11, 11/16", Spring

CLAMP - tube, at carburetor, spring type, see Ref. No. 12A for service clamp

1шт.

12a

214-252

HOSE CLAMP,#08, 0.5" - 0.91", Type F Worm

CLAMP - tube, at carburetor, worm type

1шт.

13

N7448

TUBE,1" DIA x 4" L

FILTER - breather tube

1шт.

14

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

breather tube #24, 1.06/2.00 Type F Worm

1шт.

15

N7463

GASKET

- carbuaretor to adapter plate

1шт.

Part of Gasket Kit, P/N N7465

1шт.

16

N7449

FLANGE

PLATE - adapter

1шт.

17

N9612

GASKET

- adapter plate to intake manifold

1шт.

Part of Gasket Kit, P/N N7465

1шт.

18

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

20

N7443

KIT

INTAKE MANIFOLD - engine

1шт.

21

113-65

BOLT,Hex, 1/4" - 20 x 1-3/8", Gr 5

- hex head, 1/4"-20 NC x 1-3/8"

2шт.

22

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

23

N7453

GASKET

- intake manifold

2шт.

Part of Gasket Kit, P/N N7465

1шт.

24

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

25

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

N7465

GASKET KIT

GASKET KIT - engine overhaul, Includes: Ref. 2, 15, 17, and 23 on this figure and other gaskets shown on Figs. 012, 016, 018, 026, 028, 030, 040 and 046

1шт.
