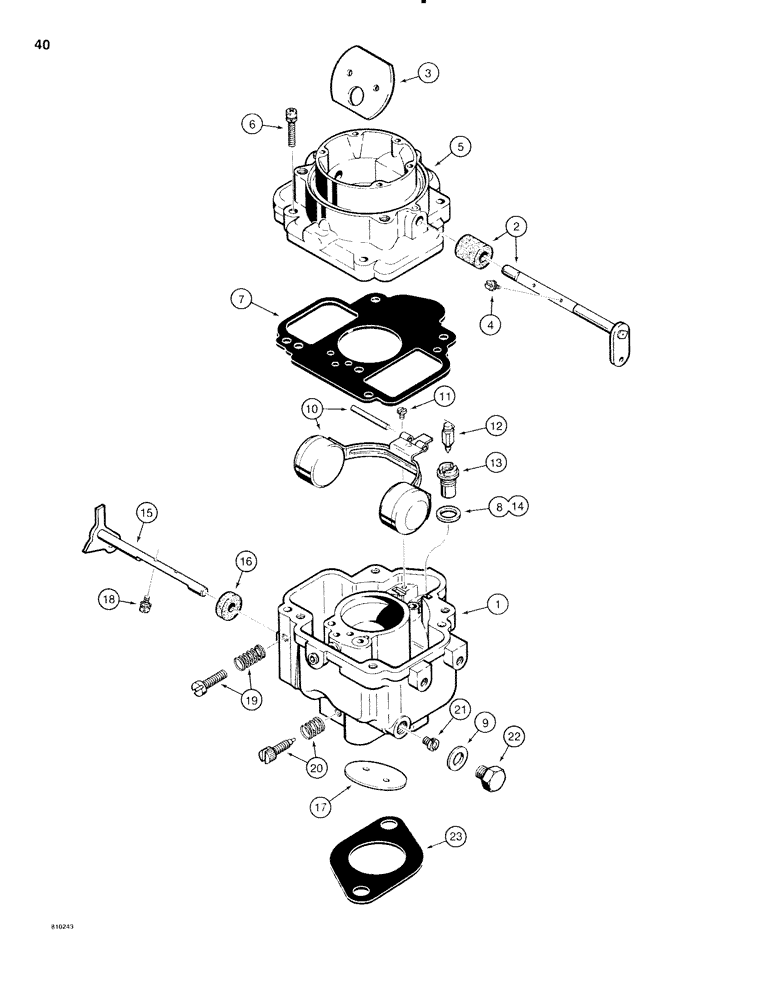

Запчасти Case IH 1816C (040) - CARBURETOR (03) - FUEL SYSTEM

N7767

CARBURETOR

ASSEMBLY - engine, Includes: Ref. 1 - 23

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - carburetor

1шт.

N7455

CHOKE

KIT - choke, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

SHAFT - choke

1шт.

3

NSS

NOT SOLD SEPARAT

PLATE - choke

1шт.

4

NSS

NOT SOLD SEPARAT

SCREW -, Serial Range: plate-shaft

2шт.

5

NSS

NOT SOLD SEPARAT

HOUSING - air intake

1шт.

6

NSS

NOT SOLD SEPARAT

SCREW -, Serial Range: housing-body

4шт.

N7456

GASKET KIT

KIT - gasket, carburetor, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET -, Serial Range: housing-body

1шт.

8

NSS

NOT SOLD SEPARAT

GASKET - valve seat

1шт.

9

NSS

NOT SOLD SEPARAT

GASKET - powerjet plug

1шт.

10

N7458

FLOAT

AND PIN - carburetor

1шт.

11

NSS

NOT SOLD SEPARAT

SCREW - pin

1шт.

N8719

VALVE

KIT - needle valve and seat, Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

VALVE - needle

1шт.

13

NSS

NOT SOLD SEPARAT

SEAT - needle valve

1шт.

14

NSS

NOT SOLD SEPARAT

GASKET - needle valve seat

1шт.

N7457

KIT

- throttle, Includes: Ref. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

SHAFT - throttle

1шт.

16

NSS

NOT SOLD SEPARAT

PACKING - shaft

1шт.

17

NSS

NOT SOLD SEPARAT

PLATE - throttle

1шт.

18

NSS

NOT SOLD SEPARAT

SCREW -, Serial Range: plate-shaft

2шт.

19

N7459

STOP

- throttle, includes screw and spring

1шт.

20

N7461

NEEDLE

- idle, includes needle screw and spring

1шт.

21

N7462

JET

- power

1шт.

22

N7464

PLUG - power jet

1шт.

23

N7463

GASKET

- carburetor adapter plate to intake manifold, see Fig. 042 Ref. 15

1шт.

Part of Gasket Kit, P/N N7465

1шт.

N7465

GASKET KIT

GASKET KIT - engine overhaul, Includes: Ref. 23 on this figure and other gaskets shown on Figs. 012, 016, 018, 026, 028, 030, 042 and 046

1шт.
