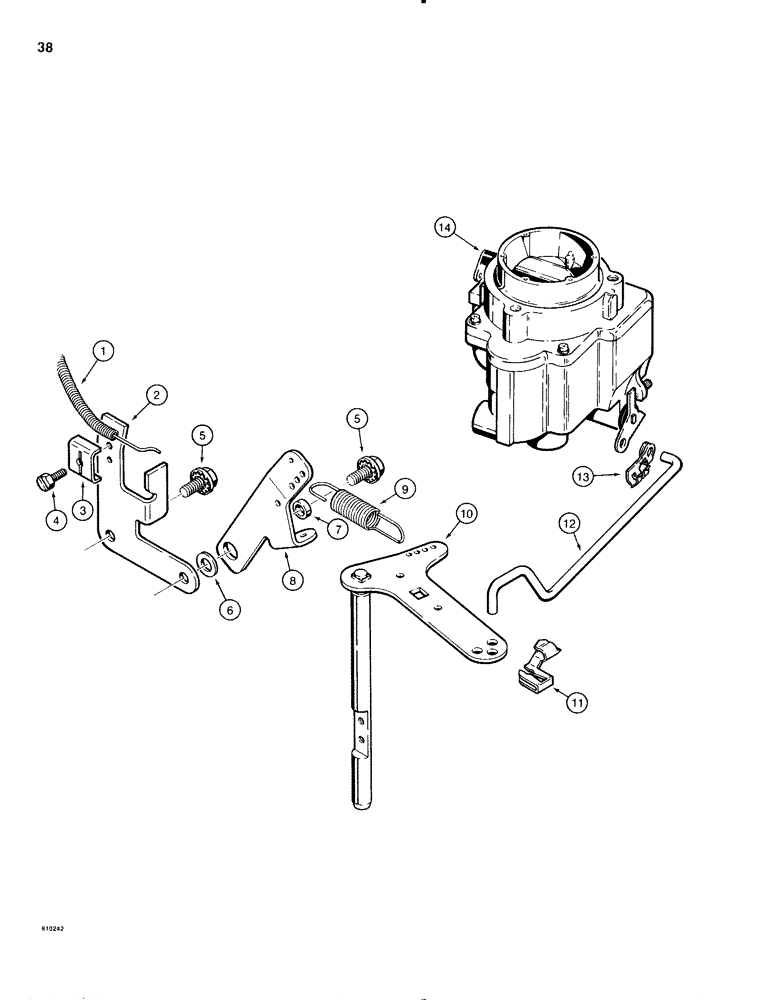

Запчасти Case IH 1816C (038) - ENGINE THROTTLE LINKAGE AND GOVERNOR (03) - FUEL SYSTEM

1

REF

INSTRUCTION

THROTTLE ASSEMBLY - includes cable and lever, see Fig. 052

1шт.

2

N7434

BRACKET

- cable

1шт.

3

N7433

CLAMP

- cable

1шт.

4

187-1511

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW - hex head, self-tapping No. 10-32 NF x 1/2"

1шт.

5

193-517

SCREW,SEMS, Hex Hd, 1/4"-20 x 1/2"

MACHINE SCREW - special, includes external tooth lock washer, 1/4"-20 NC x 1/2"

2шт.

6

195-102

WASHER,1/4"

- flat, , plated 1/4"

1шт.

7

N9610

BUSHING

- friction, control arm

1шт.

8

N7435

ARM

- governor control

1шт.

9

N9611

TENSION SPRING

SPRING - governor

1шт.

10

REF

INSTRUCTION

SHAFT AND ARM - governor, for additional internal governor parts, see Figs. 024 and 026

1шт.

11

N7413

HOLDER

CLIP - governor, Serial Range: arm-rod

1шт.

12

N7414

ROD

, Serial Range: --carburetor

1шт.

13

N9609

BOLT

CLIP -, Serial Range: rod-carburetor

1шт.

14

REF

INSTRUCTION

CARBURETOR - see Fig. 040

1шт.
