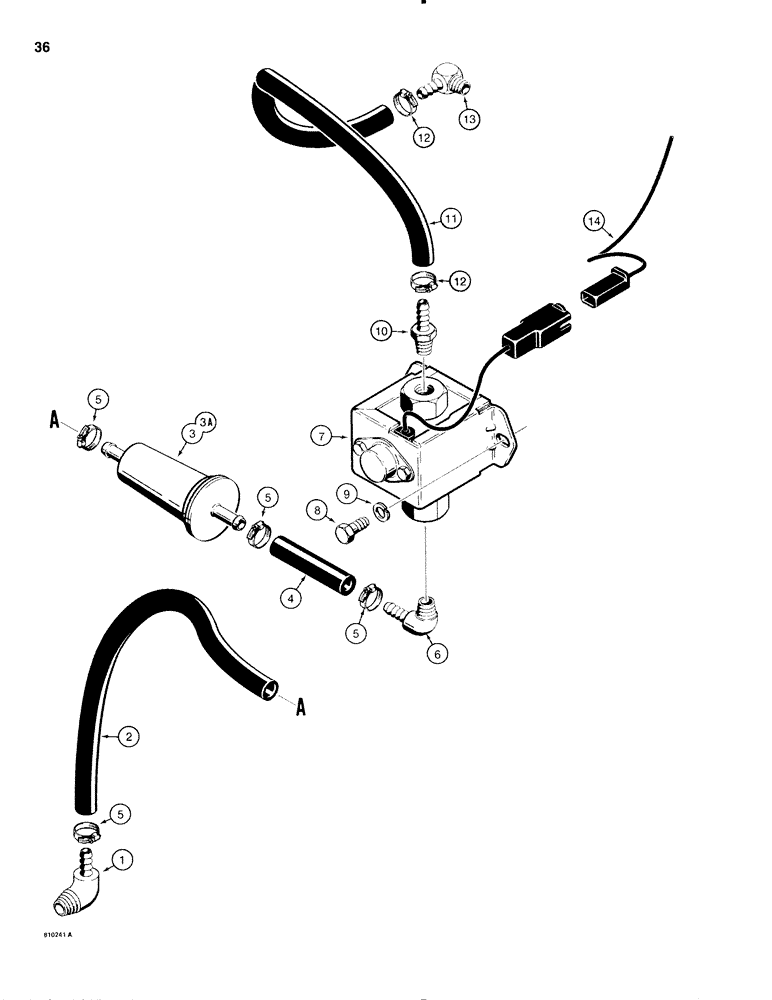

Запчасти Case IH 1816C (036) - FUEL LINES AND FUEL PUMP (03) - FUEL SYSTEM

1

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

BARB FITTING - 90 degree, at fuel tank

1шт.

2

L13809

RADIATOR HOSE,6.40 mm ID x 609.60, SAE 30R2 Type I

- Radiator drain 6.40 mm ID x 609.60, SAE 30R2 Type I

1шт.

3

D59949

FILTER

- fuel, 74 microin, 1.38" diameter, if used, see D126775 conversion fuel kit below

1шт.

3a

L79756

FILTER, FUEL

FILTER - fuel, 10 microin, 2" diameter, if used

1шт.

4

D72352

FUEL HOSE,6.40 mm ID x 50.80 mm, SAE 30R6 or SAE 30R7

1шт.

5

214-335

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP - hose

4шт.

6

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

BARB FITTING - 90 degree, at fuel pump inlet

2шт.

7

D93954

PUMP

- fuel, electric

1шт.

8

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

10

217-120

ELBOW,1/4" Hose Barb x 1/8" Male NPTF

BARB FITTING - straight, at fuel pump outlet

1шт.

11

D72349

FUEL HOSE,0.25" ID x 20.00", SAE 30R6 or SAE 30R7

1шт.

12

214-335

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP - hose

2шт.

13

N9546

ELBOW

BARB FITTING - 90 degree, at carburetor, part of complete engine as shipped from the factory, see Fig. 042

1шт.

14

D92170

CABLE

WIRE - fuel pump to key switch

1шт.

D126775

KIT

- fuel, to convert units equipped with 74 micron filter to a 10 micron filter, Includes L79756 and instructions

1шт.
