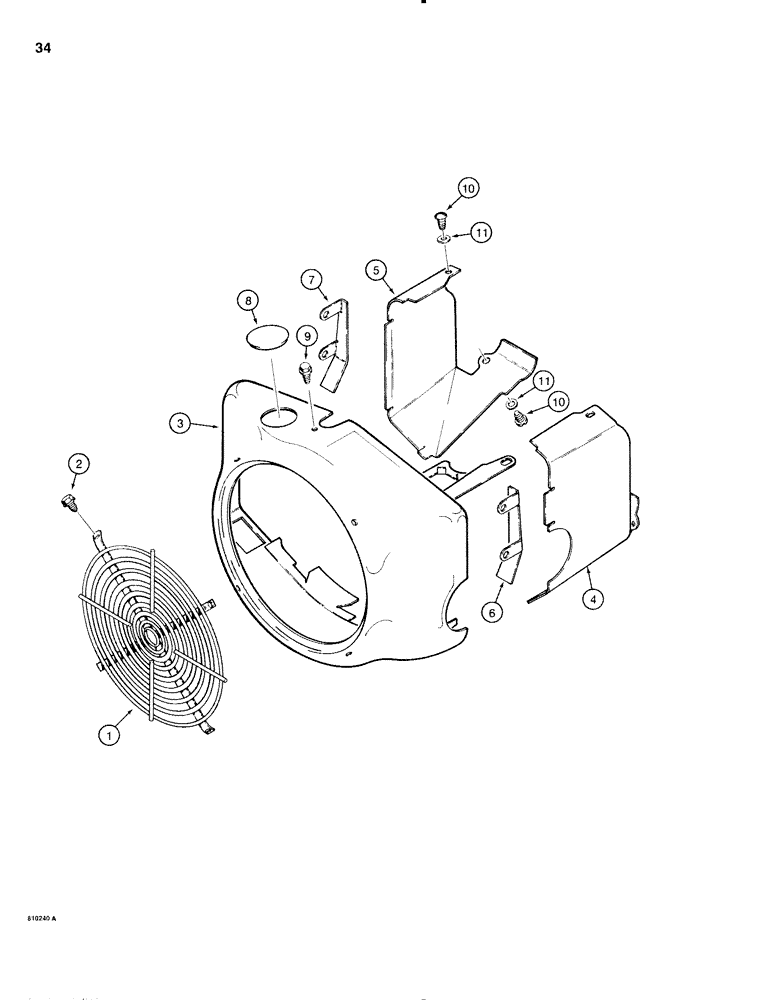

Запчасти Case IH 1816C (034) - ENGINE AIR HOUSING AND FLYWHEEL GUARD (02) - ENGINE

1

N7442

GUARD

- flywheel

1шт.

2

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2 bolts are not used when muffler braces are used, see Fig. 012 Hex Flg, 1/4"-20 x 1/2", Serr

4шт.

3

N7415

HOUSING - flywheel, rear, used on models with D91863 engine

1шт.

3

N13747

HOUSING

- flywheel, rear, used on models with D132226 engine

1шт.

4

N7416

HOUSING - air, right-hand, used on models with D91863 engine

1шт.

4

N13749

HOUSING

- air, right-hand, used on models with D132226 engine

1шт.

5

N9654

HOUSING

- air, left-hand, used on models with D91863 engine

1шт.

5

N13748

HOUSING

- air, left-hand, used on models with D132226 engine

1шт.

6

N7417

BAFFLE ASSY.

BAFFLE - cylinder head, right-hand

1шт.

7

N7418

BAFFLE ASSY.

BAFFLE - cylinder head, left-hand

1шт.

8

N7419

BUTTON

PLUG - blower housing hole

1шт.

9

163-22

SCREW,Hex, 1/4" - 20 x 1/2"

MACHINE SCREW - hex head, 1/4"-20 NC x 1/2"

3шт.

10

187-1147

SELF-TAP SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

SCREW - self-tapping, 1/4"-20 NC x 5/8"

4шт.

11

195-102

WASHER,1/4"

- flat, , special 1/4"

4шт.
