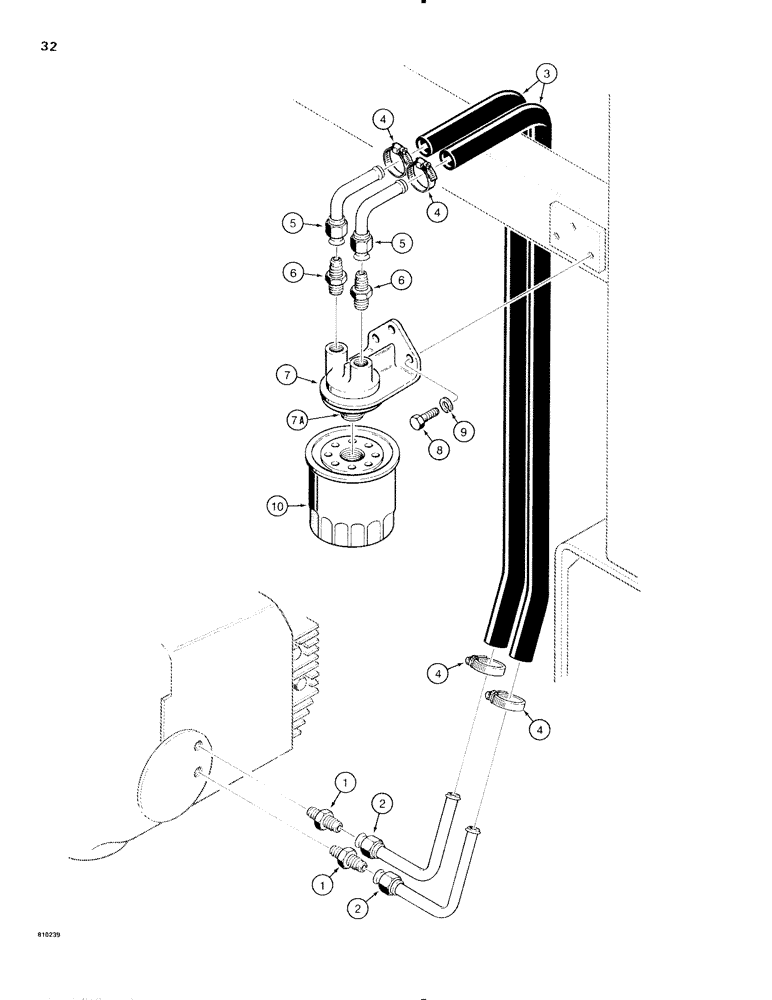

Запчасти Case IH 1816C (032) - ENGINE OIL FILTER AND LINES (02) - ENGINE

1

218-455

HYD CONNECTOR,3/4" - 16 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - tubes to engine

2шт.

See Fig. 30 for attaching engine parts.

1шт.

2

D93591

TUBE,0.5" OD x 4.5, 3.95" L

- from engine

2шт.

3

D65486

HOSE

- engine to filter, 1/2" ID (13 mm) x 26" (660 mm) long

2шт.

4

214-252

HOSE CLAMP,#08, 0.5" - 0.91", Type F Worm

CLAMP - hose

4шт.

5

D93660

TUBE,0.5" OD x 2.4, 2.37" L

- hose to filter adapter

2шт.

6

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - tubes to filter head

2шт.

7

D120904

FITTING

HEAD - filter, Includes: Ref. 7A

1шт.

7a

D120903

FITTING

NIPPLE - filter attaching

1шт.

8

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

10

D62845

ENGINE OIL FILTER

FILTER - engine oil

1шт.
