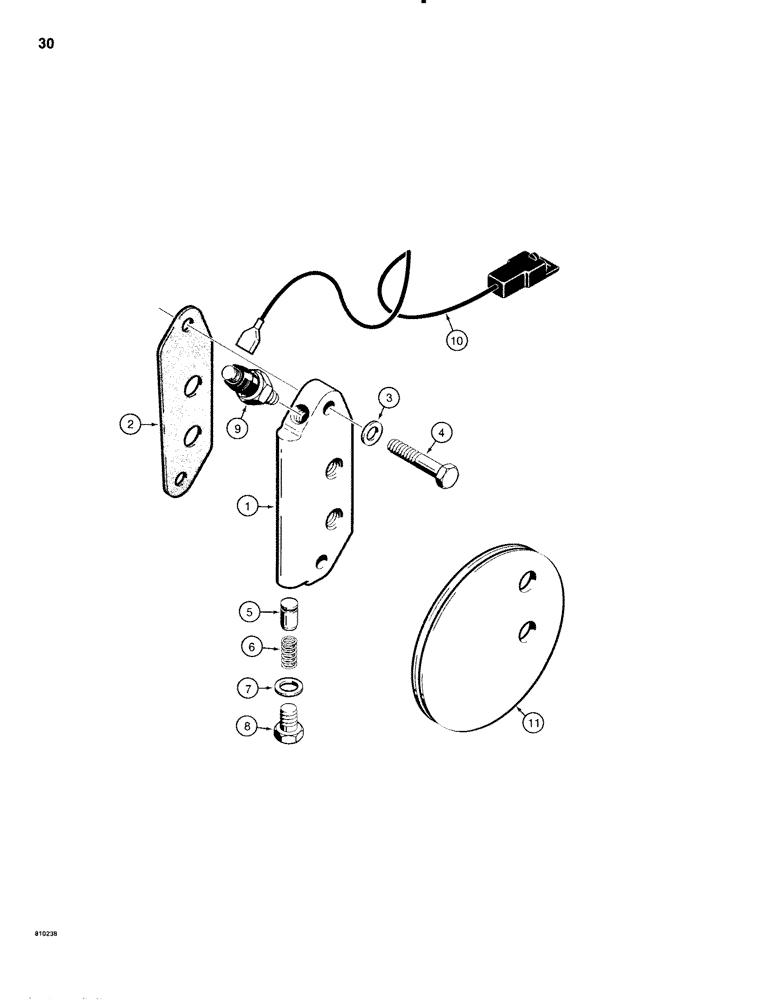

Запчасти Case IH 1816C (030) - ENGINE OIL FILTER LINE ADAPTER (02) - ENGINE

1

N7436

ADAPTER

- for remote oil filter

1шт.

2

N7437

GASKET

- adapter

1шт.

Part of Gasket Kit, P/N N7465

1шт.

3

N9602

WASHER

- copper

2шт.

4

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

5

N9599

PIN

POPPET - relief valve

1шт.

6

N9598

SPRING

- relief valve

1шт.

7

N9614

WASHER

- copper, relief valve

1шт.

8

114-210

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5, Full Thd

- hex head, 3/8"-24 NF x 1/2", plated

1шт.

9

N7439

SWITCH

SENDER - oil pressure buzzer

1шт.

10

N7440

ELECTRICAL WIRE

WIRE - sender

1шт.

11

N7438

GROMMET

- rubber, cover

1шт.

N7465

GASKET KIT

GASKET KIT - engine overhaul, Includes: Ref. 2 on this figure and other gaskets shown on Figs. 12, 16, 18, 26, 28, 40, 42 and 46

1шт.
