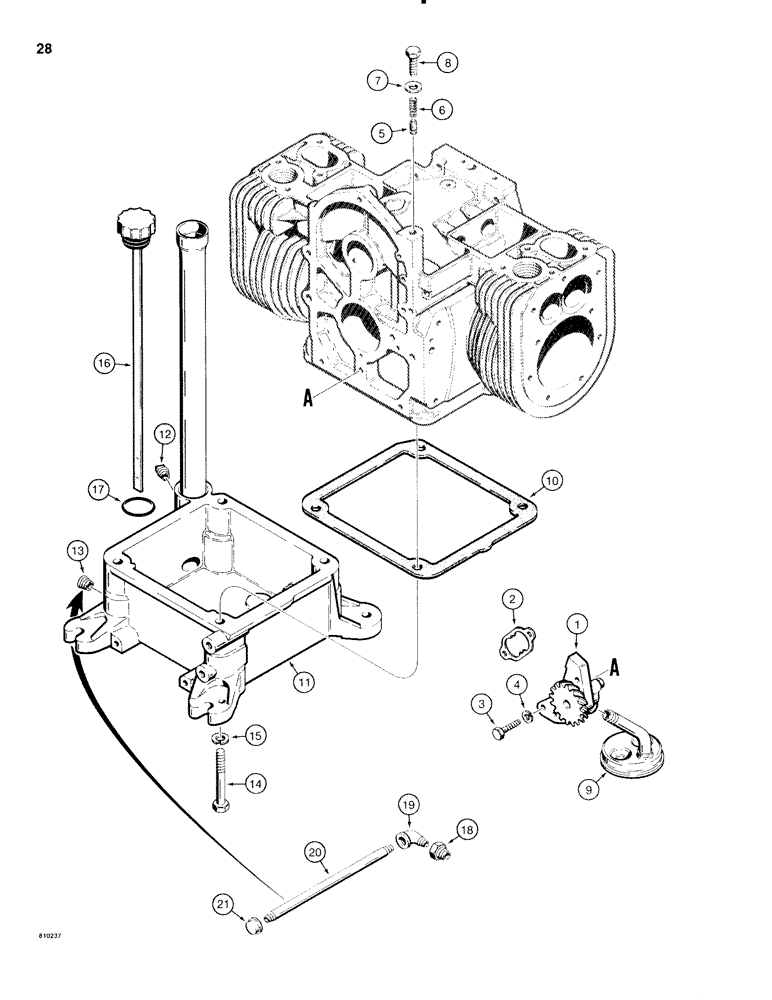

Запчасти Case IH 1816C (028) - ENGINE OIL PUMP AND OIL PAN (02) - ENGINE

1

N9600

PUMP, ENGINE OIL

PUMP - engine oil

1шт.

2

N9601

GASKET

GASKET - engine oil pump

1шт.

Part of Gasket Kit, P/N N7465

1шт.

3

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

N9599

PIN

POPPET - relief valve

1шт.

6

N9598

SPRING

- relief valve

1шт.

7

N9614

WASHER

- copper, relief valve

1шт.

8

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- hex head, 3/8"-24 NF x 1"

1шт.

9

N9627

STRAINER ASSY.

CUP - oil suction, with screen and pipe

1шт.

10

N9597

GASKET

- oil pan

1шт.

Part of Gasket Kit, P/N N7465

1шт.

N7420

BASE

OIL PAN ASSEMBLY - engine, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

OIL PAN - engine

1шт.

12

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - square head, 1/2" NPT

1шт.

13

221-844

PLUG,Hex Soc, 1/2"-14

- hex socket head, 1/2" NPT, for engine shipping purposes only, see Ref. 18 - 21

1шт.

14

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

4шт.

15

92-6

LOCK WASHER,3/8"

4шт.

N7421

DIPSTICK

ASSEMBLY - engine, Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

DIPSTICK - engine, includes cap

1шт.

17

N7422

O-RING,1" ID x 1-1/4" OD x 1/8"

- oil fill cap

1шт.

18

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducing, 1/2" NPT to 3/4" NPT

1шт.

Ref. 18 - 21 are not part of the complete engine as shipped for the factory.

1шт.

19

221-413

ELBOW,90 Degree, 3/8"-18, NPT

STREET ELBOW - 90 degree, 3/8" NPT

1шт.

Ref. 18 - 21 are not part of the complete engine as shipped for the factory.

1шт.

20

221-174

PIPE,Nipple, 3/8" NPT x 7"

NIPPLE - 3/8" NPT x 7", oil drain pipe

1шт.

Ref. 18 - 21 are not part of the complete engine as shipped for the factory.

1шт.

21

221-524

CAP,3/8" NPT

- oil drain, 3/8" NPT

1шт.

Ref. 18 - 21 are not part of the complete engine as shipped for the factory.

1шт.

N7465

GASKET KIT

GASKET KIT - engine overhaul, Includes: Ref. 2 and 10 on this figure and other gaskets shown on Figs. 012, 016, 018, 026, 030, 040, 042, and 046

1шт.

Items 18 - 21 are not part of the complete engine as shipped for the factory.

1шт.
