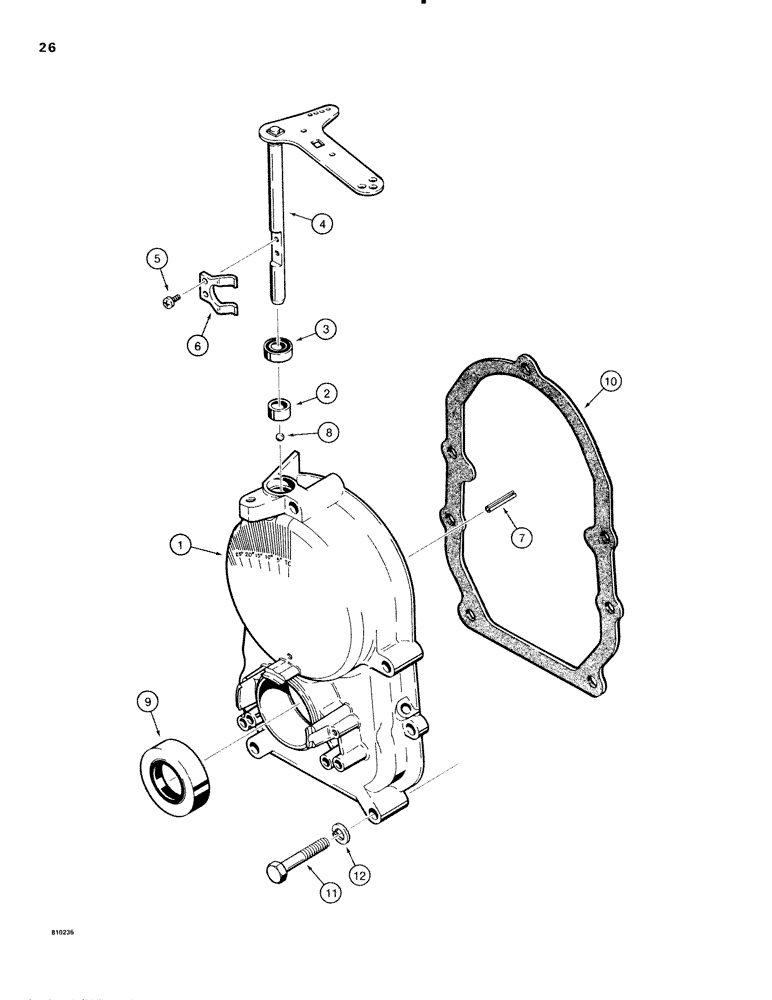

Запчасти Case IH 1816C (026) - ENGINE GEAR COVER (02) - ENGINE

N9624

GEAR

COVER ASSEMBLY - engine, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - engine

1шт.

2

N9591

BUSHING

Governor shaft

1шт.

3

N9594

OIL SEAL

- governor shaft

1шт.

Part of Gasket Kit, P/N N7465

1шт.

4

N9625

SHAFT

AND ARM - governor

1шт.

5

182-84

SCREW,Slotted Pan Hd, #8-32 x 3/8"

MACHINE SCREW - pan head, No. 8-32 NC x 3/8"

2шт.

6

N9592

FORK

YOKE - governor shaft

1шт.

7

N9593

PIN

DOWEL PIN - governor cup stop

1шт.

8

211-204

BALL

- 3/16", grade 25, chrome alloy steel

1шт.

9

N9595

OIL SEAL

- crankshaft

1шт.

Part of Gasket Kit, P/N N7465

1шт.

10

N9596

GASKET

- cover

1шт.

Part of Gasket Kit, P/N N7465

1шт.

11

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4шт.

11

26-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 8

- hex head, 5/16"-18 NC x 2-3/4", grade 8

1шт.

12

N9602

WASHER

- copper, cover bolts

5шт.

N7465

GASKET KIT

GASKET KIT - engine overhaul, Includes: Ref. 3, 9, and 10 on this figure and other gaskets shown on Figs. 012, 016, 018, 028, 030, 040, 042 and 046

1шт.
