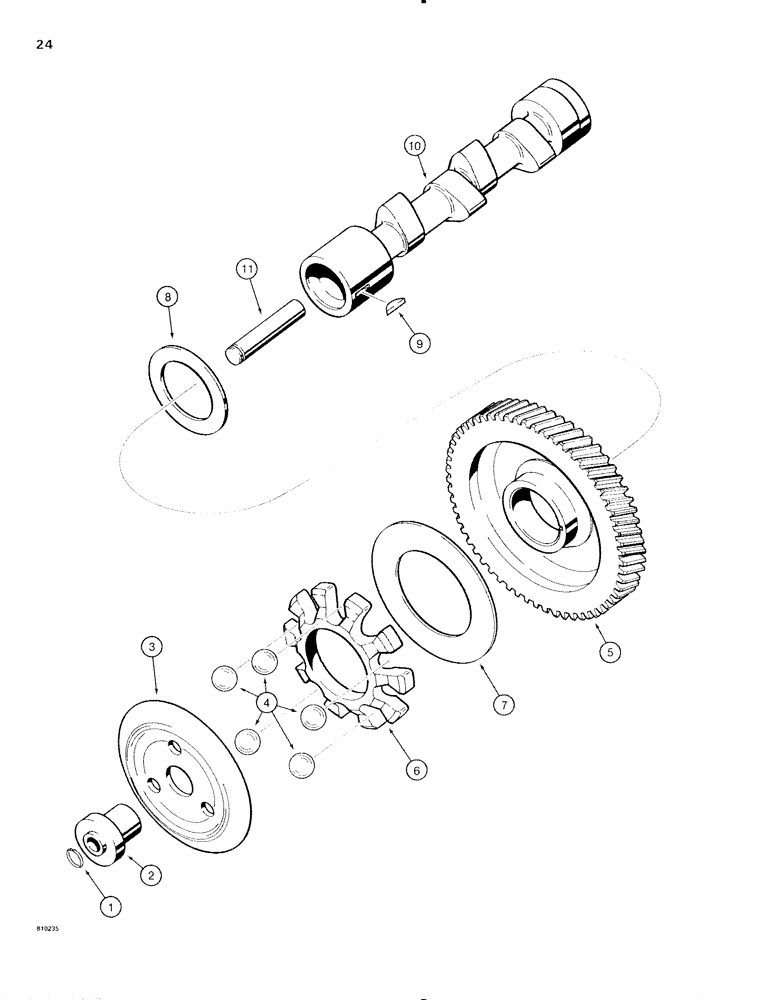

Запчасти Case IH 1816C (024) - ENGINE CAMSHAFT (02) - ENGINE

1

N9550

RING, SNAP

RING - retaining

1шт.

2

N9632

HUB

- governor cup

1шт.

3

N9633

PLATE

CUP - governor

1шт.

4

211-216

BALL,9/16" Dia

- 9/16", grade 25, chrome alloy steel

5шт.

N9615

WHEEL GEAR

GEAR ASSEMBLY - camshaft, Includes: Ref. 5, 6 and 7

1шт.

5

NSS

NOT SOLD SEPARAT

GEAR - camshaft

1шт.

6

N9617

SPACER

- governor ball

1шт.

7

N9618

LARGE PLATE

PLATE - governor ball

1шт.

8

N7411

RING

WASHER - thrust

1шт.

9

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

(No. 404), Camshaft to gear #3, 1/8" x 1/2"

1шт.

N9626

CAMSHAFT

ASSEMBLY - engine, Includes: Ref. 10

1шт.

10

NSS

NOT SOLD SEPARAT

CAMSHAFT - engine

1шт.
