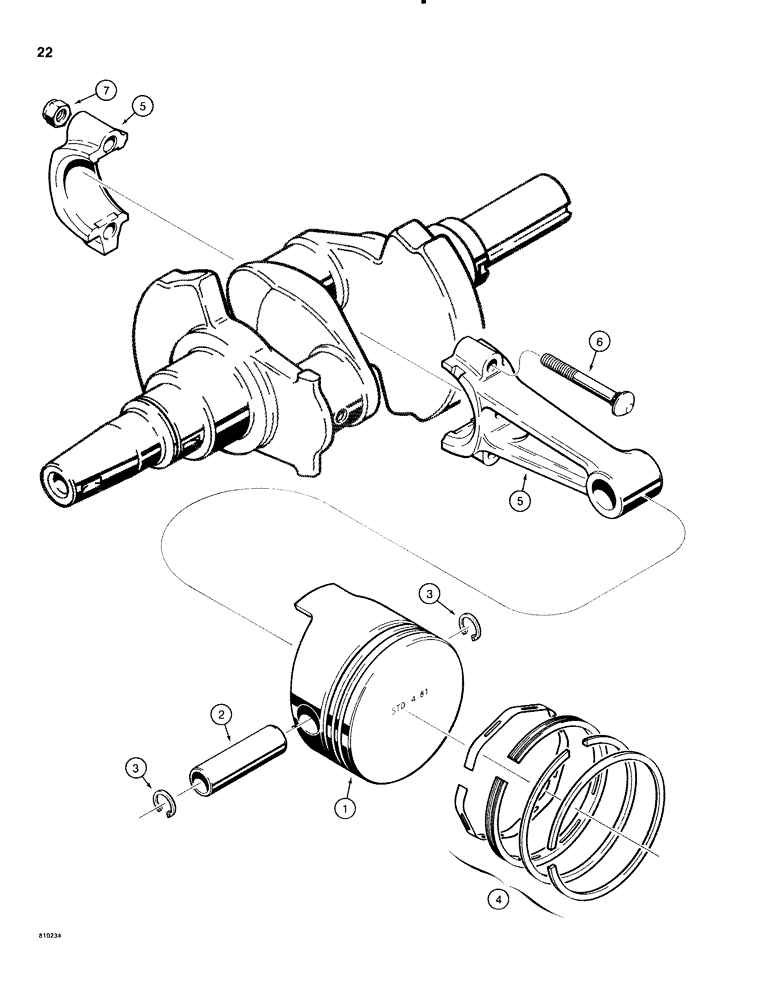

Запчасти Case IH 1816C (022) - ENGINE PISTONS AND CONNECTING RODS (02) - ENGINE

N9634

PISTON ASSY.

PISTON ASSEMBLY - standard size, Includes: Ref. 1 - 3

2шт.

N9635

PISTON ASSY.

PISTON ASSEMBLY - 005" (0.13 mm) oversize, Includes: Ref. 1 - 3

2шт.

N9650

PISTON ASSY.

PISTON ASSEMBLY - 010" (0.26 mm) oversize, Includes: Ref. 1 - 3

2шт.

N9651

PISTON ASSY.

PISTON ASSEMBLY - 020" (0.50 mm) oversize, Includes: Ref. 1 - 3

2шт.

N9652

PISTON ASSY.

PISTON ASSEMBLY - 030" (0.76 mm) oversize, Includes: Ref. 1 - 3

2шт.

N9653

PISTON ASSY.

PISTON ASSEMBLY - 040" (1.02 mm) oversize, Includes: Ref. 1 - 3

2шт.

1

NSS

NOT SOLD SEPARAT

PISTON - engine

1шт.

2

N9555

PISTON PIN

1шт.

3

N9556

RING, SNAP

RING - piston pin retaining

2шт.

4

N9636

PISTON RING SET

- standard size

2шт.

4

N9637

PISTON RING SET

- 005" (0.13 mm) oversize

2шт.

4

N9638

PISTON RING SET

- 010" (0.26 mm) oversize

2шт.

4

N9639

PISTON RING SET

- 020" (0.50 mm) oversize

2шт.

4

N9640

PISTON RING SET

- 030" (0.76 mm) oversize

2шт.

4

N9641

PISTON RING SET

- 040" (1.02 mm) oversize

2шт.

N7407

ROD

CONNECTING ROD ASSEMBLY - standard size, Includes: Ref. 5 and 6

2шт.

N7408

ROD

CONNECTING ROD ASSEMBLY, 010" (0.26 mm) undersize, Includes: Ref. 5 and 6

2шт.

N7409

ROD

CONNECTING ROD ASSEMBLY, 020" (0.50 mm) undersize, Includes: Ref. 5 and 6

2шт.

N7410

ROD

CONNECTING ROD ASSEMBLY, 030" (0.76 mm) undersize, Includes: Ref. 5 and 6

2шт.

5

NSS

NOT SOLD SEPARAT

CONNECTING ROD ASSEMBLY - engine, includes rod and cap

1шт.

6

N9648

BOLT

- special

2шт.

7

131-527

LOCK NUT,5/16"-24

NUT - hex, self-locking, 5/16"

2шт.
