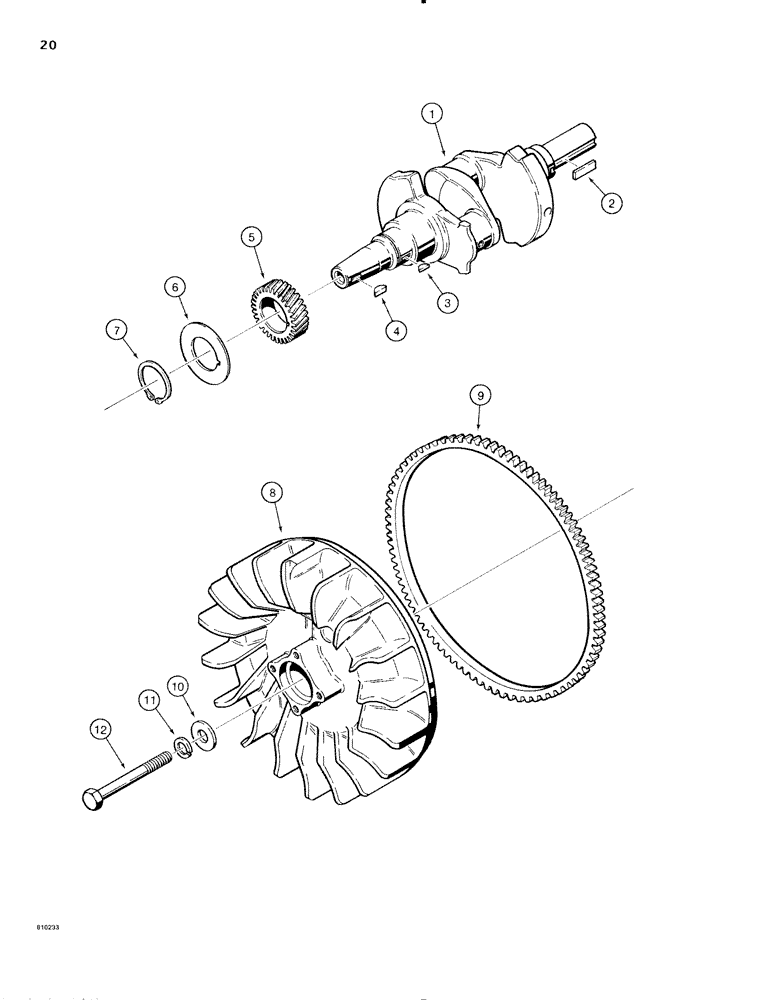

Запчасти Case IH 1816C (020) - ENGINE CRANKSHAFT AND FLYWHEEL (02) - ENGINE

1

N7412

CRANKSHAFT

- engine

1шт.

2

T25070

KEY

- square

1шт.

3

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

(No. 404), Gear #3, 1/8" x 1/2"

1шт.

4

126-17

WOODRUFF KEY,#91, 1/4" x 3/4"

(No. 806), Flywheel #91, 1/4" x 3/4"

1шт.

5

N9616

WHEEL GEAR

GEAR - crankshaft

1шт.

6

N9549

DISC

WASHER - gear retaining

1шт.

7

R13338

SNAP RING,#150, Ext

Ring, Snap, , gear #150, Ext

1шт.

N9642

FLYWHEEL

ASSEMBLY - engine, for alternator see Fig. 044, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

FLYWHEEL - engine

1шт.

9

N9551

RING, FLYWHEEL

RING GEAR - flywheel

1шт.

10

N9590

WASHER

- flat, flywheel retainer

1шт.

11

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

12

113-321

BOLT,Hex, 7/16" - 14 x 4", Gr 5

1шт.

232799A1

KIT

key

1шт.

For the 1998814C2 Engine 06/13/96

1шт.
