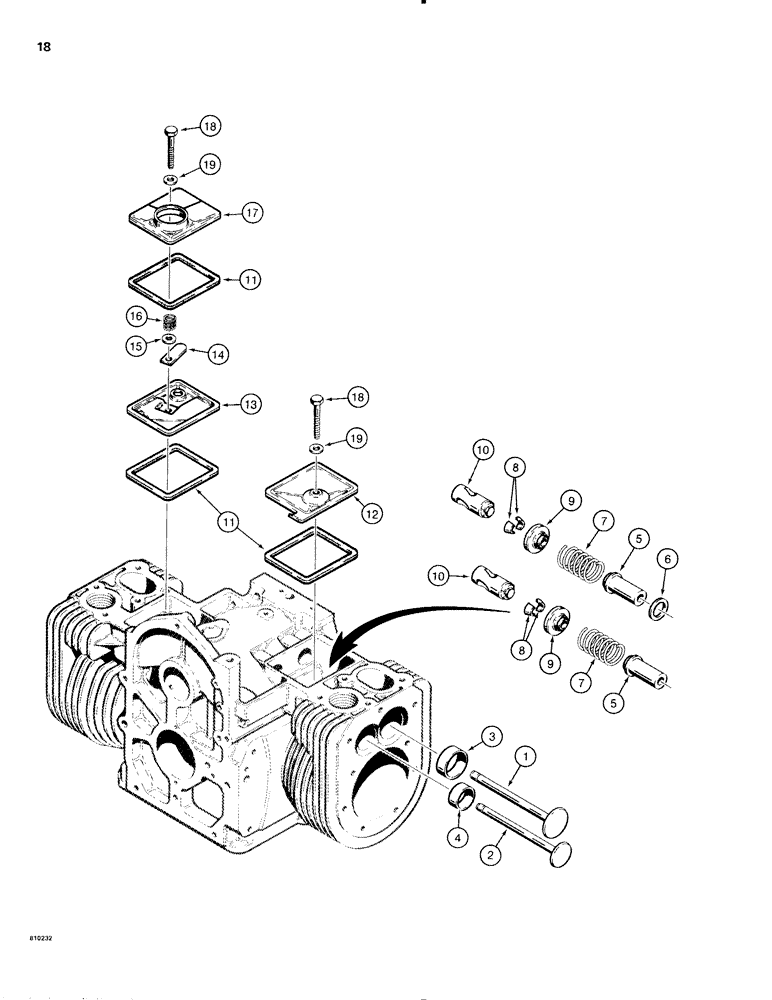

Запчасти Case IH 1816C (018) - ENGINE VALVE MECHANISM (02) - ENGINE

1

N7399

VALVE

INTAKE VALVE - engine

2шт.

2

N7400

VALVE

EXHAUST VALVE - engine

2шт.

3

N9576

SEAT, VALVE

INSERT - intake valve seat, standard size

2шт.

Part of N7391 Block Assembly. See Fig. 016.

1шт.

3

N9577

BUSHING

INSERT - intake valve seat, 0.002" (0.06 mm) oversize

2шт.

Part of N7391 Block Assembly. See Fig. 016.

1шт.

3

N9578

SEAT, VALVE

INSERT - intake valve seat, 0.005" (0.13 mm) oversize

2шт.

Part of N7391 Block Assembly. See Fig. 016.

1шт.

3

N9579

BUSHING

INSERT - intake valve seat, 0.010" (0.26 mm) oversize

2шт.

Part of N7391 Block Assembly. See Fig. 016.

1шт.

3

N9580

BUSHING

INSERT - intake valve seat, 0.025" (0.64 mm) oversize

2шт.

Part of N7391 Block Assembly. See Fig. 016.

1шт.

4

N7392

SEAT, VALVE

INSERT - exhaust valve seat, standard size

2шт.

Part of N7391 Block Assembly. See Fig. 016.

1шт.

4

N7393

BUSHING

INSERT - exhaust valve seat, 0.002" (0.06 mm) oversize

2шт.

Part of N7391 Block Assembly. See Fig. 016.

1шт.

4

N7394

BUSHING

INSERT - exhaust valve seat, 0.005" (0.13 mm) oversize

2шт.

Part of N7391 Block Assembly. See Fig. 016.

1шт.

4

N7395

BUSHING

INSERT - exhaust valve seat, 0.010" (0.26 mm) oversize

2шт.

Part of N7391 Block Assembly. See Fig. 016.

1шт.

4

N7396

BUSHING

INSERT - exhaust valve seat, 0.025" (0.64 mm) oversize

2шт.

Part of N7391 Block Assembly. See Fig. 016.

1шт.

5

N9581

GUIDE

- valve, exhaust

2шт.

Part of N7391 Block Assembly. See Fig. 016.

1шт.

5

N13752

GUIDE

- valve, intake

2шт.

Part of N7391 Block Assembly. See Fig. 016.

1шт.

6

N9589

GASKET

- intake valve guide

2шт.

Part of N7391 Block Assembly. See Fig. 016.

1шт.

Part of Gasket Kit, P/N N7465, See Fig. 012

1шт.

7

N9582

SPRING

- valve

4шт.

8

N9583

LOCK

- valve spring

8шт.

9

N7404

CAP

ROTATOR - valve

4шт.

10

N9573

TAPPET

- valve, standard size

4шт.

10

N9613

TAPPET

- valve, 0.002" (0.06 mm) oversize

4шт.

10

N9574

TAPPET

- valve, 0.005" (0.13 mm) oversize

4шт.

11

N9563

GASKET

- valve cover

3шт.

Part of Gasket Kit, P/N N7465, See Fig. 012

1шт.

12

N9562

COVER

- valve, right-hand

1шт.

13

N9559

SHEET

BAFFLE - left-hand valve cover

1шт.

14

N9558

VALVE POPPET

VALVE - breather

1шт.

15

195-2010

WASHER,.266" x 5/8" x .065"

- breather valve

1шт.

16

N9557

SPRING

- breather valve

1шт.

17

N9644

COVER

- valve, left-hand

1шт.

Ref #17A - 232813A1 Cover for the 1998814C2 Engine 06/13/96

1шт.

18

113-132

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex head, 1/4"-20 NC x 1-3/4", plated

2шт.

19

N9560

WASHER

- copper

2шт.
