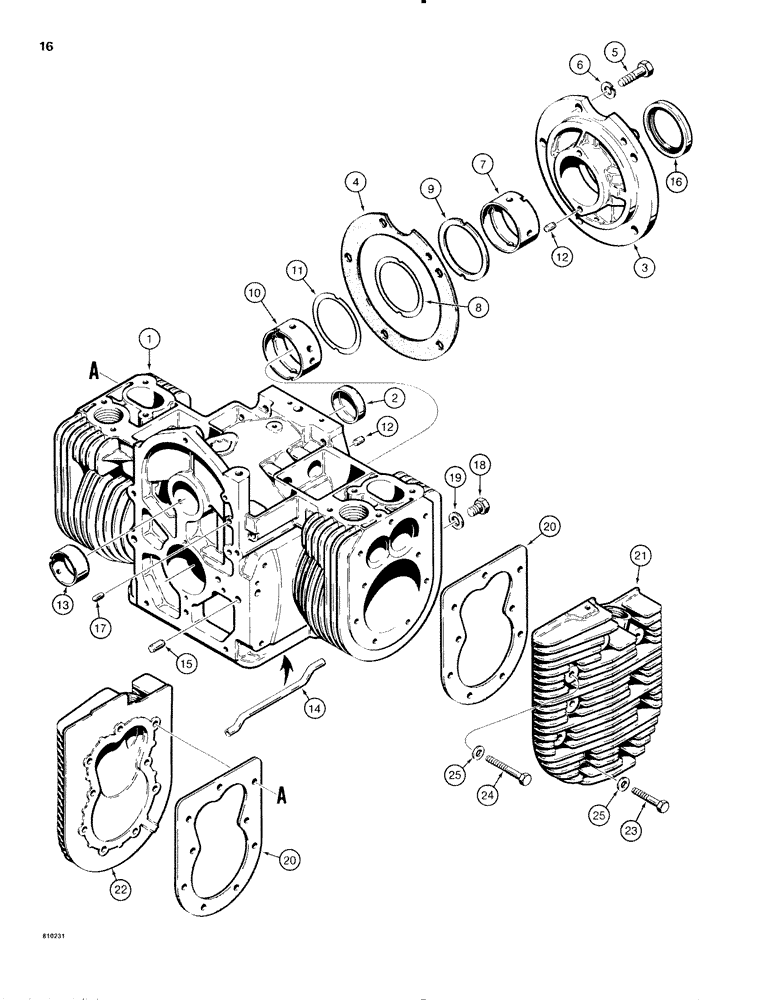

Запчасти Case IH 1816C (016) - ENGINE BLOCK AND CYLINDER HEADS (02) - ENGINE

N7391

BLOCK

ASSEMBLY - engine, Includes: Ref. 1-4, 7-15, also includes Ref.3 through 6 on Fig. 18

1шт.

1

NSS

NOT SOLD SEPARAT

BLOCK - engine

1шт.

2

41-26

PLUG

- expansion, 1-5/8"

1шт.

3

N9568

LARGE PLATE

PLATE - crankshaft bearing

1шт.

4

N9567

GASKET

-, Serial Range: plate-block

1шт.

Part of Gasket Kit, P/N N7465

1шт.

Ref #4A - 232796A1 Gasket for the 1998814C2 Engine 06/13/96

1шт.

5

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

5шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

7

N9619

CRANKSHAFT BEARING

MAIN BEARING - plate end, standard size, Includes: Ref. 8

1шт.

7

N9620

CRANKSHAFT BEARING

MAIN BEARING - plate end, 0.002" (0.06 mm) undersize, Includes: Ref. 8

1шт.

7

N9621

CRANKSHAFT BEARING

MAIN BEARING - plate end, 0.010" (0.26 mm) undersize, Includes: Ref. 8

1шт.

7

N9622

CRANKSHAFT BEARING

MAIN BEARING - plate end, 0.020" (0.50 mm) undersize, Includes: Ref. 8

1шт.

7

N9623

CRANKSHAFT BEARING

MAIN BEARING - plate end, 0.030" (0.76 mm) undersize, Includes: Ref. 8

1шт.

8

N9566

WASHER

THRUST WASHER - included with Ref. 7

1шт.

9

N9564

WASHER

SHIM - main bearing

1шт.

10

N9584

CRANKSHAFT BEARING

MAIN BEARING - flywheel end, standard size, Includes: Ref. 11

1шт.

10

N9585

CRANKSHAFT BEARING

MAIN BEARING - flywheel end, 0.002" (0.06 mm) undersize, Includes: Ref. 11

1шт.

10

N9586

CRANKSHAFT BEARING

MAIN BEARING - flywheel end, 0.010" (0.26 mm) undersize, Includes: Ref. 11

1шт.

10

N9587

CRANKSHAFT BEARING

MAIN BEARING - flywheel end, 0.020" (0.50 mm) undersize, Includes: Ref. 11

1шт.

10

N9588

CRANKSHAFT BEARING

MAIN BEARING - flywheel end, 0.030" (0.76 mm) undersize, Includes: Ref. 11

1шт.

11

N9566

WASHER

THRUST WASHER - included with Ref. 10

1шт.

12

N9571

SCREW,#8 x 11/32"

drive, bearing stop

4шт.

13

N9569

CAMSHAFT BEARING,1.50" OD x 0.31"

BEARING - camshaft

2шт.

14

N9643

TUBE,5.56, 0.12" L

- oil

1шт.

Ref #14A - 232797A1 Tube, Oil for the 1998814C2 Engine 06/13/96

1шт.

15

N7398

PIN

- gear cover alignment

2шт.

16

N9570

OIL SEAL

- crankshaft bearing, plate end

1шт.

Part of Gasket Kit, P/N N7465

1шт.

17

N7405

PLUG

- core hole

1шт.

18

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

Ref #18A - 232798A1 Stud for the 1998814C2 Engine 06/13/96

1шт.

19

N9614

WASHER

- copper

2шт.

Ref #19 N9416 is a copper washer if looking for the seal N9570 per notes in hard copy 2/00

1шт.

20

N7478

GASKET

- cylinder head

2шт.

Part of Gasket Kit, P/N N7465

1шт.

21

N7402

HEAD

CYLINDER HEAD - engine, right-hand

1шт.

22

N7403

HEAD (CYLINDER)

CYLINDER HEAD - engine, left-hand

1шт.

23

26-526

BOLT,Hex, 5/16" - 18 x 1-5/8", Gr 8

- hex head, 5/16"-18 NC x 1-5/8", grade 8

12шт.

24

26-532

BOLT,Hex, 5/16" - 18 x 2", Gr 8

- hex head, 5/16"-18 NC x 2", grade 8

6шт.

25

N9561

WASHER

- special, cylinder head bolts

18шт.

N7465

GASKET KIT

GASKET KIT - engine overhaul, Includes: Ref. 4, 16, and 20 on this figure and other gaskets shown on Fig. 012, 018, 026, 028, 030, 040, 042 and 046

1шт.
