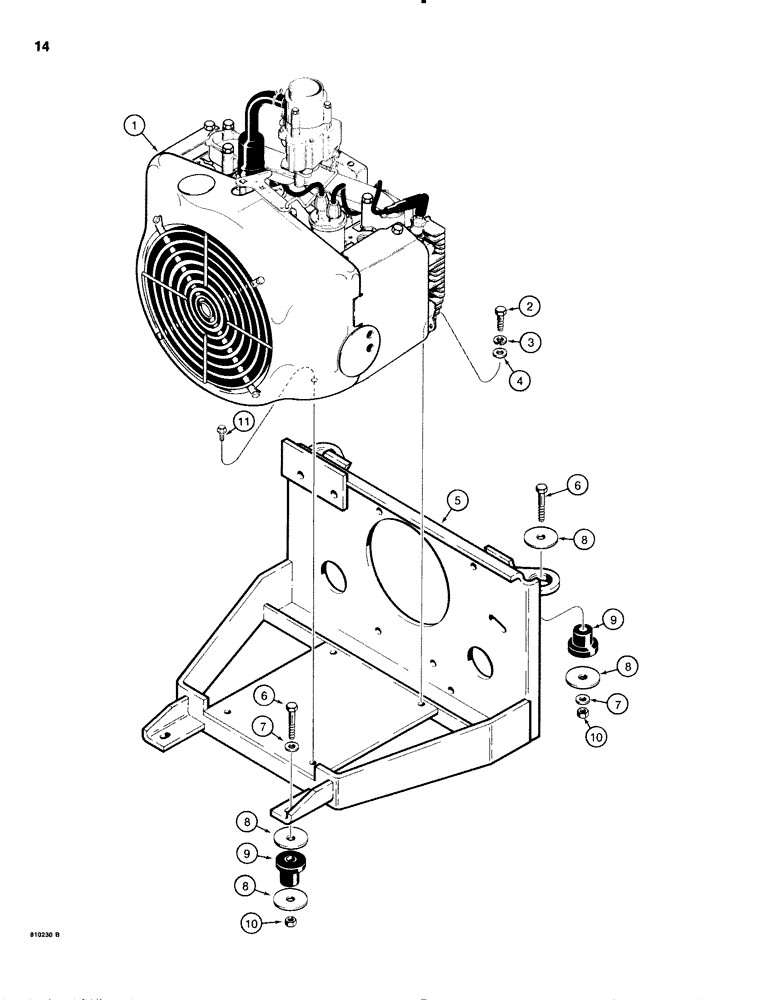

Запчасти Case IH 1816C (014) - ENGINE MOUNTING (02) - ENGINE

1

104300A1

ENGINE ASSEMBLY

ENGINE - complete, component parts shown on pages 17-31, 35, 37 and 39-49 (Replaces D91863)

1шт.

Ref #1 - 104300A1 Engine Replacement Kit includes the 1998824C1 Engine 06/13/96 Kit now individual parts, some are no longer available. 8/7/01

1шт.

1

D132226

ENGINE ASSEMBLY

ENGINE - complete, component parts shown on pages 17-31, 35, 37

1шт.

2

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8"-16 NC x 1-1/4", plated

2шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

195-25

WASHER,3/8"

2шт.

5

D91525

PLATE ASSY.

FRAME - engine and pump mounting

1шт.

Ref # 5 no longer available. 8/7/01

1шт.

6

113-336

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

- hex head, 7/16"-14 NC x 2-1/4", plated

4шт.

7

195-2042

WASHER,.469" x 1 1/2" x .134"

- flat, 7/16", special

4шт.

8

D75196

WASHER

- hardened

8шт.

9

D59838

MOUNTING PARTS

MOUNT - rubber

4шт.

10

131-653

NUT,7/16"-14, GB

- hex, self-locking, 7/16"-14 NC

4шт.

11

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

- hex flange head, self-locking, 3/8"-16 NC x 1-1/4"

2шт.
