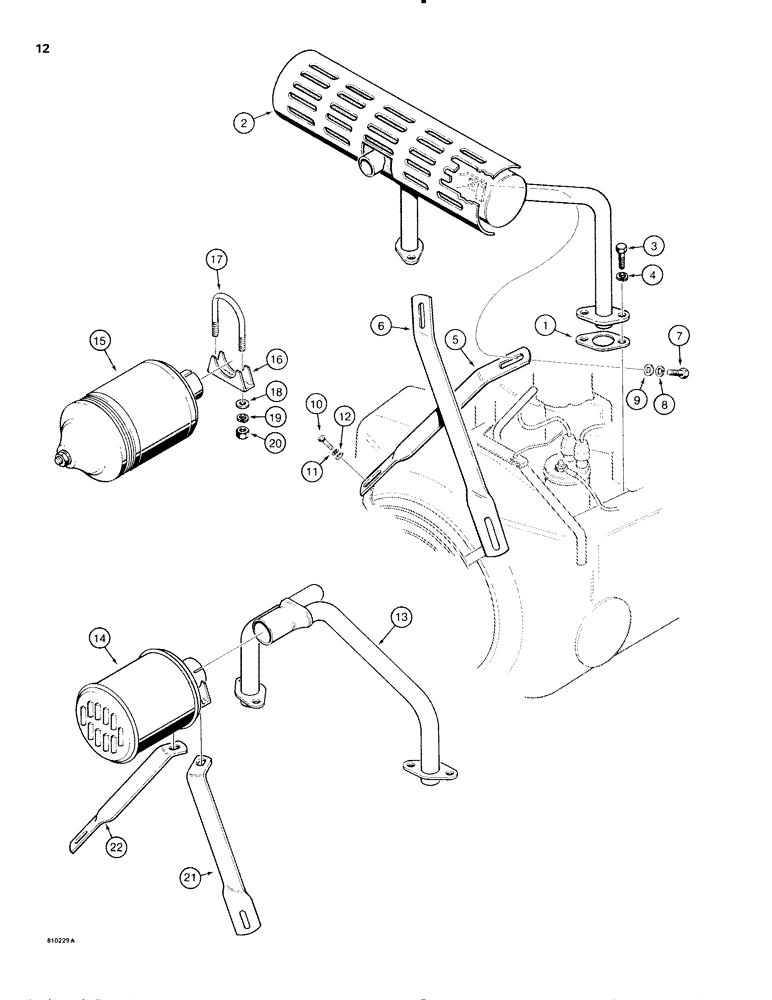

Запчасти Case IH 1816C (012) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

1

D128684

GASKET

- engine exhaust ports

2шт.

Part of Gasket Kit, P/N N7465

1шт.

2

D94433

MUFFLER

- includes exhaust manifold, if used, for other muffler and manifold option see Ref. 13-15

1шт.

3

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

5

D120381

SUPPORT

BRACE - from right-hand side of D94433 muffler

1шт.

6

D120382

SUPPORT

BRACE - from left-hand side of D94433 muffler

1шт.

7

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

9

195-103

WASHER,5/16"

- flat, , plated 5/16"

2шт.

10

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

11

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

12

195-102

WASHER,1/4"

- flat, , plated 1/4"

2шт.

13

D120315

MANIFOLD

- engine exhaust, used with Ref.14 or 15

1шт.

14

D121767

MUFFLER

- engine exhaust, if used, includes Ref. 16

1шт.

15

D120320

MUFFLER

- spark arresting, if used

1шт.

16

D120712

SADDLE

CLAMP - muffler

1шт.

17

D120711

U-BOLT

- muffler retaining

1шт.

18

195-103

WASHER,5/16"

- flat, 5/16"

2шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

20

9635082

NUT,5/16" - 18, Gr 5

2шт.

21

D120716

SUPPORT

BRACE - from right-hand side of D121767 or D120320 muffler

1шт.

22

D120715

SUPPORT

BRACE - from left-hand side of D121767 or D120320 muffler

1шт.

N7465

GASKET KIT

GASKET KIT - engine overhaul, Includes: Ref. 1 on this figure and other gaskets shown on Figs.016, 018, 026, 028, 030, 040, 042 and 046

1шт.
