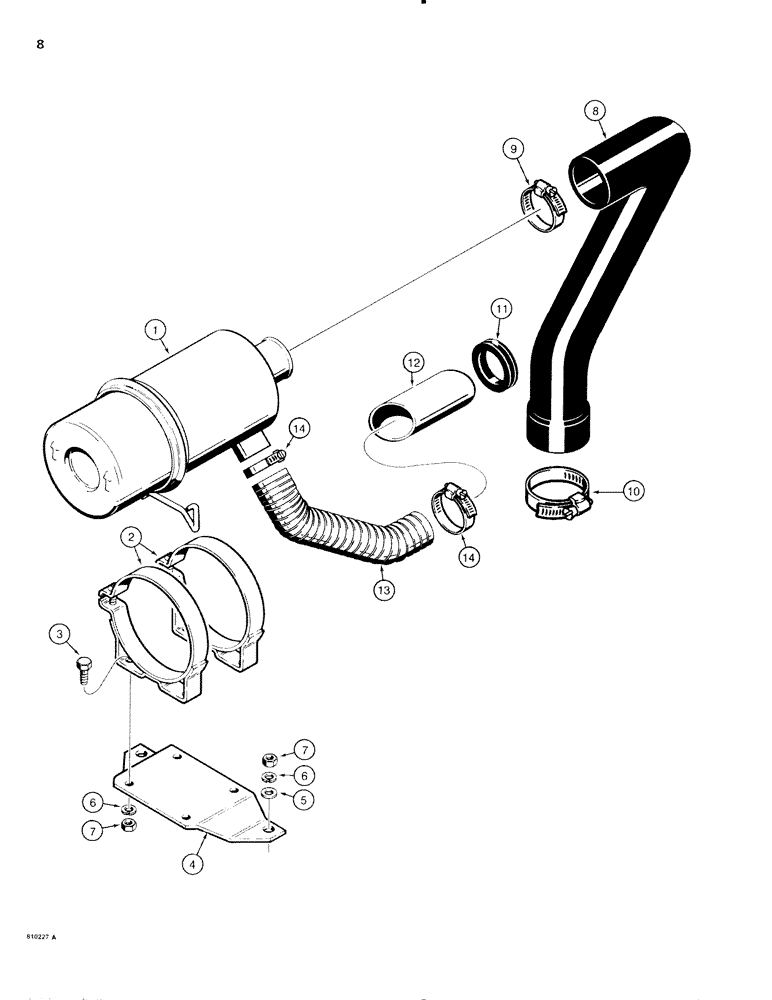

Запчасти Case IH 1816C (008) - AIR CLEANER AND AIR INTAKE PARTS (02) - ENGINE

1

D120541

AIR CLEANER

- engine, parts list Fig. 010

1шт.

2

D27245

COLLAR CLAMP

BAND - air cleaner mounting

2шт.

3

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

4

D120344

BRACKET

- air cleaner mounting

1шт.

5

195-21

WASHER,5/16"

- flat, 5/16"

2шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

7

9635082

NUT,5/16" - 18, Gr 5

6шт.

8

D121241

INTAKE AIR HOSE,51.60 mm ID x 292.10 mm, SAE J20, SAE 20R4 Class D2

- Rubber, Air Cleaner Outlet 51.60 mm ID x 292.10 mm, SAE J20, SAE 20R4 Class D2

1шт.

For carburetor and intake manifold parts see Figs. 040 and 042.

1шт.

9

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

at air cleaner #28, 1.31/2.25 Type F Worm

1шт.

10

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

at intake manifold #36, 1.81/2.75 Type F Worm

1шт.

11

49564

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

- sleeve

1шт.

12

D121501

TUBE

SLEEVE - air intake

1шт.

13

D121166

INTAKE AIR HOSE,431.80 mm

- Air Cleaner Intake 431.80 mm

1шт.

14

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

- tube #28, 1.31/2.25 Type F Worm

2шт.
