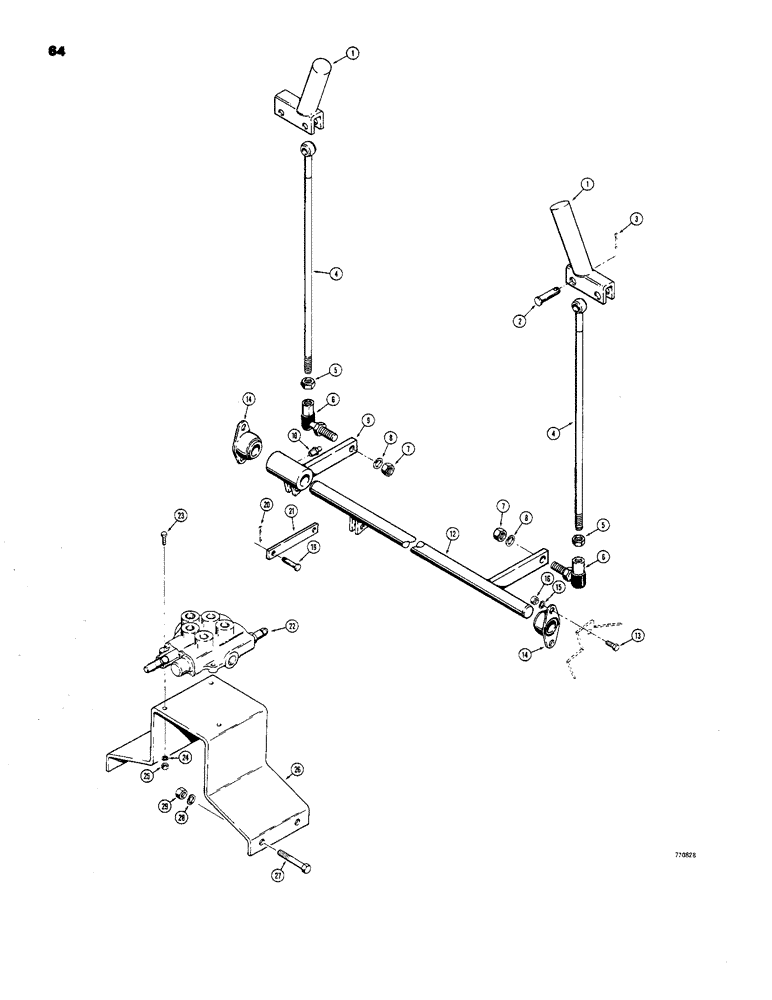

Запчасти Case IH 1816B (64) - LOADER LIFT AND BUCKET CONTROLS (90) - PLATFORM, CAB, BODYWORK AND DECALS

D56613

HANDLE

- control

2шт.

2

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

3

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

4

D57105

ROD

- control

2шт.

5

129-123

NUT,3/8"-24, G5

2шт.

6

D38296

JOINT

BALL JOINT - 3/8"

2шт.

7

129-123

NUT,3/8"-24, G5

2шт.

8

92-6

LOCK WASHER,3/8"

2шт.

9

D60064

DIPPER

BELLCRANK - left-hand

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

12

D60065

SHAFT

- control

1шт.

13

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

14

L48412

FLANGED BEARING

BEARING - shaft support

2шт.

15

92-6

LOCK WASHER,3/8"

4шт.

16

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

19

141-2

CLEVIS PIN,1/4" x .770"

- clevis, 1/4"

4шт.

20

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

4шт.

21

D60356

LEVER

LINK - at valve

2шт.

22

REF

INSTRUCTION

VALVE - hydraulic control, parts list Figure 74 or 76

1шт.

23

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex head, 1/4" - 20 NC x 1-1/4", plated

3шт.

24

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

25

25-104

NUT,1/4"-20, G5

3шт.

26

D60067

BRACKET

- valve mounting

1шт.

27

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

28

92-6

LOCK WASHER,3/8"

4шт.

29

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.
