Запчасти Case IH 1816B (90) - LOADER LIFT ARM FRAME AND TOOL TACH (82) - FRONT LOADER & BUCKET

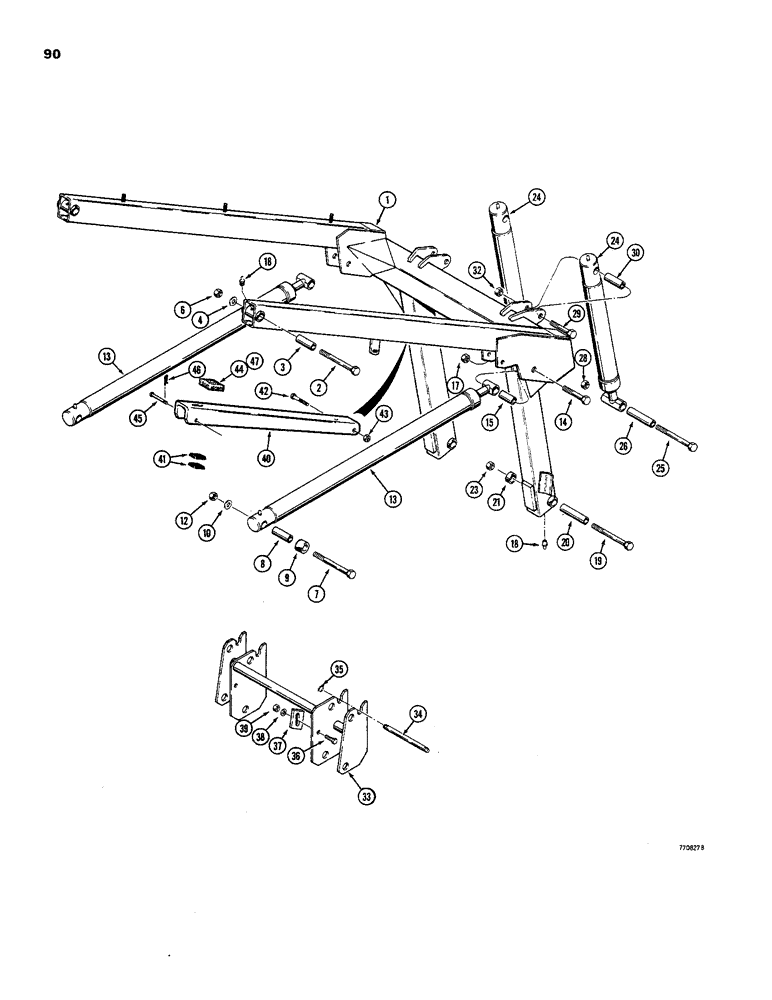

Схема запчастей Case IH 1816B - (90) - LOADER LIFT ARM FRAME AND TOOL TACH (82) - FRONT LOADER & BUCKET

Артикул

Название

Примечание

Количество

1

D90317

ARM

LOADER FRAME - lift, includes decal - Ref. 24 figure 102

1шт.

2

113-630

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex head, 5/8" - 11 NC x 6", plated

2шт.

3

D61551

BUSHING

- loader arm

2шт.

4

195-41

WASHER,5/8"

- flat, 5/8"

2шт.

6

131-1105

LOCK NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

2шт.

7

113-630

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex head, 5/8" - 11 NC x 6", plated

2шт.

8

D61551

BUSHING

- cylinder

2шт.

9

D75176

SPACER

- cylinder

2шт.

10

195-41

WASHER,5/8"

- flat, 5/8"

2шт.

12

131-1105

LOCK NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

2шт.

13

D63235

CYLINDER BLOCK

CYLINDER - lift, parts list Figure 82

2шт.

14

113-627

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

2шт.

15

D56655

BUSHING

- cylinder

2шт.

17

131-1105

LOCK NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

2шт.

18

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

GREASE FITTING - straight, 1/4" - 28 NF

4шт.

19

113-630

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex head, 5/8" - 11 NC x 6", plated

2шт.

20

D61478

BUSHING

- bucket

2шт.

21

75176

SPACER - bucket

2шт.

23

131-1105

LOCK NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

2шт.

24

D58574

CYLINDER BLOCK

CYLINDER - bucket, parts list Figure 82

2шт.

25

113-630

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex head, 5/8" - 11 NC x 6", plated

2шт.

26

D61478

BUSHING

- bucket

2шт.

28

131-1105

LOCK NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

2шт.

29

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

2шт.

30

D58821

BUSHING

- cylinder

2шт.

32

131-1105

LOCK NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

2шт.

33

D60032

TOOL ASSY.

TOOL TACH - equipment

1шт.

34

D60019

AXLE PIN

PIN - tool tach

2шт.

35

G46176

SNAP RING,#56, Ext

Ring, Snap, , pin #56, Ext

4шт.

36

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

37

T40044

WEDGE

- bucket aligning

2шт.

38

195-525

WASHER,3/8", SAE

- flat, 3/8"

2шт.

39

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

40

D79993

STRUT - loader frame, models

1шт.

41

D89804

STRIP

- rubber, models with loader frame strut

2шт.

42

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

Models with loader frame strut Hex, 1/2"-13 x 3", G5

1шт.

43

131-654

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC, models with loader frame strut

1шт.

44

D79692

PAD

- bumper, models with loader frame strut

1шт.

45

A30384

PIN

- loader frame strut, models

1шт.

46

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), , Models with loader frame strut Int, 3/16 x .080"

1шт.

47

345-44

ADHESIVE

- spray, for attaching rubber pads to metal, not shown, models with loader frame strut

1шт.

Выбрано товаров: 41
