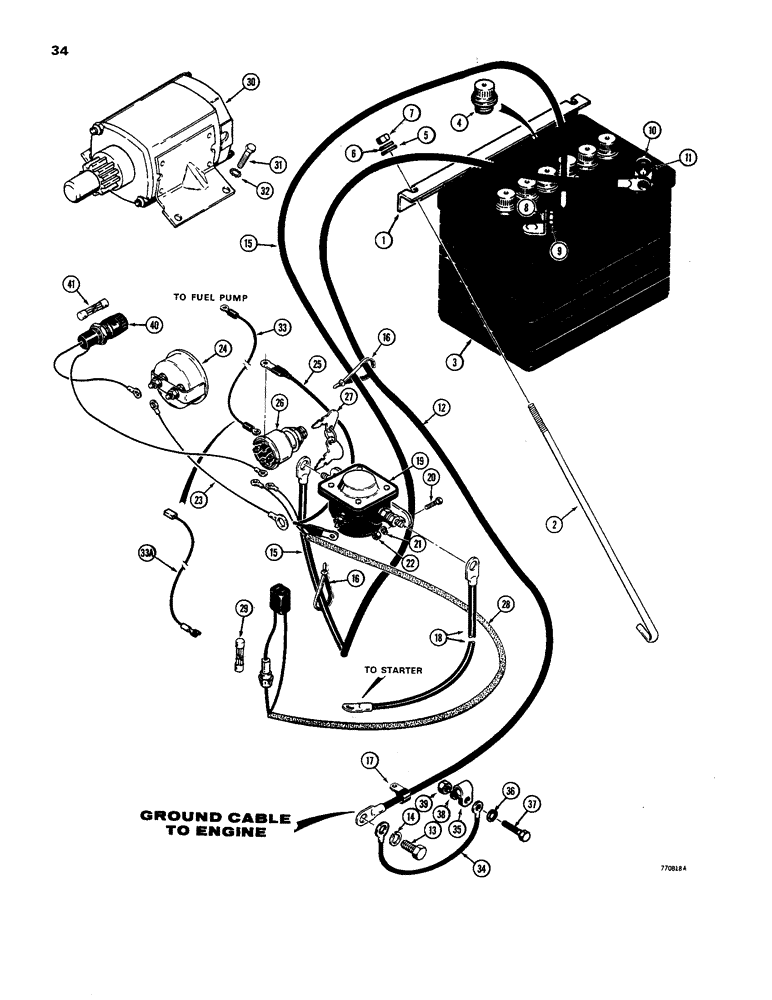

Запчасти Case IH 1816B (34) - ELECTRICAL WIRING AND BATTERY (55) - ELECTRICAL SYSTEMS

1

D60582

ANGLE

PLATE - battery holddown

1шт.

2

D60580

BOLT

- special, J-type

2шт.

3

C18197

NO LONGER SERVICED

BATTERY - 12 volt, service replacement

1шт.

C18197 Battery has standard caps which are to be replaced with non spill caps from old battery, if used, or order A60553 caps.

1шт.

4

A60553

CAP

- battery, nonspill

6шт.

5

195-21

WASHER,5/16"

- flat, 5/16"

2шт.

6

92-5

LOCK WASHER,5/16"

2шт.

7

129-578

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC, plated

2шт.

8

111-135

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

- 1/4" - 20 NC x 3/4", plated

1шт.

9

129-577

NUT,1/4"-20, G5

- hex, 1/4" - 20 NC, plated

1шт.

10

111-260

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2

- 5/16" - 18 NC x 3/4", plated

1шт.

11

129-578

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC, plated

1шт.

12

D57109

CABLE

- ground, battery, negative, black

1шт.

13

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

14

92-5

LOCK WASHER,5/16"

1шт.

15

D57404

CABLE

- battery to solenoid, positive

1шт.

16

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - wire

1шт.

17

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- cable

1шт.

18

D65589

CABLE

- starter to solenoid, red

1шт.

19

D61168

SOLENOID

SOLENOD - switch

1шт.

20

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

21

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

22

25-104

NUT,1/4"-20, G5

2шт.

23

D57405

WIRE -, Serial Range: solenoid-ammeter

1шт.

24

D56643

ELECTRICAL GAUGE

GAUGE - ammeter

1шт.

25

G13083

CABLE

- solenoid to ignition switch

1шт.

26

D90956

SWITCH

- ignition, replaces D77344 switch, Includes: Ref. 27

1шт.

27

D36822

KEY

- ignition, set of 2

1шт.

28

D78586

HARNESS

- switch to rectifier, Includes: Ref. 29

1шт.

29

223-31

FUSE,10 Amp, Type 3AG

- AGC 30 amp

1шт.

30

D61880

STARTING MOTOR

STARTER - engine, Tecumseh No. 33835, square housing, parts list Figure 38

1шт.

31

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

32

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

3шт.

33

D72348

ELECTRICAL WIRE

WIRE - switch to fuel pump, has two eye ends, if used

1шт.

33a

D92170

CABLE

WIRE - has one spade end and one female connector, if used

1шт.

34

D76912

CABLE

WIRE -, Serial Range: engine-frame

1шт.

35

A38799

CLAMP

- wire

1шт.

36

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

1шт.

37

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

38

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

39

25-104

NUT,1/4"-20, G5

1шт.

40

D56988

HOLDER

- fuse, Includes: Ref. 41

1шт.

41

223-31

FUSE,10 Amp, Type 3AG

- AGC 30 amp

1шт.
