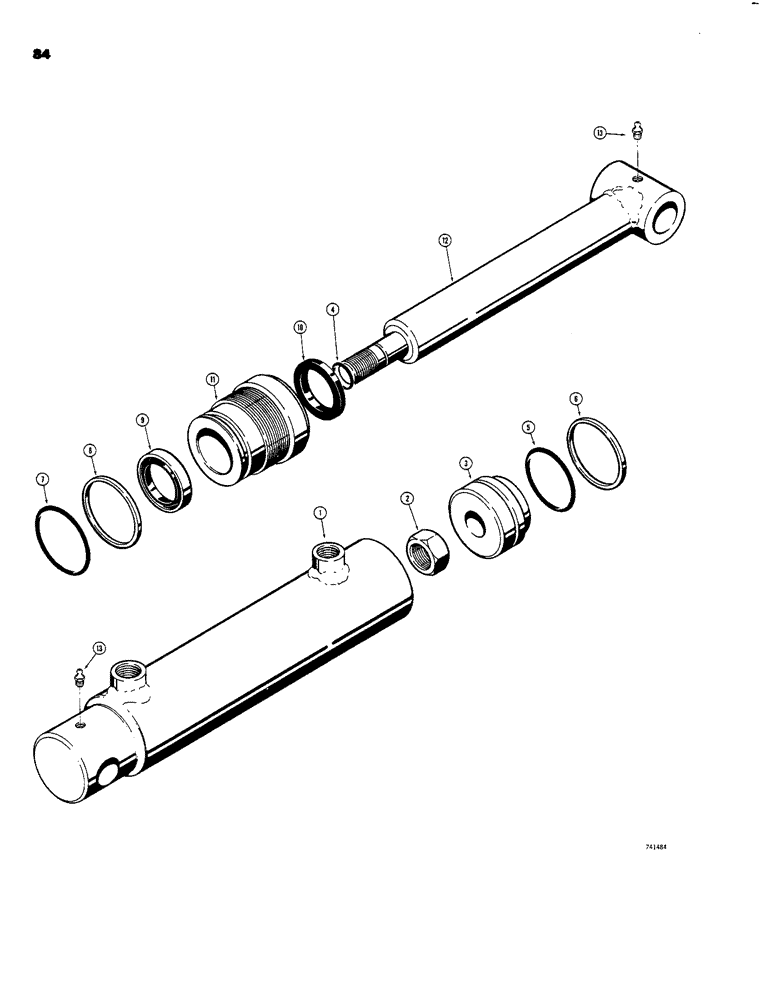

Запчасти Case IH 1816B (84) - D58638 GRAPPLE CYLINDER (35) - HYDRAULIC SYSTEMS

D58638

CYLINDER

- grapple, 5-1/2" (140 mm) stroke x 2" (51 mm) O.D., Includes: Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

25-1512

JAM NUT,Jam, 3/4"-10, G5

LOCK NUT - hex, 3/4" - 16 NF

1шт.

3

D60996

PISTON

- cylinder

1шт.

D61006

GASKET KIT

KIT - seal, cylinder, Includes: Ref. 4 - 10

1шт.

4

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- piston, inner

1шт.

5

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

- piston, outer

1шт.

6

D60995

RING

- piston

1шт.

7

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- gland

1шт.

8

A35884

WASHER

- backup

1шт.

9

D60999

WIPER SEAL

SEAL - U-cup, inner gland

1шт.

10

D60997

WIPER SEAL

WIPER - rod, outer gland

1шт.

11

D61002

GLAND

- cylinder

1шт.

12

D63373

ROD

- piston, 1" (25 mm) O.D.

1шт.

13

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

GREASE FITTING - straight, 1/4" - 28 NF

2шт.
