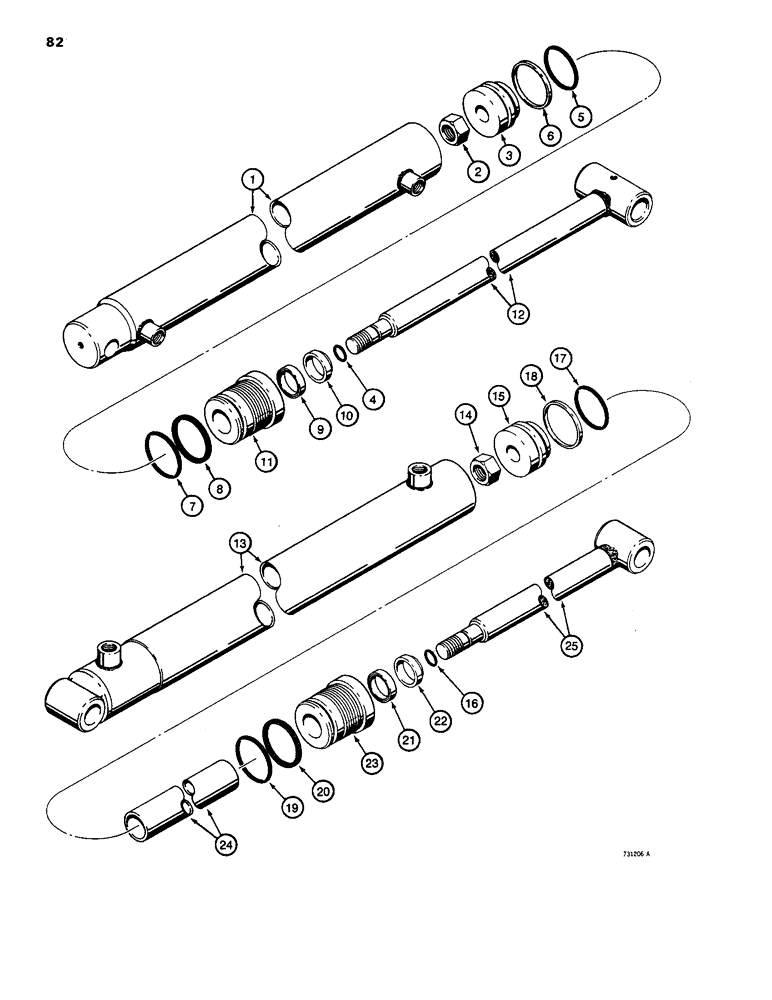

Запчасти Case IH 1816B (82) - D58574 / D63360 HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS

D58574

CYLINDER BLOCK

CYLINDER - hydraulic, bucket, 2" (51 mm) ID x 13" (330 mm) stroke, Includes: Ref. 1 - 12

2шт.

1

D61000

TUBE

- cylinder

1шт.

2

25-1512

JAM NUT,Jam, 3/4"-10, G5

LOCK NUT - hex, 3/4" - 16 NF

1шт.

3

D60996

PISTON

- cylinder

1шт.

D61006

GASKET KIT

KIT - seal, cylinder, Includes: Ref. 4 - 10

1шт.

4

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- piston, inner

1шт.

5

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

- piston, outer

1шт.

6

D60995

RING

- piston

1шт.

7

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- gland

1шт.

8

A35884

WASHER

- backup

1шт.

9

D60999

WIPER SEAL

SEAL - U-cup, inner gland

1шт.

10

D60997

WIPER SEAL

WIPER - rod, outer gland

1шт.

11

D61002

GLAND

- cylinder

1шт.

12

D61001

ROD

- piston, 1" (25 mm) O.D.

1шт.

D63235

CYLINDER BLOCK

CYLINDER - hydraulic, lift, 2" (51 mm) ID x 27" (686 mm) stroke, D63235 loader, Includes: Ref. 13 - 25

2шт.

13

D63360

TUBE

- cylinder, D63235 loader lift

1шт.

14

25-1512

JAM NUT,Jam, 3/4"-10, G5

LOCK NUT - hex, 3/4" - 16 NF, D63235 loader lift cylinder

1шт.

15

D60996

PISTON

- cylinder, D63235 loader lift

1шт.

D61006

GASKET KIT

KIT - seal, cylinder, D63235 loader lift, Includes: Ref. 16 - 22

1шт.

16

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- piston, inner, D63235 loader lift cylinder

1шт.

17

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

- piston, outer, D63235 loader lift cylinder

1шт.

18

D60995

RING

- piston, D63235 loader lift cylinder

1шт.

19

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- gland, D63235 loader lift cylinder

1шт.

20

A35884

WASHER

- backup, D63235 loader lift cylinder

1шт.

21

D60999

WIPER SEAL

SEAL - U-cup, inner gland, D63235 loader lift cylinder

1шт.

22

D60997

WIPER SEAL

WIPER - rod, outer gland, D63235 loader lift cylinder

1шт.

23

D61002

GLAND

- cylinder, D63235 loader lift

1шт.

24

D61005

SPACER

STOP - tube, D63235 loader lift cylinder

1шт.

25

D63359

PISTON

ROD - piston, 1" (25 MM) O.D., D63235 loader lift cylinder

1шт.
