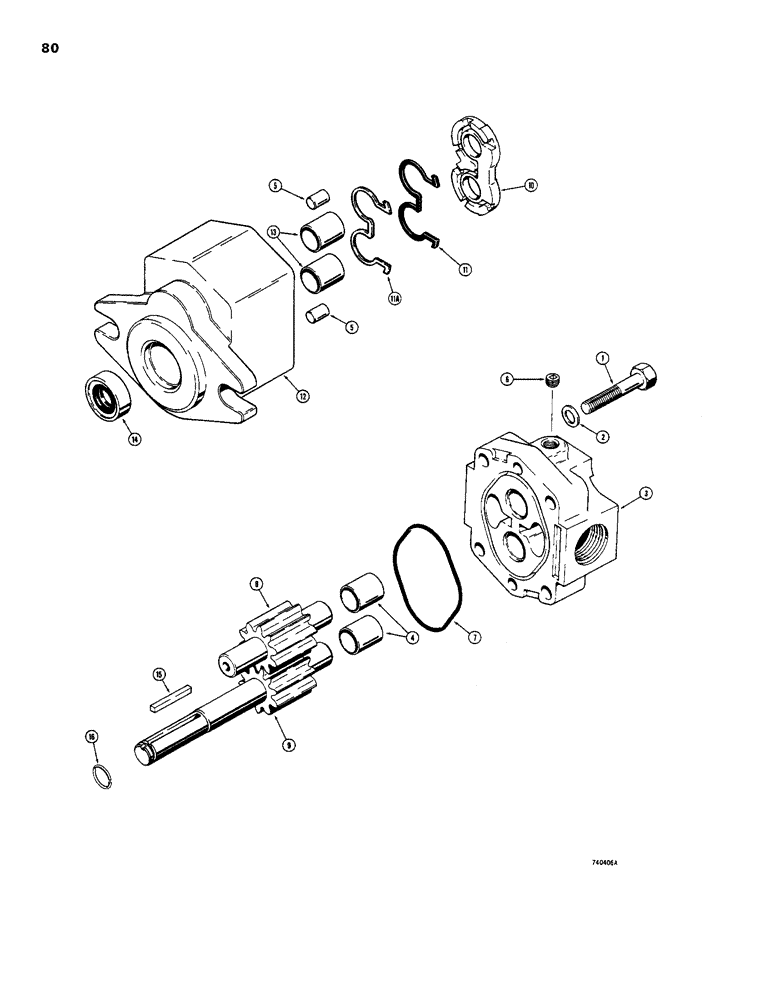

Запчасти Case IH 1816B (80) - D61866 HYDRAULIC EQUIPMENT PUMP (35) - HYDRAULIC SYSTEMS

D61866

PUMP

ASSEMBLY - side ported, Warner Gear no. S12S-50AK5-3-R, Includes: Ref. 1 - 15

1шт.

1

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

4шт.

2

D58189

WASHER

- flat, special

4шт.

3

D61896

COVER

ASSEMBLY - rear, Includes: Ref. 4

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - cover

2шт.

5

N6135

DOWEL PIN - 1/4" x 5/8"

2шт.

6

221-849

PLUG,Hex Soc, 1/8"-27

- socket head, square 1/8" NPT

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - cover

1шт.

C24334 seal kit also includes items not for this application. Discard extra items.

1шт.

Part of Seal Kit P/N C24334

1шт.

8

D61898

GEAR

DRIVEN GEAR - pump

1шт.

9

D61897

GEAR

DRIVE GEAR - pump

1шт.

10

C20462

PLATE ASSY.

WEAR PLATE - pump

1шт.

11

C24070

SEAL

- pressure, when replacing older one piece seal, order both Ref. 11 and 11A

1шт.

11a

C24071

SPACER

- C24070 seal, if used

1шт.

12

D61895

BODY

COVER ASSEMBLY - front, Includes: Ref. 13

1шт.

13

NSS

NOT SOLD SEPARAT

BUSHING - cover

2шт.

14

N9707

SEAL

- shaft

1шт.

C24334 seal kit also includes items not for this application. Discard extra items.

1шт.

Part of Seal Kit P/N C24334

1шт.

15

D60879

KEY

- straight

1шт.

16

A11538

SNAP RING,#50, Ext

Ring, Snap, , drive gear #50, Ext

1шт.

C24334

SEAL

KIT - seal, Includes: Ref. 7 and 14

1шт.

C24334 seal kit also includes items not for this application. Discard extra items.

1шт.
