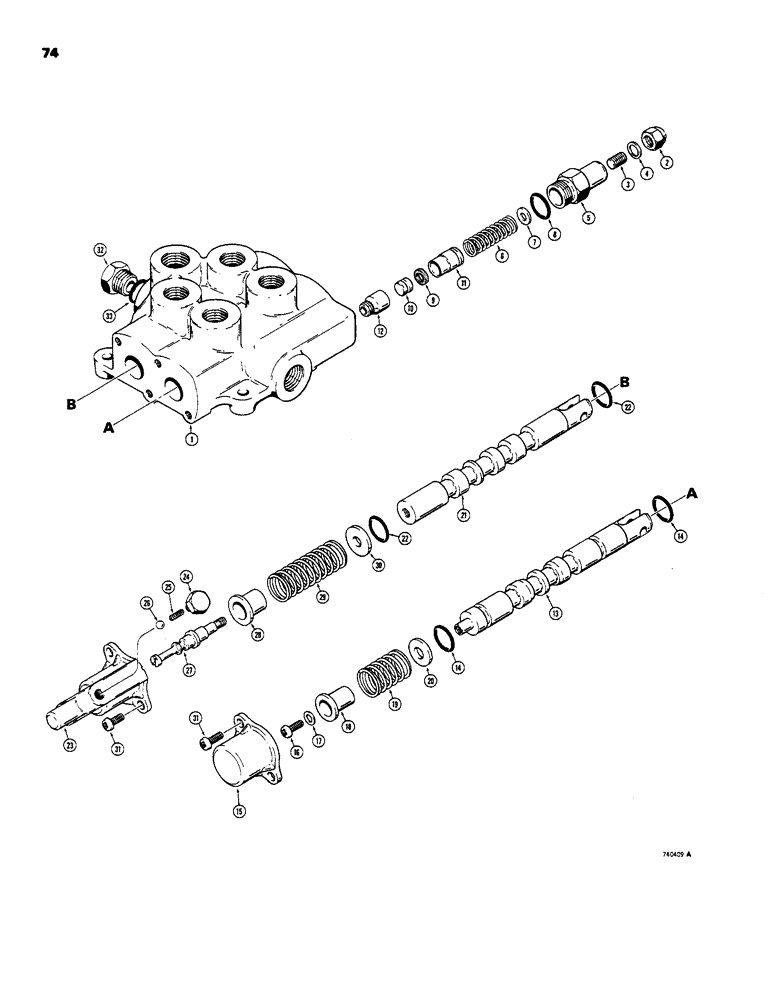

Запчасти Case IH 1816B (74) - D61409 LOADER CONTROL VALVE, USED BEFORE SERIAL NO. 9839208 (35) - HYDRAULIC SYSTEMS

D61409

CONTROL VALVE

ASSEMBLY - 2 spool, DUKES NO DV20-JS-EH- 16NB, order D82011 for service, Includes: Ref. 1 - 33

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

2

D59380

NUT

- acorn

1шт.

3

D59379

SCREW

SET SCREW - relief valve

1шт.

4

D59378

WASHER

- special

1шт.

Part of Seal Kit P/N D61920

1шт.

5

D59377

HEAD (CYLINDER)

HEAD - relief valve

1шт.

6

D59375

SPRING

- poppet

1шт.

7

D59658

WASHER

- Teflon

1шт.

8

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- head

1шт.

Part of Seal Kit P/N D61920

1шт.

9

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

SEAL - plug

1шт.

Part of Seal Kit P/N D61920

1шт.

10

D59371

LARGE PIN

PLUG - poppet

1шт.

11

D59369

VALVE POPPET

POPPET - relief valve

1шт.

12

D59370

SEAT

- poppet

1шт.

13

NSS

NOT SOLD SEPARAT

SPOOL - letter A, No. 1

1шт.

14

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- spool seal

2шт.

Part of Seal Kit P/N D61920

1шт.

C18846

KIT

- centering spring, Includes: Ref. 15 - 20

1шт.

15

C18847

CAP

- spool end

1шт.

16

193-524

SCREW - round head slotted, No. 10 - 32 NF x 3/8", external tooth SEMS, Hex Soc Hd, #10-32 x 3/8"

1шт.

17

195-510

WASHER,#8

- flat, no. 10, plated

1шт.

18

C13200

SPACER

SEAT - spring

1шт.

19

C18850

VALVE SPRING

CENTERING SPRING - spool

1шт.

20

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

1шт.

21

NSS

NOT SOLD SEPARAT

SPOOL - letter B, detent, No. 2

1шт.

22

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- spool seal

2шт.

Part of Seal Kit P/N D61920

1шт.

D60880

SPRING

KIT - centering spring, Includes: Ref. 23 - 30

1шт.

23

C17438

COVER

CAP - spool end

1шт.

24

C17443

SCREW,5/16" - 24 x 3/16"

- special, detent

2шт.

25

C17444

SPRING

- detent

2шт.

26

211-7

BALL,1/4" Dia

- steel 1/4" Dia

2шт.

27

C17439

VALVE

STUD - detent

1шт.

28

C13200

SPACER

SEAT - spring

1шт.

29

C17441

SPRING

CENTERING SPRING - spool

1шт.

30

C17440

WASHER

- special

1шт.

31

169-114

SCREW,Sl Fil Hd, #12 - 24 x 3/8"

- fillister head, slotted, No. 12 - 24 NC x 3/8"

4шт.

32

D61919

PLUG

- hex

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.

Part of Seal Kit P/N D61920

1шт.

D61920

SEAL

KIT - seal, Includes: Ref. 4, 8, 9, 14, 22 and 33

1шт.
