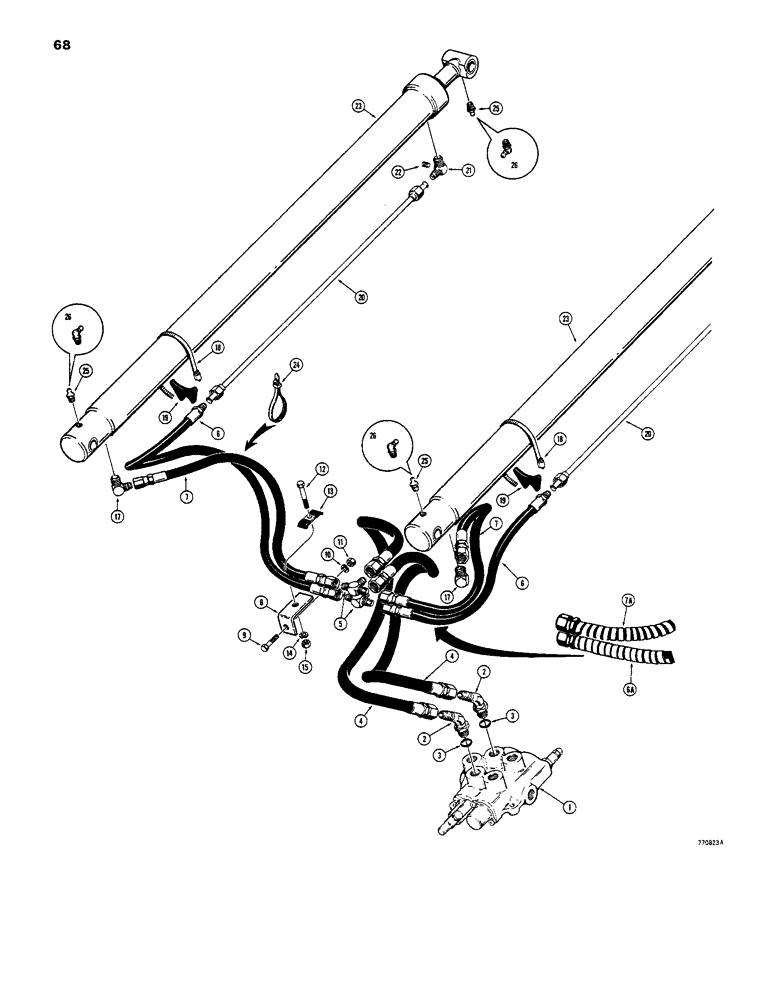

Запчасти Case IH 1816B (68) - LOADER LIFT CYLINDER HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

VALVE - hydraulic control, parts list Figure 74 or 76

1шт.

2

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, adjustable, Includes: Ref. 3

2шт.

4

D89702

HOSE

- at valve, 14-3/4" (375 mm) long

2шт.

5

218-594

TEE,3/4"-16, 37 Degree

- male

2шт.

6

D89700

HOSE

- at cylinder, rod end, 23-5/8" (600 mm) long

2шт.

6a

D77673

HOSE

- at cylinder, rod end, 24" (610 mm) long, with metal shield, if used

2шт.

7

D89701

HOSE

- at cylinder, closed end, 18-3/4" (475 mm) long

2шт.

7a

D77674

HOSE

- at cylinder, closed end, 19" (483 mm) long, with metal shield, if used

1шт.

8

D60696

BRACKET

- hose retaining

2шт.

9

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex head, 5/16" - 18 NC x 1, plated

2шт.

10

92-5

LOCK WASHER,5/16"

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

2шт.

12

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

13

R17319

CLAMP

- hose

2шт.

14

92-5

LOCK WASHER,5/16"

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

2шт.

17

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 degree, male

3шт.

18

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose

2шт.

19

D38648

BLOCK

CUSHION - rubber, hose

2шт.

20

D60509

TUBE

- at cylinder, rod end

2шт.

21

D57732

ELBOW UNION

ELBOW - 90 degree, male

1шт.

22

221-849

PLUG,Hex Soc, 1/8"-27

- hex, head, 1/8" NPT

1шт.

23

D63235

CYLINDER BLOCK

CYLINDER - lift, parts list Figure 82

2шт.

24

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - lift cylinder hoses

6шт.

25

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

GREASE FITTING - straight, 1/4" - 28 NF, if used

4шт.

26

219-400

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28

GREASE FITTING - 45 degree, 1/4" - 28 NF, if used

4шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- elbow

1шт.
