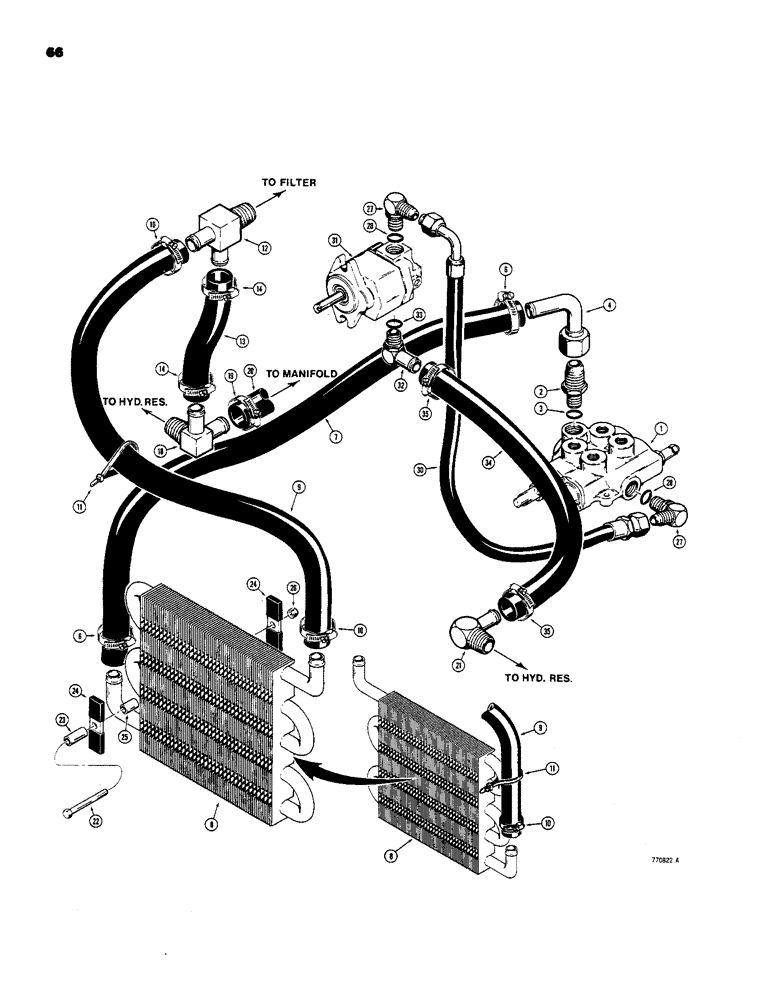

Запчасти Case IH 1816B (66) - PRIMARY EQUIPMENT HYDRAULIC CIRCUIT AND COOLER (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

VALVE - loader, parts list Figure 74 or 76

1шт.

2

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - straight, male, if used, see Ref. 4, Includes: Ref. 3

1шт.

4

D63870

TUBE

- at valve to cooler, not used on models with auxiliary hydraulic circuit, see items 8 Figure 72

1шт.

6

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

7

D65488

HOSE,0.75" ID x 40.00"

1шт.

8

D57600

COOLER

- hydraulic oil

1шт.

9

D65487

HOSE,0.75" ID x 30.00"

Cooler to Tank, Used on Models Without Noise Control 0.75" ID x 30.00"

1шт.

9

D95233

HOSE

- cooler to tank, 3/4" (19 mm) ID x 36" (914 mm) long, used on models with noise control

1шт.

10

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

11

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - hose

1-2шт.

12

D65489

FITTING

- special tee

1шт.

13

D95236

HOSE

- at tank, 3/4" 919 mm) ID x 9" (229 mm) long

1шт.

14

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

18

D64786

FITTING

- special tee

1шт.

19

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

20

D95239

LARGE HOSE

HOSE - crossover, 3/4" (19 mm) ID x 28" (711 mm) long

1шт.

21

217-135

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

BARB FITTING - 90 degree hose stem

1шт.

22

113-138

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

2шт.

23

D34632

BUSHING

SPACER - clamp, hose

2шт.

24

D54416

CLAMP

- tube

4шт.

25

D36040

BUSHING

SPACER - clamp, short

2шт.

26

131-651

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

27

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, male, Includes: Ref. 28

2шт.

30

D75439

HOSE

-, Serial Range: valve-pump

1шт.

31

D61866

PUMP

- equipment, parts list page 81

132шт.

32

217-361

FITTING,90 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

BARB FITTING - 90 degree, Includes: Ref. 33

133шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- barb fitting

1шт.

34

D64064

LARGE HOSE

HOSE - pump to hydraulic tank, 3/4" (19 mm) ID x 27" (686 mm) long

1шт.

35

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- connector

1шт.

28

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- elbow

1шт.
