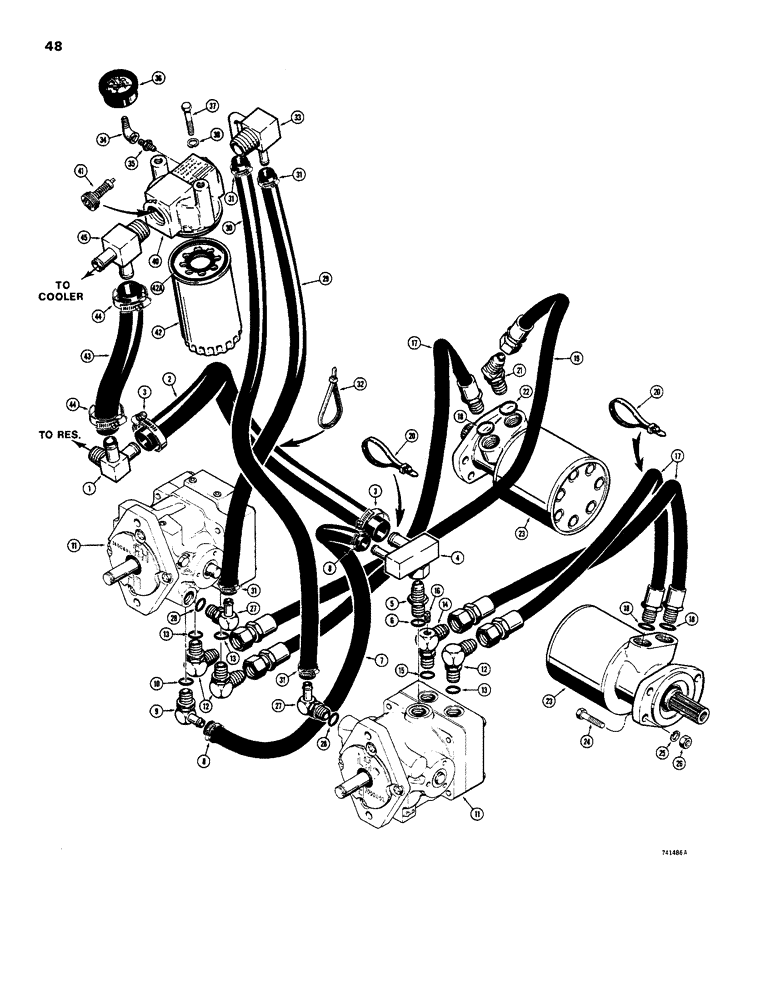

Запчасти Case IH 1816B (48) - DRIVE HYDRAULIC CIRCUIT, HYDRAULIC TANK TO MOTORS TO VARIABLE DISPLACEMENT PUMPS (35) - HYDRAULIC SYSTEMS

1

D64786

FITTING

- special tee

1шт.

2

D95239

LARGE HOSE

HOSE - at hydraulic tank, 3/4" (19 mm) ID x 28" (711 mm) long

1шт.

3

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

4

D63834

MANIFOLD

- case drain

1шт.

5

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTER, HYD., , Adapter, Straight, Male, Incl. Ref 6 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

7

D64932

HOSE

- manifold to pump, 21-1/2" (546 mm) long x 1/2" (13 mm) ID

1шт.

8

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

9

217-348

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/4" - 16 Male ORB

ELBOW - 90 degree, hose barb, Includes: Ref. 10

1шт.

11

REF

INSTRUCTION

PUMP - variable displacement, see figure 50

2шт.

12

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adjustable, Includes: Ref. 13

3шт.

14

D64395

FITTING

ELBOW - 90 degree, adjustable, Includes: Ref. 15

3шт.

16

221-849

PLUG,Hex Soc, 1/8"-27

- square head, 1/8" NPT

2шт.

17

D64783

HOSE

- pump to motor, L.H. 20" (508 mm) long, Includes: Ref. 18

3шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- hose

1шт.

19

D64000

HOSE

- pump to motor, R.H., 20" (508 mm) long

1шт.

20

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - hose

2шт.

21

D63865

ELBOW

- special, 45 degree, Includes: Ref. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

23

REF

INSTRUCTION

MOTOR - hydraulic, parts list Figure 54 or 56

2шт.

24

114-406

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5, Full Thd

6шт.

25

92-8

LOCK WASHER,1/2"

6шт.

26

129-125

NUT,1/2"-20, G5

6шт.

27

D64144

STEM

ELBOW - 90 degree, barbed, Includes: Ref. 28

2шт.

29

D65486

HOSE

- at L.H. pump, 1/2" (19 mm) ID x 26" (660 mm) long

1шт.

30

D65486

HOSE

- at R.H. pump, 1/2" (19 mm) ID x 26" (660 mm) long

1шт.

31

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

4шт.

32

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - hose

2шт.

33

D64266

ELBOW UNION

FITTING - special tee

1шт.

34

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

1шт.

35

217-1079

HYD CONNECTOR,1/8" - 27 NPTF

CONNECTOR - male, straight

1шт.

36

D58835

ELECTRICAL GAUGE

GAUGE - oil pressure

1шт.

37

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

38

92-8

LOCK WASHER,1/2"

2шт.

D58834

FILTER

- hydraulic oil, Includes: Ref. 40 and 41

1шт.

40

D59063

COVER

HEAD - filter

1шт.

41

D59064

VALVE

- relief

1шт.

D59062

FILTER, ELEMENT

ELEMENT ASSEMBLY - filter, Includes: Ref. 42 and 42A

1шт.

42

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

42a

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

- element seal

1шт.

43

D95236

HOSE

- low pressure, 3/4" (19 mm) ID x 9" (229 mm) long

1шт.

44

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

45

D65489

FITTING

- special tee

1шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- adapter

1шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- elbow

1шт.

13

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- elbow

1шт.

15

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- elbow

1шт.

28

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- elbow

1шт.
