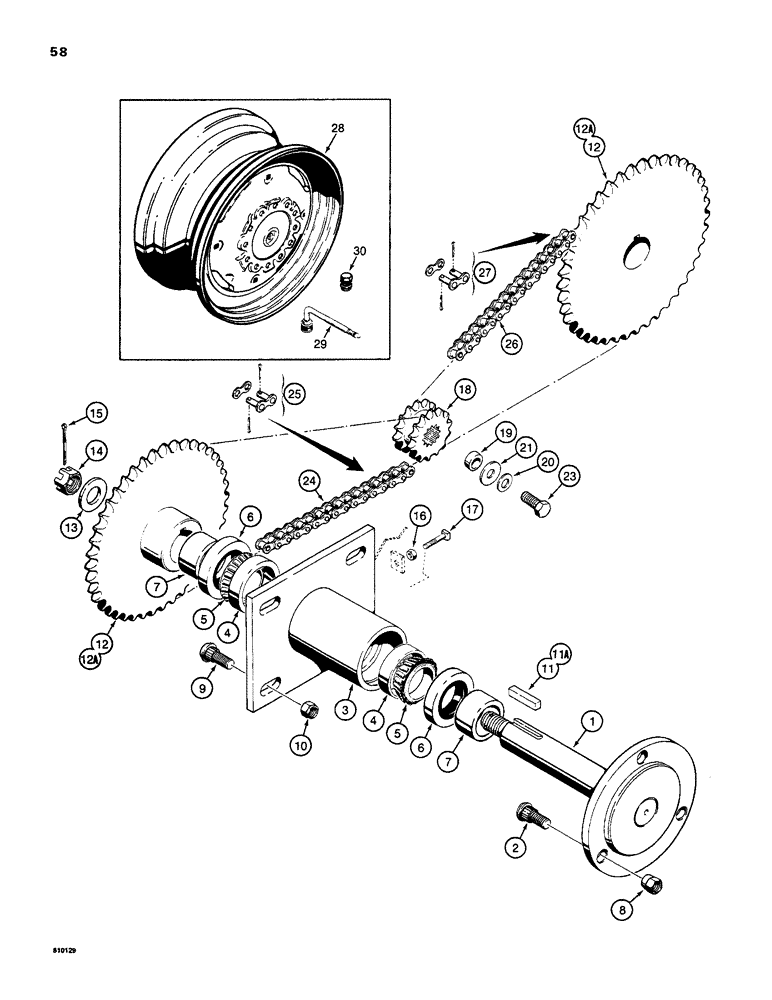

D76714
SHAFT
AXLE ASSEMBLY - used with Ref. 11 and 12, Includes: Ref. 1 and 2
4шт.
D120352
SHAFT
AXLE ASSEMBLY - used with Ref. 11A and 12A, Includes: Ref. 1 and 2
4шт.
1
NSS
NOT SOLD SEPARAT
AXLE - wheel
1шт.
2
D91709
WHEEL BOLT
BOLT - special, wheel
3шт.
D57755
HUB
ASSEMBLY, Includes: Ref. 3 and 4
4шт.
3
NSS
NOT SOLD SEPARAT
HUB - axle
1шт.
4
H751370
BEARING CUP
BEARING - cup
2шт.
5
H747758
TAPERED BEARING,38.1 mm ID x 18.034 mm
BEARING ASSEMBLY - cone
2шт.
6
D56800
SEAL
- grease
2шт.
7
D56799
SPACER
- bearing
2шт.
8
F23214
WHEEL NUT
- special, wheel
12шт.
9
E16592
WHEEL BOLT
BOLT - special, 1/2" - 20 NF x 1-7/8"
16шт.
10
131-915
FLANGE NUT,Flg, 1/2"-20, G5
- hex, self-locking, 1/2" - 20 NF
16шт.
11
A29408
KEY
- square, 3/8" x 1-1/4", used with D76714 Axle and D76462 Sprocket
4шт.
11a
D93645
KEY
- square, 3/8" x 1.72", used with D120352 Axle and D120138 Sprocket
4шт.
12
D76462
DRIVE SPROCKET
SPROCKET - driven, used with D76714 Axle and A29408 Key
4шт.
12a
D120138
DRIVE SPROCKET
SPROCKET - driven, used with D120352 Axle and D93645 Key
4шт.
13
195-549
WASHER,7/8", SAE
- flat, 7/8", zinc, plated
8-1шт.
14
25-1314
SLOTTED NUT,7/8"-14, G5
NUT - hex, slotted, 7/8" - 14 NF
4шт.
15
132-52
COTTER PIN,1/8" x 1 1/2"
Pin, Split (Cotter), 1/8" x 1 1/2"
4шт.
16
25-106
NUT,3/8"-16, G5
- hex, 3/8" - 16 NC
4шт.
17
181-650
SET SCREW,Sq Hd, 3/8"-16 x 1 3/4"
- square head, 3/8" - 16 NC x 1-3/4"
4шт.
18
D76459
DRIVE SPROCKET
SPROCKET - drive
2шт.
19
D60602
SPACER
- sprocket
2шт.
20
195-33
WASHER,1/2"
- flat, 1/2"
2шт.
21
95-8
WASHER,1/2"
flat 1/2"
2шт.
22
B17068
ADHESIVE
- locktite, No. 242.6 ml, used with Ref. 23, not shown
2шт.
23
114-409
BOLT,Hex, 1/2" - 20 x 1", Gr 5, Full Thd
2шт.
D56647
CHAIN (CE)
CHAIN - No. 60, R.H. rear and L.H. front, Includes: Ref. 24 and 25
2шт.
24
NSS
NOT SOLD SEPARAT
CHAIN - No. 60
1шт.
25
D66284
LINK,19.05mm Pitch
ASSEMBLY - link, clip and cotter pins
1шт.
D56648
CHAIN (CE)
CHAIN - No. 60, R.H. front and L.H. rear, Includes: Ref. 26 and 27
2шт.
26
NSS
NOT SOLD SEPARAT
CHAIN - No. 60
1шт.
27
D66284
LINK,19.05mm Pitch
ASSEMBLY - link, clip and cotter pins
1шт.
28
D58595
WHEEL
- rim, 27 x 8.50 x 15" tire only
4шт.
28
D56868
WHEEL
- rim, 5.70 and 5.90 x 15" tires
4шт.
29
D48692
VALVE
STEM - tubeless wheels only
4шт.
30
N7178
PLUG
- rim hole, if used
4шт.
Can be used to plug valve stem hole when reversing D59595 rims to alter tread width and valve stems are installed on other side.
1шт.
