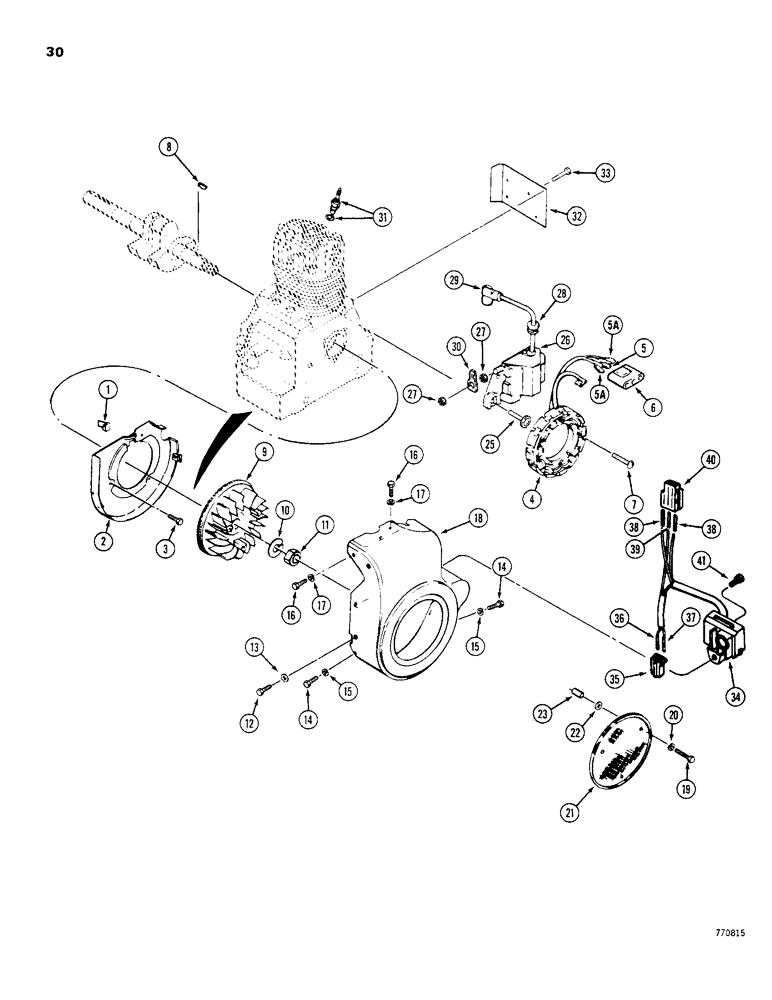

Запчасти Case IH 1816B (30) - ENGINE FLYWHEEL AND IGNITION (10) - ENGINE

1

D59584

CLIP

- cable, if used

1шт.

2

D59435

BAFFLE - blower housing

1шт.

3

C16040

BOLT,Spcl, 1/4" - 20 x 5/8"

SCREW - special, 1/4" - 20 NC x 5/8"

3шт.

D66429

COIL

AND ALTERNATOR ASSEMBLY - engine, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

COIL AND ALTERNATOR - engine

1шт.

5

D66431

CLAMP

TERMINAL - electrical

1шт.

5a

D66432

CLAMP

TERMINAL - electrical

2шт.

6

D66430

CONNECTOR, ELEC

CONNECTOR - electrical, flat

1шт.

NSS

NOT SOLD SEPARAT

SCREW AND WASHER ASSEMBLY - special locking, Order Refs. 7 and 7A

2шт.

7

177-103

SCREW - fillister head, slotted, No. 10 - 32 NF x 1-1/8" Sltd Fil Hd, #10-32 x 1 1/8"

2шт.

7a

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, , Not shown Ext Tooth, #10

2шт.

8

126-19

WOODRUFF KEY,#11, 3/16" x 7/8"

- 3/16" x 7/8"

1шт.

D66423

FLYWHEEL

AND BLOWER ASSEMBLY - engine, Includes: Ref. 9 and 9A

1шт.

9

NSS

NOT SOLD SEPARAT

FLYWHEEL AND BLOWER - engine

1шт.

9a

N6748

AXLE PIN

KIT - trigger pins, not shown

1шт.

10

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

11

129-128

NUT,3/4"-16, G5

- hex, 3/4" x 16 NF

1шт.

12

C16043

BOLT

- hex head, slotted, No. 10 - 32 NF x 3/4"

1шт.

13

195-13

WASHER,#10

- flat, No. 10, if used, see Ref. 13A

1шт.

13a

C15987

CLIP

- wire, if used, used in place of Ref. 13 on some engines, not shown

1шт.

14

14-56

SCREW,Hex, 5/16" - 24 x 3/8"

BOLT - hex head, 5/16" - 24 NF x 3/8"

2шт.

15

92-5

LOCK WASHER,5/16"

2шт.

16

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex head, 1/4" - 20 NC x 7/16"

2шт.

17

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

18

D77603

HOUSING - flywheel and blower

1шт.

19

175-442

SCREW,Phil Truss Hd, 1/4" - 20 x 1 3/4"

MACHINE SCREW - truss head Phillips, 1/4" - 20 NC x 1-1/2"

3шт.

20

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

21

D59567

FILTER SCREEN

SCREEN - blower

1шт.

22

195-17

WASHER,1/4"

- flat, 3/8"

3шт.

23

D59412

SPACER

- screen

3шт.

25

193-550

SCREW,SEMS, Cross Fil Hd, 1/4"-20 x 3/4"

AND WASHER - phillips head and conical spring lock washer, 1/4" - 20 NC x 3/4"

2шт.

D66424

MAGNET

O ASSEMBLY - solid state, Includes: Ref. 26 - 30

1шт.

26

NSS

NOT SOLD SEPARAT

MAGNETO - solid state

1шт.

27

129-37

NUT,#10-32

2шт.

28

D59607

GROMMET - wire

1шт.

29

C15854

COVER ASSY

BOOT - spark plug insulator

1шт.

30

D66425

TERMINAL - flat

1шт.

31

M20699

SPARK PLUG

- 14E2, Prestolite

1шт.

31

D76021

SPARK PLUG

- radio noise suppression

1шт.

32

D59440

EXTENSIO - blower housing

1шт.

33

C16048

SCREW,Phil Hex Hd, 1/4" - 20 x 1/2"

- hex head phillips, 1/4" - 20 NC x 1/2"

2шт.

N6459

REGULATOR

RECTIFIER ASSEMBLY - voltage regulator, Includes: Ref. 34 - 40

1шт.

34

NSS

NOT SOLD SEPARAT

RECTIFIER - voltage regulator

1шт.

35

D77596

CONNECTOR - electrical

1шт.

36

D77597

TERMINAL - wire

1шт.

37

D77598

TERMINAL CONNECTOR

TERMINAL - wire

1шт.

38

D77599

TERMINAL - female

2шт.

39

D77600

TERMINAL - female

1шт.

40

D77601

CONNECTOR - male

1шт.

41

C16048

SCREW,Phil Hex Hd, 1/4" - 20 x 1/2"

- special, 1/4" - 20 NC x 1/2"

1шт.

42

D77602

FITTING - regulator, not shown

1шт.
