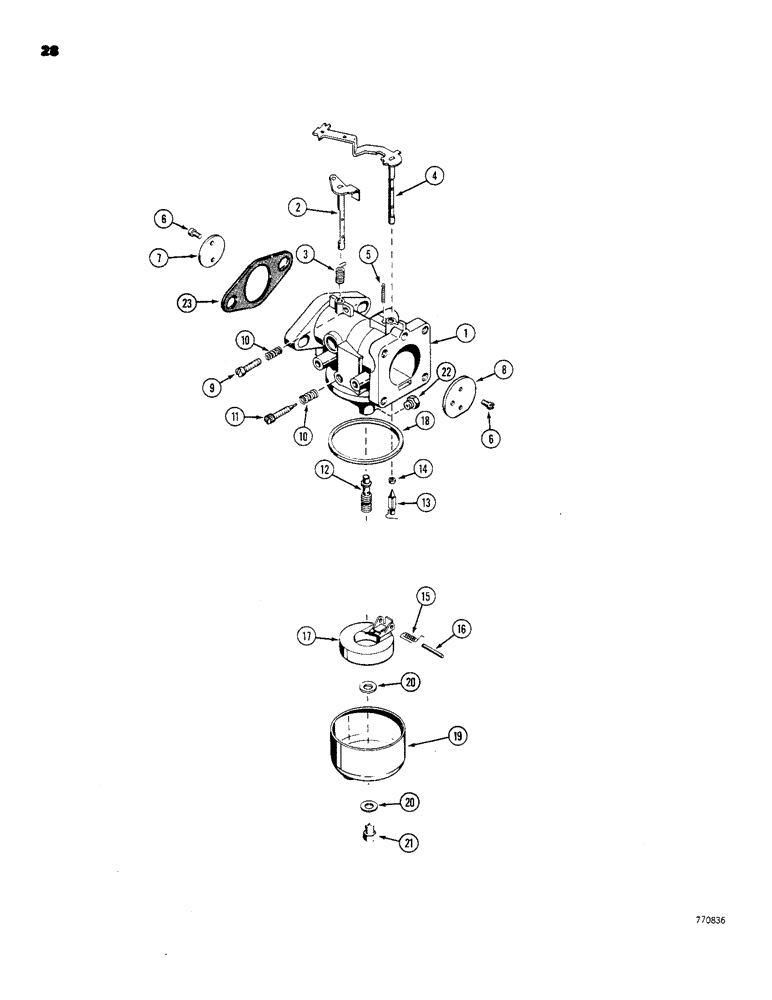

Запчасти Case IH 1816B (28) - CARBURETOR (10) - ENGINE
№
Артикул
Название
Примечание
Количество
D73713
CARBURETOR
ASSEMBLY - fuel, Includes: Ref. 1 - 23B
1шт.
1
NSS
NOT SOLD SEPARAT
BASE - carburetor
1шт.
2
D59630
SHAFT
THROTTLE - control
1шт.
3
D59644
SPRING
- throttle return
1шт.
4
D59632
SHAFT
CHOKE - control
1шт.
5
D59633
VALVE SPRING
SPRING - choke stop
1шт.
6
173-57
SCREW,Sl Rnd Hd, #6 - 32 x 1/4"
- round head, slotted, No. 6 - 32 NC x 1/4", if used
4шт.
6
182-519
SCREW,Sl Pan Hd, #4 - 40 x 3/16"
- pan head, slotted, No. 4 - 40 NC x 3/16", if used
4шт.
7
D59631
SHUTTER
PLATE - throttle
1шт.
8
D59637
SHUTTER
PLATE - choke
1шт.
9
177-99
SCREW,Sl Fil Hd, #10 - 32 x 5/8"
- throttle adjusting, No. 10 - 32 NF x 5/8", Replaces D59634
1шт.
10
D59636
VALVE SPRING
SPRING - throttle and idle adjusting
2шт.
11
D59635
NEEDLE - screw, idle adjusting
1шт.
Part of Repair Kit P/N D59648
1шт.
12
D61008
NOZZLE
- fuel
1шт.
D59639
VALVE
SEAT AND SPRING ASSEMBLY - carburetor, Includes: Ref. 13, 14, carburetor valve and carburetor valve and seat
1шт.
Part of Repair Kit P/N D59648
1шт.
NSS
NOT SOLD SEPARAT
VALVE AND SEAT - carburetor
1шт.
13
NSS
NOT SOLD SEPARAT
VALVE - carburetor
1шт.
14
NSS
NOT SOLD SEPARAT
SEAT - valve
1шт.
15
D59646
VALVE SPRING
SPRING - float
1шт.
16
D59641
SHAFT
- float
1шт.
Part of Repair Kit P/N D59648
1шт.
17
D59640
FLOAT
- carburetor bowl
1шт.
18
D59638
GASKET
-, Serial Range: bowl-body
1шт.
Part of Repair Kit P/N D59648
1шт.
19
D59642
BOWL
- carburetor
1шт.
20
C15900
GASKET
- bowl
2шт.
Part of Repair Kit P/N D59648
1шт.
21
D59643
NUT
- bowl retaining
1шт.
22
D66435
JET
- fuel, main, not used with heavy duty air cleaner
1шт.
23
D59422
GASKET
- carburetor
1шт.
23a
D80533
SEAL - dust, throttle shaft, not shown
1шт.
23b
D80534
SEAL - dust, choke shaft, not shown
1шт.
24
D86627
NEEDLE - power, used with heavy duty air cleaner, not shown, see Figure 26
1шт.
D59648
GASKET KIT
KIT - repair, Includes: Ref. 11, 16, 18, 20 and P/N D59639
1шт.
