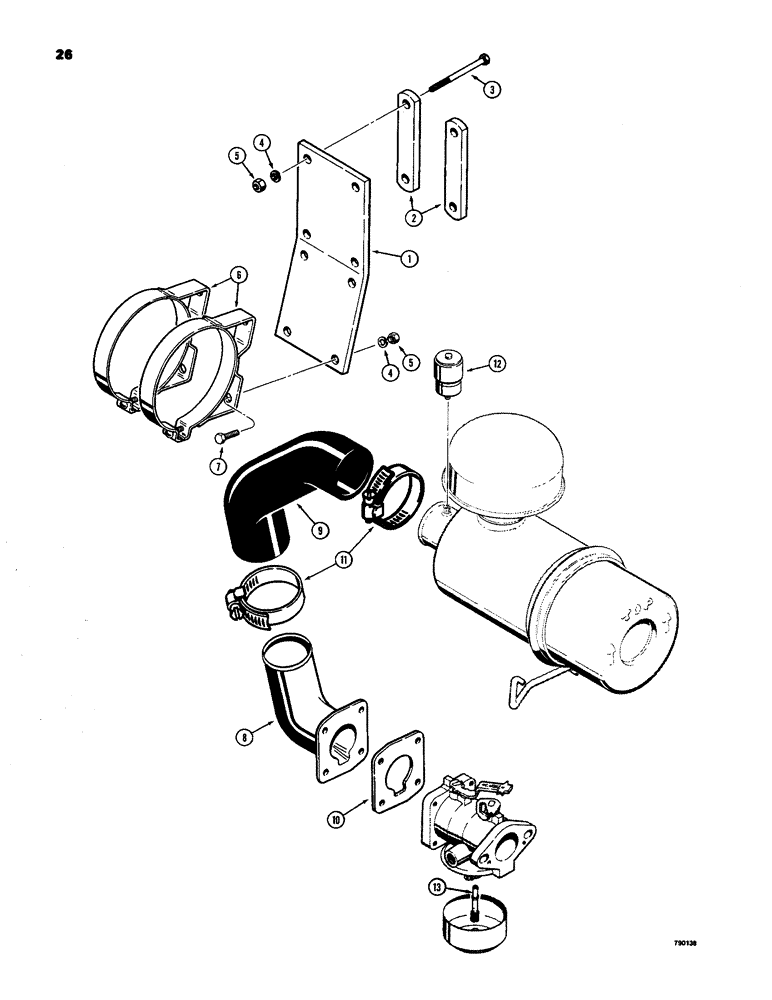

Запчасти Case IH 1816B (26) - HEAVY DUTY AIR CLEANER MOUNTING PARTS (10) - ENGINE

1

D78000

PLATE - air cleaner mounting

1шт.

2

D77999

PLATE - air cleaner mounting

2шт.

3

113-177

BOLT,Hex, 5/16" - 18 x 3", Gr 5

4шт.

4

92-5

LOCK WASHER,5/16"

8шт.

5

9635082

NUT,5/16" - 18, Gr 5

8шт.

6

D27245

COLLAR CLAMP

BAND - air cleaner mounting

2шт.

7

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

8

D80180

ADAPTER -, Serial Range: carburetor-hose

1шт.

9

D77990

HOSE - adapter to air cleaner

1шт.

10

D59459

GASKET

-, Serial Range: adapter-carburetor

1шт.

11

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

12

D72342

INDICATOR - filter

1шт.

13

D86627

NEEDLE - power

1шт.
