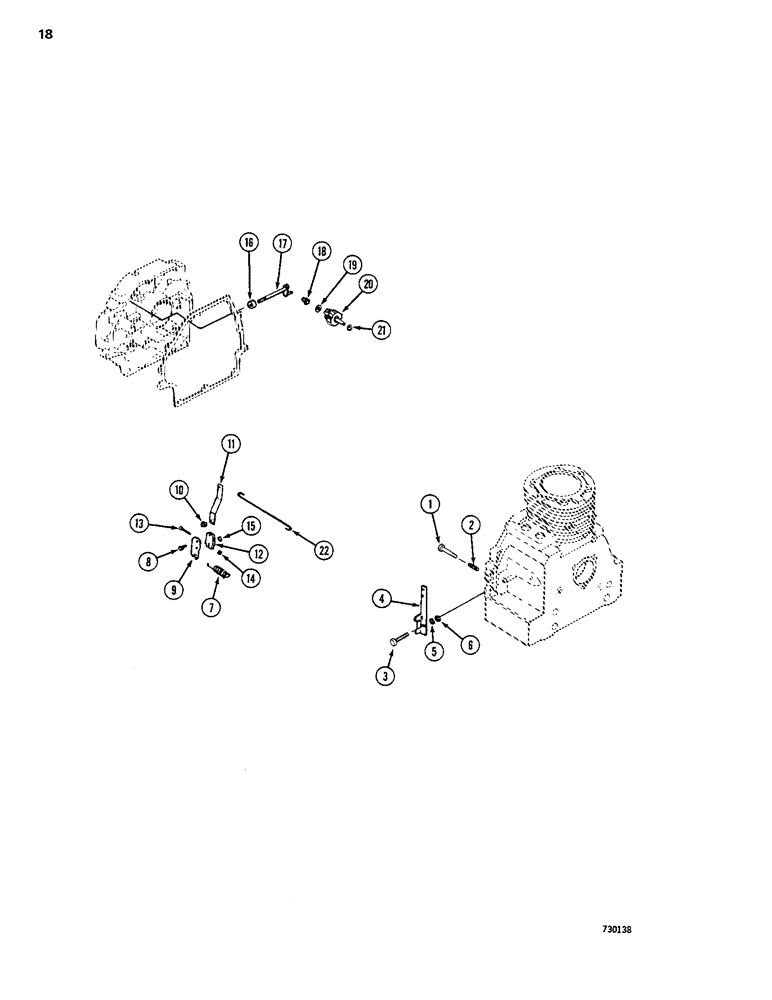

Запчасти Case IH 1816B (18) - ENGINE, IDLE SPEED CONTROL AND GOVERNOR (10) - ENGINE

1

169-107

SCREW,Sl Fil Hd, #10 - 24 x 2"

MACHINE SCREW - slotted head, No. 10 - 24 NC x 2"

1шт.

2

D59432

VALVE SPRING

SPRING - stop

1шт.

3

163-21

SCREW,Hex Wshr Hd, #10 - 24 x 5/8"

BOLT - hex washer head, No. 10 - 24 NC x 5/8"

1шт.

4

D59428

LEVER - speed control, idle

1шт.

5

D59429

WASHER

- pressure, wave

1шт.

6

D59430

BUSHING

SPACER - lever

1шт.

7

D59431

VALVE SPRING

SPRING - governor

1шт.

8

163-20

SCREW,Sl Hex Wshr Hd, #10 - 32 x 1/2"

BOLT - hex, slotted washer head, No. 10 - 32 NF x 1/2"

1шт.

9

D59427

PLATE - governor spring

1шт.

10

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

1шт.

11

D59425

LEVER - governor

1шт.

12

D59426

CLAMP - lever retaining

1шт.

13

182-562

SCREW,Slotted Pan Hd, #10-24 x 7/8"

- fillister head, No. 10 - 24 NC x 7/8"

1шт.

14

129-47

NUT

- square head, No. 10 - 24 NC

1шт.

15

C15986

RING

- retaining

1шт.

16

D59412

SPACER

- rod, governor

1шт.

17

D59411

ROD

- governor

1шт.

18

D59408

SPOOL

- governor

1шт.

19

D59407

WASHER

- flat

1шт.

20

N8274

PINION

GOVERNOR - shaft and gear (Replaces D59405)

1шт.

21

D59406

WASHER

- flat

1шт.

22

D59424

LINK

-, Serial Range: governor-carburetor

1шт.
