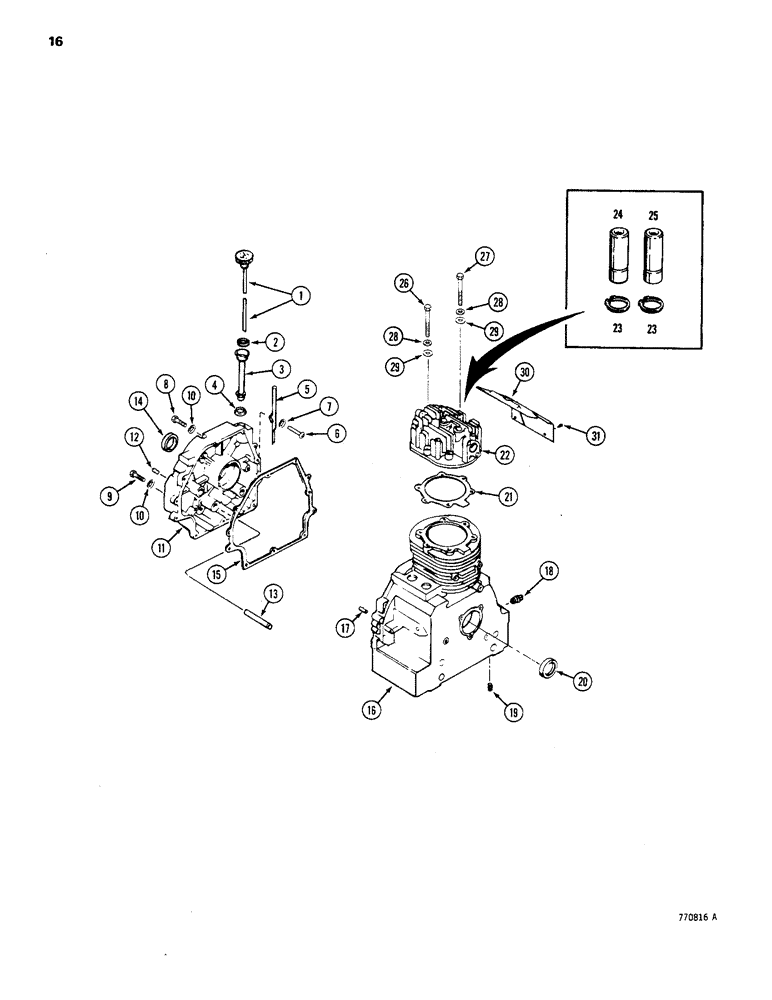

Запчасти Case IH 1816B (16) - ENGINE BLOCK AND HEAD (10) - ENGINE

1

D59413

DIPSTICK

- oil, Includes: Ref. 2

1шт.

2

D59649

O-RING

- dipstick

1шт.

3

D59575

TUBE

- oil fill

1шт.

4

C15979

GASKET

- tube

1шт.

5

N8282

TUBE

- extension, oil return (Replaces D59574)

1шт.

6

182-128

MACHINE SCREW - No. 10 - 24 NC x 7/8"

1шт.

7

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

1шт.

8

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

- hex head, 1/4" - 20 NC x 2-1/4"

1шт.

9

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

8шт.

10

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

9шт.

N8276

COVER ASSY

COVER ASSEMBLY - block (Replaces D66419), Includes: Ref. 11 - 14

1шт.

11

NSS

NOT SOLD SEPARAT

COVER - block

1шт.

12

221-1001

PLUG,Sq Hd, 1/8"-27 NPTF

- pipe, square head, 1/8 NPT

2шт.

13

D59605

SHAFT

- weight

2шт.

14

D59594

SEAL

OIL SEAL - cover

1шт.

15

D59409

GASKET

-, Serial Range: cover-block

1шт.

D59381

SPARE PART

ENGINE BLOCK ASSEMBLY - cylinder, Includes: Ref. 16 - 20

1шт.

16

NSS

NOT SOLD SEPARAT

ENGINE BLOCK - cylinder

1шт.

17

C15973

PIN

DOWEL PIN - engine block

2шт.

18

221-1003

PLUG - pipe, square head, 3/8" NPT

2шт.

19

221-1001

PLUG,Sq Hd, 1/8"-27 NPTF

- pipe, square head, 1/8" NPT

1шт.

20

D59594

SEAL

OIL SEAL - engine block

1шт.

21

N6520

GASKET

- cylinder head

1шт.

22

D59415

HEAD (CYLINDER)

CYLINDER HEAD - engine, Includes: Ref. 23 - 25 and valve guide kit

1шт.

For repairing damaged threads in exhaust port of cylinder head order:

1шт.

D78420

KIT

- valve guide, Includes: Ref. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

RING - retaining

2шт.

24

NSS

NOT SOLD SEPARAT

GUIDE - intake, valve

1шт.

25

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve

1шт.

26

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4шт.

27

113-176

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- hex head,5/16" - 18 NC x 1-3/8"

2шт.

28

D59418

WASHER

- flat, special

6шт.

29

D59417

WASHER

SPRING - Belleville

6шт.

30

D59565

COVER

- head, cylinder

1шт.

31

187-328

MACHINE SCREW - no. 10 - 24 NC x 3/8"

2шт.

D87423

FLANGE

KIT - exhaust flange repair, not shown, Includes: Ref. gasket, flange and screws

1шт.

D86620

GASKET

- exhaust flange, if used, not shown

1шт.

NSS

NOT SOLD SEPARAT

FLANGE - exhaust, if used, not shown

1шт.

169-154

SCREW,Phil Fil Hd, 5/16" - 18 x 3/4"

- fillister head, 5/16" - 18 NC x 3/4", flange retaining, if used

2шт.
