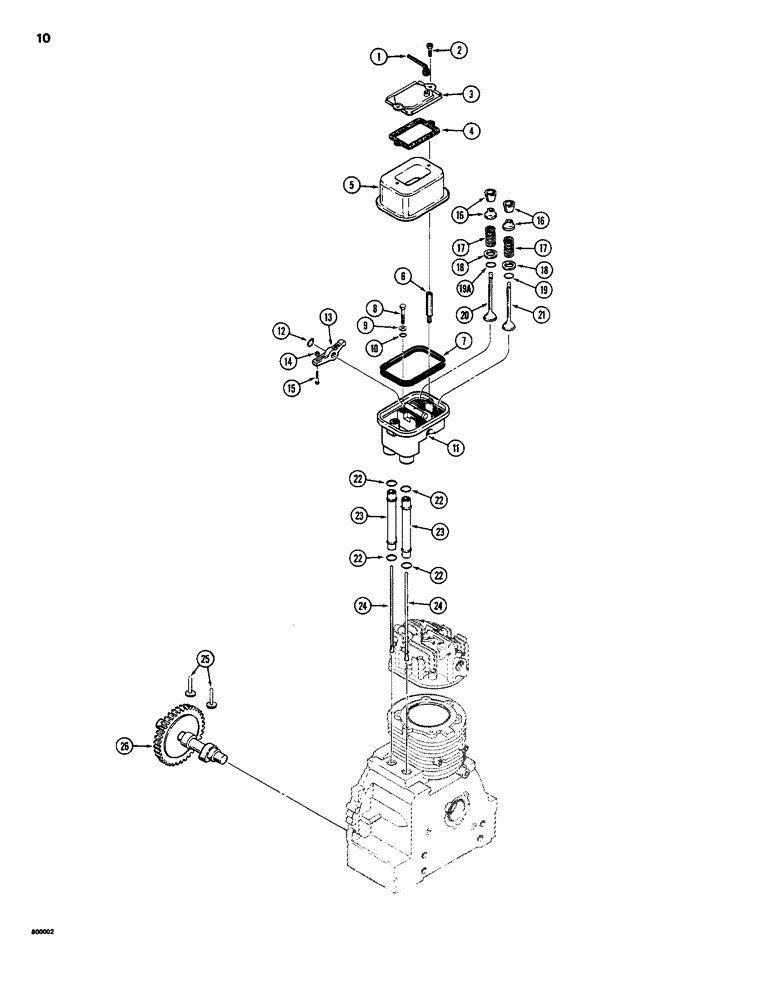

Запчасти Case IH 1816B (10) - CAMSHAFT, ROCKER ARMS, VALVES, AND PUSH RODS (10) - ENGINE

1

D59458

TUBE

- breather

1шт.

2

182-146

SCREW,Sl Pan Hd, #10 - 32 x 5/8"

MACHINE SCREW - no. 10 - 32 NC x 5/8"

2шт.

3

D59457

HOUSING

COVER - breather

1шт.

4

D59456

GASKET

- breather

1шт.

5

D59455

COVER

- rocker arms

1шт.

6

D59453

STUD

- rocker arm cover

2шт.

7

D59454

O-RING

SEAL - housing

1шт.

8

D59448

SCREW

BOLT - hex head, 1/4" - 20 NC x 29/32"

3шт.

9

C16069

WASHER

- flat

3шт.

10

D59447

O-RING

- bolt sea

3шт.

11

D59444

HOUSING

- rocker arm

1шт.

12

A41292

RING

- retaining

2шт.

13

D59449

ROCKER

ARM - engine valve

2шт.

14

D59452

NUT

- hex, special

2шт.

15

D59451

SCREW

- adjusting, special

2шт.

16

D59402

RETAINER

AND CAP SET - keeper, valve

2шт.

17

D59401

VALVE SPRING

SPRING - valve

2шт.

18

D59404

CAP

- valve

2шт.

19

D59403

O-RING

- intake valve

1шт.

19a

N6373

O-RING

- exhaust valve

1шт.

20

D59399

VALVE

EXHAUST VALVE - standard

1шт.

20

D59400

VALVE

EXHAUST VALVE - 1/32" (0.80 mm) oversize

1шт.

21

D59397

VALVE

INTAKE VALVE - standard

1шт.

21

D59398

VALVE

INTAKE VALVE - 1/32" (0.80 mm) oversize

1шт.

22

D59443

O-RING

- tube

4шт.

23

D59442

TUBE

- push rod

2шт.

24

D59396

ROD

PUSH ROD - valve

2шт.

25

D59395

GRAIN LIFTER

LIFTER - valve

2шт.

26

D59394

CAMSHAFT

- engine

1шт.

THIS PART HAS TEETH AT AN ANGLE NOT STRAIGHT, BOTH ARE TECUMSEH PARTS, N59394 HAS STRAIGHT TEETH

1шт.
