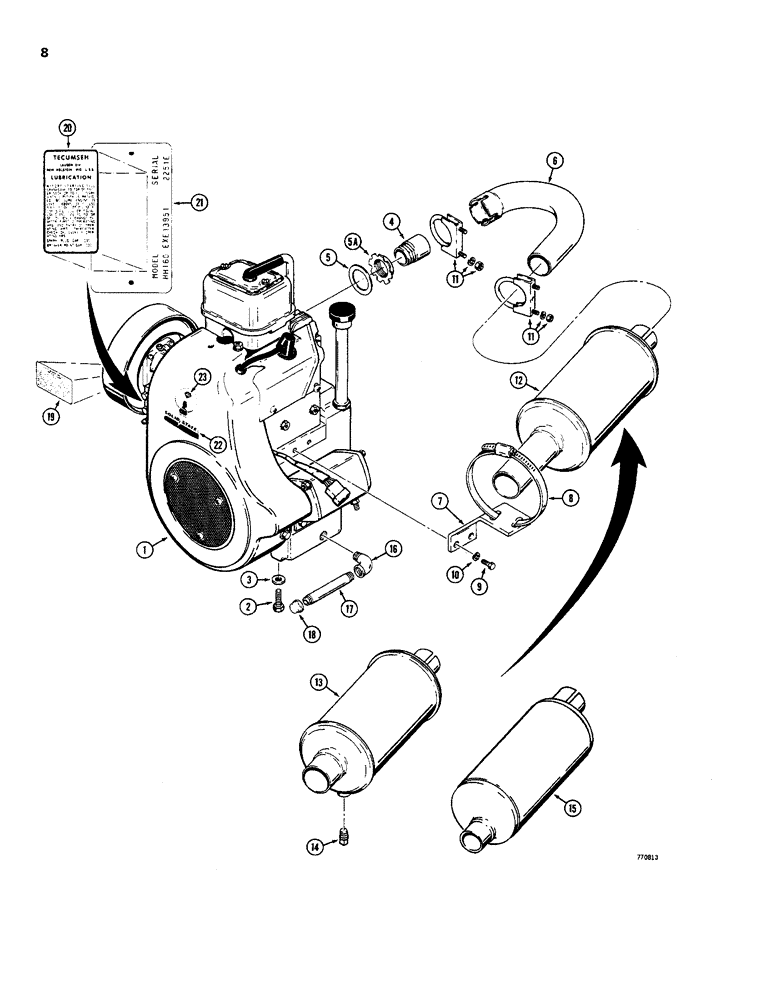

Запчасти Case IH 1816B (08) - ENGINE MOUNTING, MUFFLER, AND FUEL LINE (10) - ENGINE

1

D75305

ENGINE ASSEMBLY

ENGINE - Tecumseh No. HH 160-170048A, see figures 8 thru 38 for components

1шт.

TO REPLACE TECUMSEH WITH ONAN ORDER1 ENGINE D91863, 1 MUFFLER D121767, 1 PKG D100841, SEE SERVICE BULLETIN 5/83

1шт.

2

113-2230

BOLT

- hex head, self-locking, 3/8" - 16 NC x 1"

4шт.

3

195-525

WASHER,3/8", SAE

- flat, 3/8

4шт.

4

D59121

FITTING

NIPPLE - pipe, exhaust

1шт.

5

T40036

WASHER, THRUST,34.98mm ID x 52.12mm OD x 0.81mm Thk

WASHER - special

1шт.

5a

223-203

NUT

- conduit

1шт.

6

D60992

PIPE FITTING

EXHAUST PIPE - used with D60951 or D60986 muffler

1шт.

6

D75082

PIPE

EXHAUST PIPE - used with D75686 muffler

1шт.

7

D60934

BRACKET

- muffler support

1шт.

8

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - muffler

1шт.

9

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

10

92-5

LOCK WASHER,5/16"

2шт.

11

D58859

CLAMP

ASSEMBLY - muffler, includes hardware

2шт.

12

D60951

MUFFLER

- exhaust

1шт.

13

D60986

MUFFLER

- exhaust, spark arresting, if used

1шт.

14

217-76

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF, Brass

PLUG - pipe, 1/4" NPT

1шт.

15

D75686

MUFFLER

- exhaust, with added noise suppression, if used

1шт.

16

221-1413

ELBOW,90 Degree, 3/8"-18, NPT

- 90 degree, street, engine oil pan

1шт.

17

221-170

PIPE,Nipple, 3/8" NPT x 5"

NIPPLE - pipe, 3/8" x 5", engine oil pan

1шт.

18

221-524

CAP,3/8" NPT

- pipe, 3/8", engine oil pan

1шт.

19

C15862

DECAL

- air cleaner instructions, tecumseh engine

1шт.

20

D59569

DECAL - instructions and name, tecumseh engine

1шт.

21

NSS

NOT SOLD SEPARAT

PLATE - identification, tecumseh engine decals

1шт.

22

D59570

DECAL - Solid State, tecumseh engine

1шт.

23

D66434

DECAL

- name and HP, tecumseh engine

1шт.
