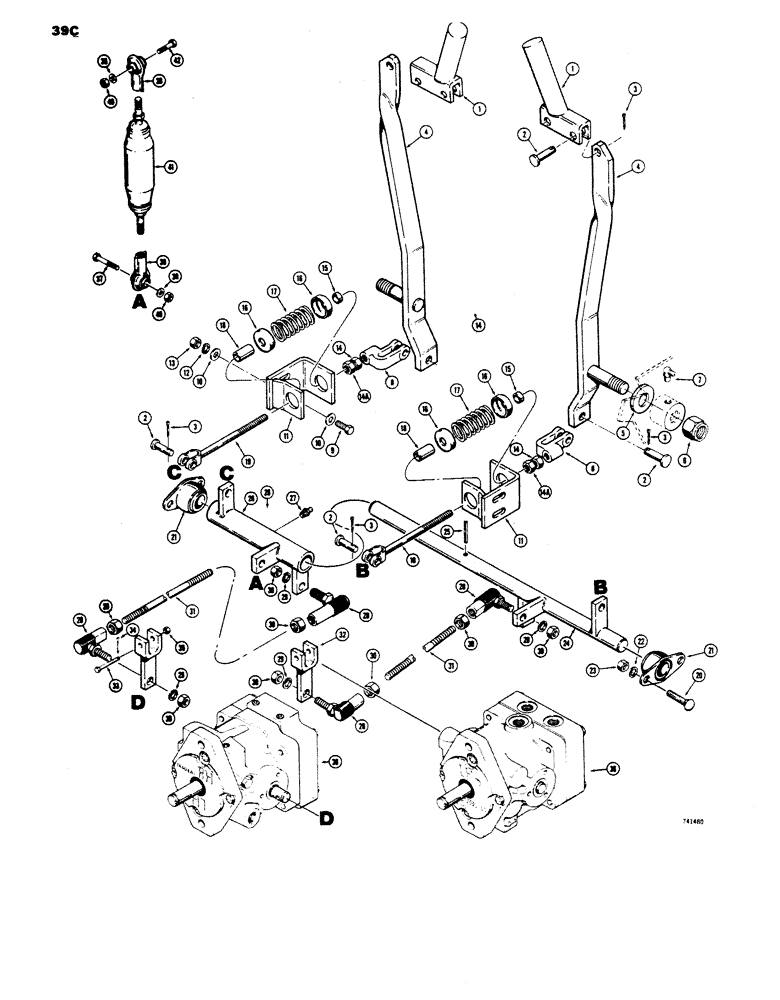

Запчасти Case IH 1816 (39C) - CONTROLS, FORWARD AND REVERSE, USED TRACTOR SERIAL NO. 9826660 AND AFTER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D56613

HANDLE

control

2шт.

2

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

6шт.

3

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

6шт.

4

D57097

HANDLE

LEVER control

2шт.

5

195-45

WASHER,3/4"

2шт.

6

131-83

NUT,3/4"-10

NUT hex, lock, 3/4" - 10 NC

2шт.

7

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

8

L11182

YOKE,3/8" - 24

clevis

2шт.

9

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

10

195-25

WASHER,3/8"

flat, 3/8"

1шт.

11

D60122

RETAINER

spring

2шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC

4шт.

14

25-116

NUT,Hex, 3/8"-24, G5

hex, jam, 3/8" - 24 NF

2шт.

14a

131-5

LOCK NUT,3/8"-16, GB

NUT hex, lock, 3/8" - 24 NF

2шт.

15

D95551

BUSHING

SPACER short

2шт.

16

D56976

CUP ASSY.

CUP spring guide, Includes: Ref. 17

4шт.

17

D74911

SPRING

rod return

2шт.

18

D53393

SPACER

long

2шт.

19

R13752

ROD

pump control

2шт.

20

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

21

L48412

FLANGED BEARING

BEARING shaft support

2шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC

4шт.

24

D60004

SHAFT

pump linkage, inner

1шт.

25

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

26

D60066

CONTROL

SHAFT pump linkage, outer

1шт.

27

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

1шт.

28

D38296

JOINT

ball

4шт.

29

92-6

LOCK WASHER,3/8"

4шт.

30

131-5

LOCK NUT,3/8"-16, GB

NUT hex, lock, 3/8" - 24 NF

8шт.

31

D57104

ROD

pump control

2шт.

32

D61643

LINKAGE

pintle

2шт.

33

D59243

BOLT

HHCS, 1/4" - 20 NC x 1-1/2"

2шт.

34

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

35

131-2

NUT,1/4"-20, GB

NUT hex, lock, 1/4" - 20 NC, Includes: Ref. 36

2шт.

36

REF

INSTRUCTION

PUMP variable displacement, See Figure 63A

2шт.

37

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS, 3/8" - 16 NC x 1-1/2"

2шт.

38

D59922

BALL JOINT

female

4шт.

39

195-25

WASHER,3/8"

plain, 3/8"

8шт.

40

131-652

LOCK NUT,3/8"-16, GB

NUT hex, lock, 3/8" - 16 NC

4шт.

41

D66538

SHOCK ABSORBER

cylinder

2шт.

42

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.
