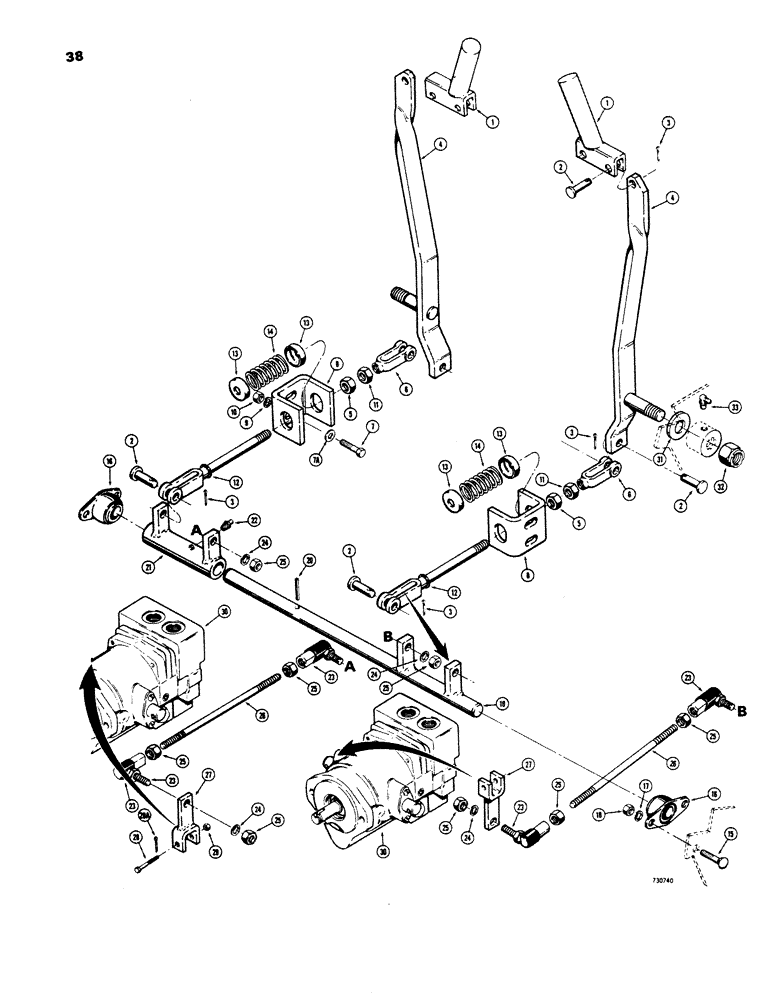

Запчасти Case IH 1816 (38) - CONTROLS, FORWARD AND REVERSE, USED BEFORE TRACTOR SERIAL NO. 9821352 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D56613

HANDLE

control

2шт.

2

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

6шт.

3

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

6шт.

4

D57097

HANDLE

LEVER control

2шт.

5

25-116

NUT,Hex, 3/8"-24, G5

hex, jam, 3/8" - 24 NF

2шт.

6

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE clevis

2шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

7a

195-25

WASHER,3/8"

flat, 3/8"

1шт.

8

D57083

RETAINER spring

2шт.

9

92-6

LOCK WASHER,3/8"

4шт.

10

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC

4шт.

11

131-5

LOCK NUT,3/8"-16, GB

NUT hex, lock, 3/8" - 24 NF

2шт.

12

D57729

ROD pump control

2шт.

13

D63156

SPRING CUP

CUP spring guide

4шт.

14

D57300

SPRING

rod return

2шт.

15

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

4шт.

16

L48412

FLANGED BEARING

BEARING shaft support

2шт.

17

92-6

LOCK WASHER,3/8"

4шт.

18

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC

4шт.

19

D57088

SHAFT pump linkage, inner

1шт.

20

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

21

D57085

SHAFT pump linkage, outer

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

1шт.

23

D38296

JOINT

ball

4шт.

24

92-6

LOCK WASHER,3/8"

4шт.

25

25-116

NUT,Hex, 3/8"-24, G5

hex, 3/8" - 24 NF

8шт.

26

D57104

ROD

pump control

2шт.

27

D57080

LINK

AGE pintle

2шт.

28

D59243

BOLT

HHCS 1/4" - 20 NC x 1-1/2"

2шт.

28a

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

29

131-2

NUT,1/4"-20, GB

NUT hex, lock, 1/4" - 20 NC

2шт.

30

D65642

PUMP

variable displacement, See Figure 60

2шт.

31

195-45

WASHER,3/4"

2шт.

32

131-83

NUT,3/4"-10

NUT hex, lock, 3/4" - 10 NC

2шт.

33

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.
