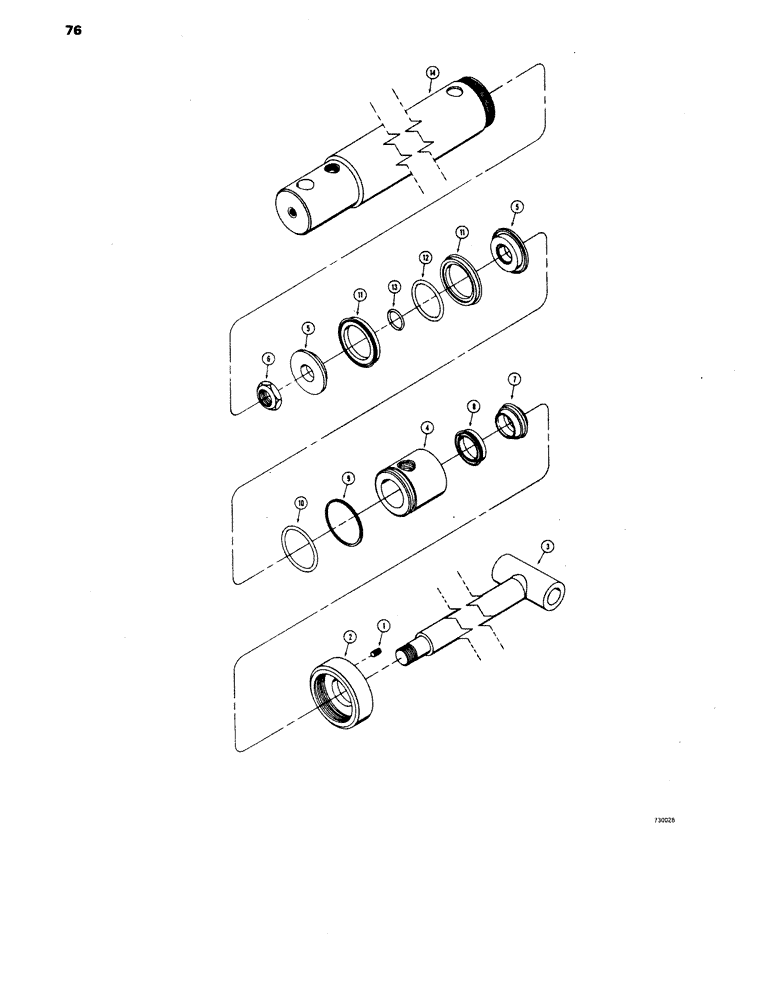

Запчасти Case IH 1816 (76) - D56773 BUCKET CYLINDERS, WARD CYLINDER, NO SPUDS AT HYDRAULIC PORTS (35) - HYDRAULIC SYSTEMS

D56773

CYLINDER

hydraulic, bucket, 2" I.D. x 13 stroke, service with D58574 cylinder, Includes: Ref. 1 - 14

2шт.

1

D59087

SCREW set

1шт.

2

D59086

CAP retaining, gland

1шт.

3

D59080

ROD piston, 1" diameter

1шт.

4

D59081

BOX

GLAND packing

1шт.

5

D59079

PISTON split

2шт.

6

131-91

LOCK NUT,3/4"-16, G8

NUT hex, lock

1шт.

D59088

GASKET KIT

KIT, packing, Includes: Ref. 7 - 13

1шт.

7

D59085

SEAL ASSY.

WIPER rod, outer

1шт.

8

D59084

RING

WIPER rod, inner

1шт.

9

D59083

RING

backup, gland seal

1шт.

10

D32127

O-RING

SEAL "o"ring gland

1шт.

11

D59076

PACKING

piston

2шт.

12

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL piston, large

1шт.

13

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL piston, small

1шт.

14

D59074

TUBE cylinder

1шт.
