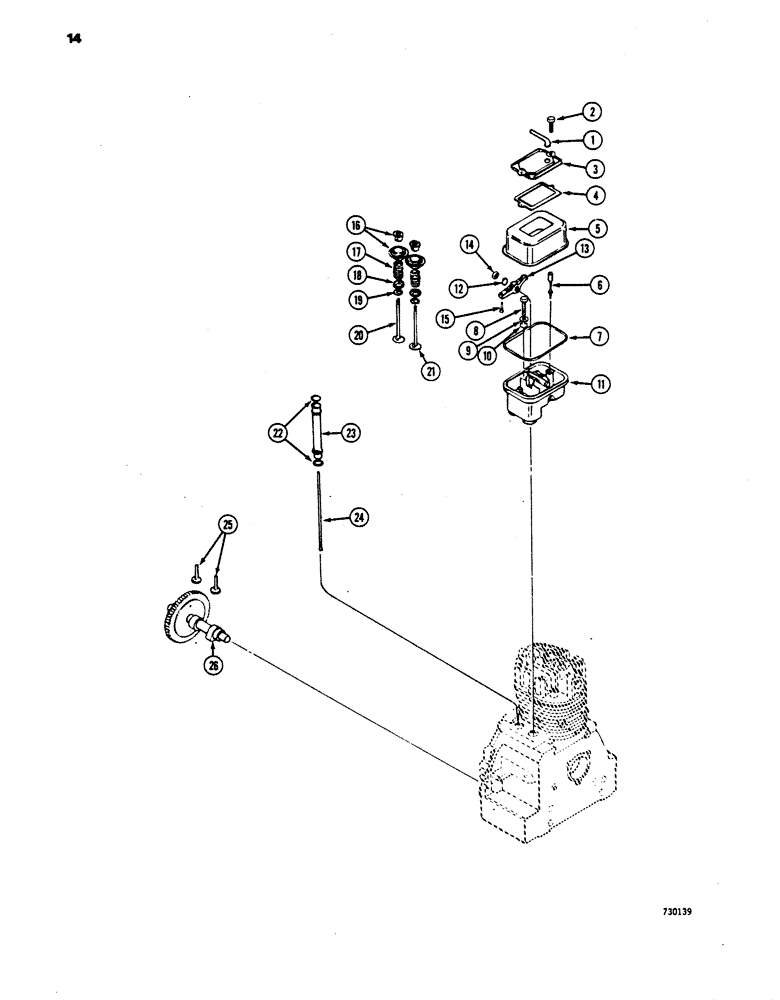

Запчасти Case IH 1816 (14) - CAMSHAFT, ROCKER ARMS, VALVES AND PUSH RODS (10) - ENGINE

1

D59458

TUBE

breather

1шт.

2

182-146

SCREW,Sl Pan Hd, #10 - 32 x 5/8"

machine, 10- 32 NC x 5/8"

2шт.

3

D59457

HOUSING

COVER breather

1шт.

4

D59456

GASKET

breather

1шт.

5

D59455

COVER

rocker arms

1шт.

6

D59453

STUD

rocker arm cover

2шт.

7

D59454

O-RING

SEAL o ring

1шт.

8

D59448

SCREW

HHCS flange, 1/4" - 20 NC x 29/32"

3шт.

9

C16069

WASHER

flat

3шт.

10

D59447

O-RING

SEAL o ring

3шт.

11

D59444

HOUSING

rocker arm

1шт.

12

A41292

RING

retaining

2шт.

13

D59449

ROCKER

ARM rocker

2шт.

14

D59452

NUT

hex, special

2шт.

15

D59451

SCREW

adjusting, special

2шт.

16

D59402

RETAINER

SET retainer and cap, keeper, valve

2шт.

17

D59401

VALVE SPRING

SPRING valve

2шт.

18

D59404

CAP

valve

2шт.

19

D59403

O-RING

SEAL o ring

2шт.

20

D59399

VALVE

exhaust, standard

1шт.

20

D59400

VALVE

exhaust, 1/32" oversize

1шт.

21

D59397

VALVE

intake, standard

1шт.

21

D59398

VALVE

intake, 1/32" oversize

1шт.

22

D59443

O-RING

SEAL o ring

4шт.

23

D59442

TUBE

push rod

2шт.

24

D59396

ROD

push

2шт.

25

D59395

GRAIN LIFTER

LIFTER valve

2шт.

26

D59394

CAMSHAFT

engine

1шт.

Ref. 26THIS PART HAS TEETH AT AN ANGLE NOT STRAIGHT, BOTH ARE TECUMSEH PARTS, N59394 HAS STRAIGHT TEETH

1шт.
