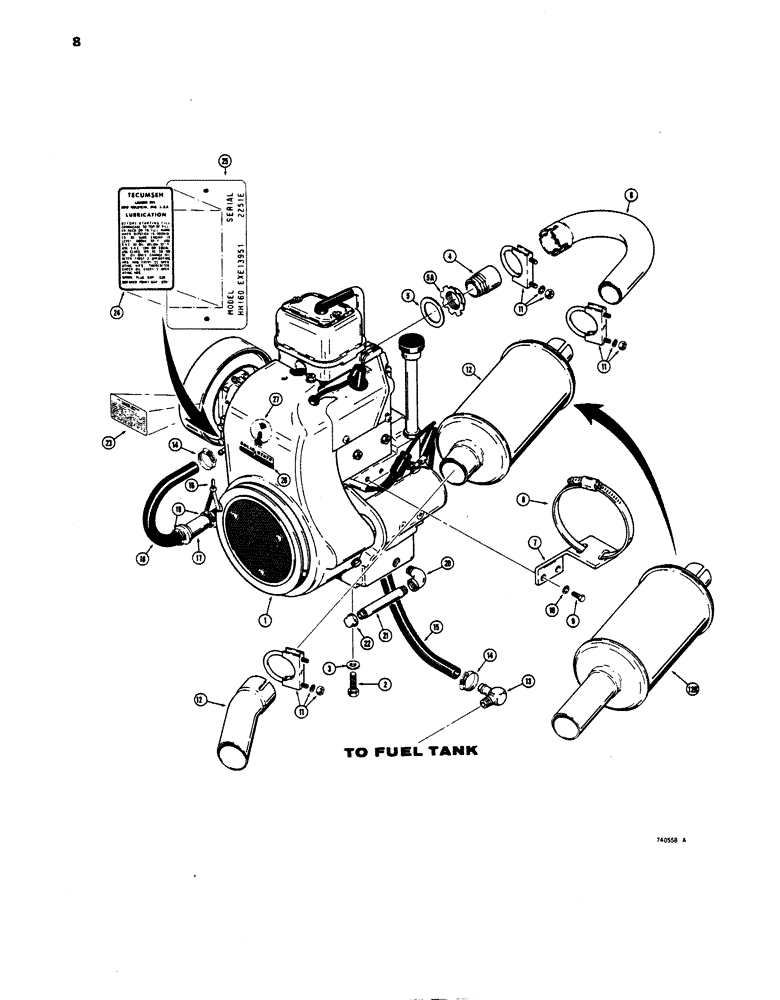

Запчасти Case IH 1816 (08) - ENGINE MOUNT, MUFFLER AND FUEL LINE (10) - ENGINE

1

D56819

ENGINE

Tecumseh HH160-170008, used before tractor serial number 9826660, See Figures 10 - 26 for components

1шт.

1

D69123

ENGINE ASSEMBLY

ENGINE Tecumseh HH160-170036, used tractor serial number 9826660 and after, See Figures 10 - 26 for components

1шт.

1

D71591

ENGINE

Tecumesh HH-160048, used tractor serial number 9826660 and after, See Figures 10 - 26 for components

1шт.

2

118-2226

HHCE self locking, 3/8" - 16 NC x 1"

4шт.

3

D41740

WASHER

hardened, 3/8"

4шт.

4

D59121

FITTING

NIPPLE pipe, exhaust

1шт.

5

T40036

WASHER, THRUST,34.98mm ID x 52.12mm OD x 0.81mm Thk

WASHER special

1шт.

5a

223-203

NUT

conduit

1шт.

6

D60992

PIPE FITTING

PIPE exhaust

1шт.

7

D60934

BRACKET

muffler support

1шт.

8

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP muffler

1шт.

9

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

10

92-5

LOCK WASHER,5/16"

2шт.

11

D58859

CLAMP

ASSEMBLY, muffler

2-3шт.

12

D57542

MUFFLER

exhaust, 10-1/2" long, use D60951 muffler

1шт.

12a

D60801

PIPE FITTING

PIPE exhaust, extension, D57542 muffler

1шт.

12b

D60951

MUFFLER

exhaust, 14-1/2" long

1шт.

12b

D60986

MUFFLER

exhaust, spark arresting

1шт.

13

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

ELBOW hose barb, 90 degree, fuel lines, models without electric fuel pump

1шт.

14

214-335

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP hose, fuel lines, models without electric fuel pump

2шт.

15

D57412

HOSE

fuel, 33" x 1/4" I.D., used before serial number 9826660, fuel lines, models without electric fuel pump

1шт.

15

D64267

FUEL HOSE,0.25" ID x 31.00", SAE 30R7

Used Serial Number 9826660 Thru 9826659, Fuel Lines, Models Without Electric Fuel Pump 0.25" ID x 31.00", SAE 30R7

1шт.

15

D69490

HOSE

fuel, 42" x 1/4" I.D., used serial number 9826660 and after, fuel lines, models without electric fuel pump

1шт.

16

L11541

CABLE TIE,203.2mm L, Nylon

STRAP hose, fuel lines, models without electric fuel pump

1шт.

17

D59949

FILTER

fuel, fuel lines, models without electric fuel pump

1шт.

18

D59944

FUEL HOSE,0.25" ID x 7.20", SAE 30R6 or SAE 30R7

Lines, Models Without Electric Fuel Pump 0.25" ID x 7.20", SAE 30R6 or SAE 30R7

1шт.

19

214-335

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP hose, fuel lines, models without electric fuel pump

2шт.

20

221-413

ELBOW,90 Degree, 3/8"-18, NPT

90 degree, street, engine oil drain

1шт.

21

221-170

PIPE,Nipple, 3/8" NPT x 5"

nipple, 3/8" x 5", engine oil drain

1шт.

22

221-524

CAP,3/8" NPT

pipe, 3/8", engine oil drain

1шт.

23

C15862

DECAL

air cleaner instructions, Tecumesh engine

1шт.

24

D59569

DECAL instructions and name, Tecumesh engine

1шт.

25

NSS

NOT SOLD SEPARAT

PLATE identification, Tecumesh engine decals

1шт.

26

D59570

DECAL solid state, Tecumesh engine

1шт.

27

D59590

DECAL

name and h.p., HH160-170008 engine, Tecumesh engine

1шт.

27

D66434

DECAL

name and h.p., HH160-170036 and HH 160-170048 Engine, Tecumesh engine

1шт.
