Запчасти Case IH 1700-SERIES (157E) - LOADER LIFT HYDRAULICS (35) - HYDRAULIC SYSTEMS

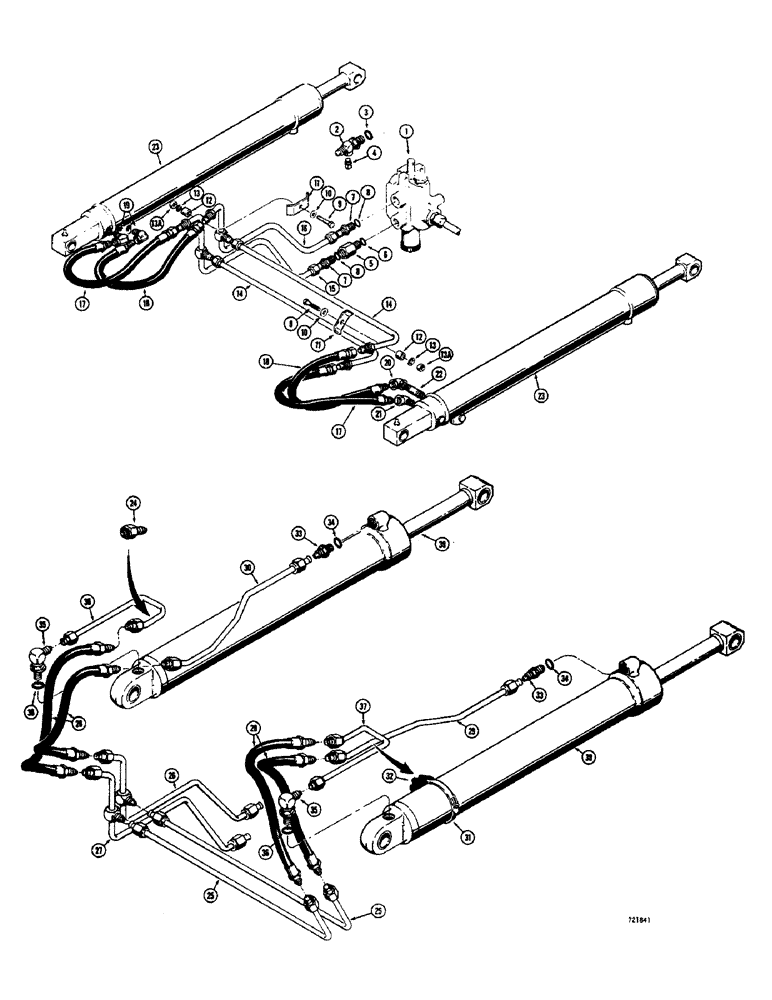

Схема запчастей Case IH 1700-SERIES - (157E) - LOADER LIFT HYDRAULICS (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE - lift (Parts list Figure 170)

1шт.

2

D57607

TEE - special (Used on models without pressure test ports in cylinders), Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

221-12

PLUG,Sq Hd, 1/4"-18

- pipe., sq. head (1/4" NPT)

1шт.

5

T40305

FITTING

RESTRICTOR - lift circuit

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

7

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, male, Includes: Ref. 8

2шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

9

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

10

195-25

WASHER,3/8"

- plain () 3/8"

2шт.

11

A13622

PLATE, LOCKING

CLAMP - tube

2шт.

12

D33552

BUSHING

SPACER - tube

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

13a

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

14

T40284

TUBE

- crossover, lift, Serial Range: -9818188

2шт.

15

T41741

TUBE,15.26, 8.84" L

- bottom, lift, Serial Range: -9818188

1шт.

16

T41742

TUBE,15.16, 8.34" L

- top, lift, Serial Range: -9818188

1шт.

17

T40297

HOSE

- lift, 24-1/2" long, Serial Range: -9818188

2шт.

18

T40296

HOSE - lift, 22-1/2" long, Serial Range: -9818188

2шт.

19

217-1087

ELBOW,45 Degree, 3/8"-18 Female x 3/8"-18 Male

Street (LH cylinder) 45º, 3/8"-18 Female x 3/8"-18 Male, Serial Range: -9818188

2шт.

20

217-1052

ELBOW,3/8" - 18 NPTF Female

- 90 degree, pipe (R.H. cylinder), Serial Range: -9818188

1шт.

21

217-1016

ELBOW,3/8" - 18 Female x 3/8" - 18 Male

- 90 degree, street (R.H. cylinder), Serial Range: -9818188

1шт.

22

221-716

NIPPLE - pipe (3/8" NPT], Serial Range: -9818188

1шт.

23

REF

INSTRUCTION

CYLINDER - lift (See page 228 for proper cylinders), Serial Range: -9818188

2шт.

When replacing G32935 or G33754 cylinders with G34244 cylinder also order D16862 kit.

1шт.

24

218-464

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Female NPTF

ADAPTER - male, straight (Used with D60481 and D60479 tubes), Serial Range: -9818188

2шт.

Part of P/N D16862 Lift Cylinder Kit

1шт.

25

D56601

TUBE - lift, crossover, Start Serial: 9818188

2шт.

26

D56612

TUBE - lift, top, Start Serial: 9818188

1шт.

27

D56611

TUBE

- lift, bottom, Start Serial: 9818188

1шт.

28

D56597

HOSE ASSY.

HOSE - hyddraulic (19" long), Start Serial: 9818188

4шт.

29

D60475

TUBE - rod end of cylinder, R.H., Start Serial: 9818188

1шт.

Part of P/N D16862 Lift Cylinder Kit

1шт.

30

D60477

TUBE - rod end of cylinder, L.H., Start Serial: 9818188

1шт.

Part of P/N D16862 Lift Cylinder Kit

1шт.

31

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - screw type, Start Serial: 9818188

2шт.

Part of P/N D16862 Lift Cylinder Kit

1шт.

32

R24703

SUPPORT

SADDLE - rubber, Start Serial: 9818188

2шт.

Part of P/N D16862 Lift Cylinder Kit

1шт.

33

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

male, straight, Incl. Ref 34 3/4"-16, 37º x 7/8"-14, O-Ring, Start Serial: 9818188

2шт.

Part of P/N D16862 Lift Cylinder Kit

1шт.

35

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, male (Adjustable), Includes: Ref. 36, Start Serial: 9818188

2шт.

Part of P/N D16862 Lift Cylinder Kit

1шт.

37

D60479

TUBE - closed end of cylinder, R.H., Start Serial: 9818188

1шт.

Part of P/N D16862 Lift Cylinder Kit

1шт.

38

D60481

TUBE

- closed end of cylinder, L.H., Start Serial: 9818188

1шт.

Part of P/N D16862 Lift Cylinder Kit

1шт.

39

G34244

CYLINDER

- lift (Parts list Figure 240), Start Serial: 9818188

2шт.

D16862

TUBE

KIT lift cylinder, Includes: Refs. 24, 29 - 33, 35, 37 and 38, Start Serial: 9818188

1шт.

34

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring, Start Serial: 9818188

1шт.

36

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring, Start Serial: 9818188

1шт.
