Запчасти Case IH 1700-SERIES (118) - FRONT AXLE ASSEMBLY WITH BRAKE (33) - BRAKES & CONTROLS

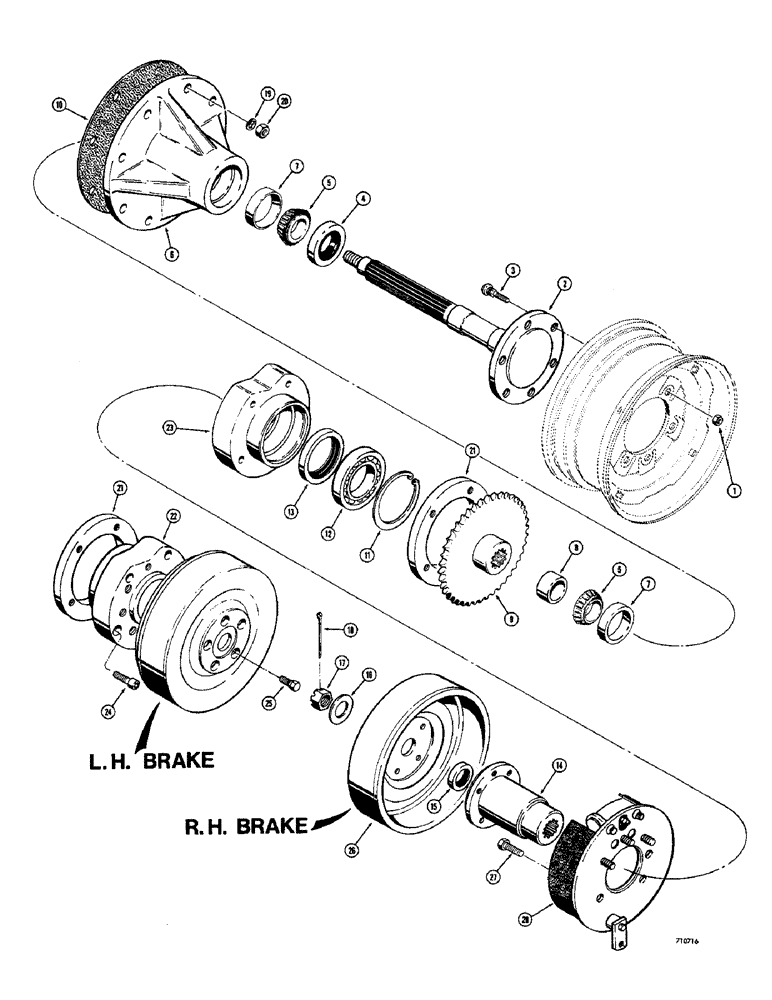

Схема запчастей Case IH 1700-SERIES - (118) - FRONT AXLE ASSEMBLY WITH BRAKE (33) - BRAKES & CONTROLS

Артикул

Название

Примечание

Количество

1

F23214

WHEEL NUT

- wheel, special

12шт.

D53771

AXLE ASSEMBLY - with bolts, Including: Ref. 2 - 3

2шт.

2

NSS

NOT SOLD SEPARAT

AXLE - wheel

1шт.

3

T40045

WHEEL BOLT

BOLT - wheel, special

6шт.

4

D53767

OIL SEAL,57.15mm ID x 85.75mm OD x 11mm Thk

- oil

2шт.

5

D53766

TAPERED BEARING,1.7812" ID x 0.78"

CONE - bearing

4шт.

D53763

HUB

ASSEMBLY - axle, Including: Ref. 6 - 7

2шт.

6

T40048

HUB

- axle

1шт.

7

D53762

BEARING CUP,2.892" OD x 0.62"

CUP - bearing

2шт.

8

D53784

BUSHING

SPACER - axle

2шт.

9

D53024

DRIVE SPROCKET

SPROCKET - front axle

2шт.

10

T42395

GASKET

- hub

2шт.

11

S75790

RING

- snap

2шт.

12

D53834

BEARING

- ball

2шт.

13

D53835

SEAL

- oil

2шт.

14

D53720

HUB CAP

HUB - axle, brake band mounting

2шт.

15

D53775

SEAL ASSY.

SEAL - oil

2шт.

16

D53273

WASHER,23.02mm ID x 57.15mm OD x 1.41mm Thk

- special

2шт.

17

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - castle (7/8" - 14 NF)

2шт.

18

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

19

92-9

BEARING WASHER,9/16"

16шт.

20

25-119

NUT,9/16"-18, G5

- hex. (9/16" - 18 NF)

16шт.

21

D53743

PLATE - backing, brake mounting

2шт.

22

D53721

BLOCK - brake mounting, L.H.

1шт.

23

D53722

BLOCK

- brake mounting, R.H.

1шт.

24

61-836

BOLT,1/2" - 13 x 2 1/4"

- hex., socket head (1/2" - 13 NC x 2-1/4")

10шт.

25

A29912

BOLT

BOLT - special, Serial Range: drum-block

10шт.

26

D53792

DRUM - brake (When stock is exhausted, use D55966 drum)

2шт.

26

D55966

DRUM HUB

DRUM - brake

2шт.

27

14-1020

BOLT,Hex, 5/8" - 18 x 1-1/4", Gr 5

Hex, 5/8"-18 x 1 1/4

6шт.

28

REF

INSTRUCTION

BRAKE ASSEMBLY - see page 120 for mounting and components parts

2шт.

B93176

BEARING,45.24mm ID x 73.46mm OD

KIT wheel, consists of: (2) Ref. 7 cup, Ref. 5 cone and Ref. 4 seal, one kit per wheel

1шт.

Выбрано товаров: 32
