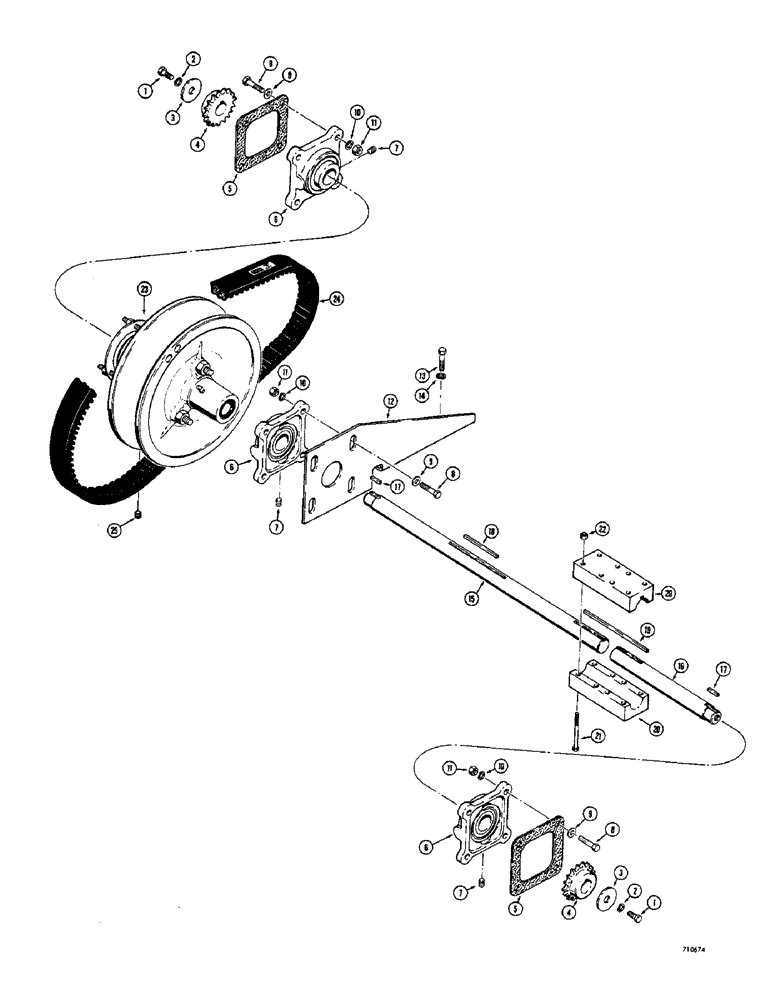

Запчасти Case IH 1700-SERIES (112) - JACKSHAFT AND BEARINGS, MODELS W/O BRAKES, BEFORE S/N 9818936, MODELS W/ BRAKES BEFORE S/N 9818849 (14) - MAIN GEARBOX & DRIVE

1

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

2

92-8

LOCK WASHER,1/2"

2шт.

3

T40255

WASHER

Special, 1/2" x 1-3/4"

2шт.

4

T40069

DRIVE SPROCKET

17 tooth

2шт.

5

T42394

GASKET

Flange bearing

2шт.

6

T40071

FLANGE

BEARING ASSEMBLY - includes flange and collar (For service order D55533 bearing assembly), Including: Ref. 7

3шт.

6

D55533

FLANGED BEARING,1.25" ID

ASSEMBLY - includes flange and collar, Including: Ref. 7

3шт.

7

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

Cup pt

1шт.

8

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

12шт.

9

95-33

WASHER - plain (1/2")

12шт.

10

92-8

LOCK WASHER,1/2"

12шт.

11

25-108

NUT,1/2"-13, G5

Hex

12шт.

12

T42420

FLANGED BEARING

Center bearing

1шт.

13

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

14

92-8

LOCK WASHER,1/2"

2шт.

15

T40076

SHAFT

JACK - long, Serial Range: -9816540

1шт.

15

D54819

JACKSHAFT

JACKSHAFT - long, Start Serial: 9816540

1шт.

16

T40078

JACKSHAFT

JACKSHAFT - short

1шт.

17

T33565

BUCKET TOOTH KEY

Square, 1/4" x 1"

2шт.

18

B18322

KEY

Square, 1/4" x 3-1/2"

1шт.

19

T40079

KEY

Square, 1/4" x 7"

1шт.

20

T40080

CLAMP

ASSEMBLY - jackshaft

1шт.

21

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

8шт.

22

131-179

LOCK NUT,3/8"-16, GA

Hex

8шт.

23

REF

INSTRUCTION

VARIABLE SPEED DRIVEN ASSEMBLY - see page 110

1шт.

24

D58998

V-BELT,1.81" W x 51.70" L

Variable Drive

1шт.

25

178-857

SET SCREW,Hex Soc, 1/2"-13 x 5/8"

Cup joint

1шт.
