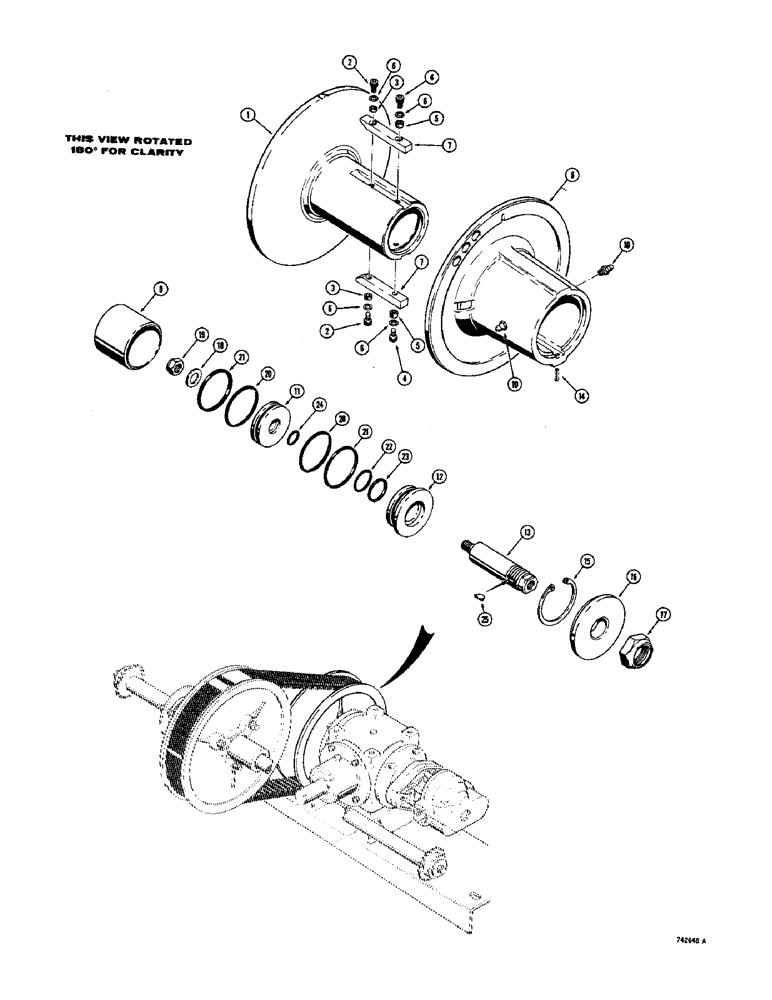

Запчасти Case IH 1700-SERIES (109C) - 9 INCH VARIABLE SPEED DRIVE ASSEMBLY (14) - MAIN GEARBOX & DRIVE

D66564

PULLEY

VARIABLE SPEED DRIVE ASSEMBLY, Including: Ref. 1 - 25

1шт.

1

NSS

NOT SOLD SEPARAT

SHEAVE - male

1шт.

2

T40088

SCREW

SET SCREW - #10 - 24 NC x 1/2"

2шт.

3

D66296

BUSHING

STANDOFF

2шт.

4

165-23

HEX SOC SCREW,#10 - 24 x 3/4"

SET SCREW - #10 - 24 NC x 3/4" (Replaces 165-111)

2шт.

5

D66292

BUSHING

STANDOFF

2шт.

6

193-111

LOCK WASHER,Ext Tooth, #10

WASHER - lock, #10 (Internal Shakeproof) (Replaces 193-26)

4шт.

7

D66291

KEY

- sheave

2шт.

8

NSS

NOT SOLD SEPARAT

SHEAVE - female

1шт.

9

D66295

TUBE

- cylinder

1шт.

10

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight (1/4" - 28 NF)

2шт.

11

D53322

PISTON

- variable speed drive

1шт.

12

D66290

PLUG

GUIDE - ram

1шт.

13

D66294

CYLINDER

RAM - variable speed drive

1шт.

14

138-110

LOCK PIN,7/32" x 3/4", Slotted

PIN, LOCK, 7/32" x 3/4", Slotted

1шт.

15

T40094

RING

- snap

1шт.

16

D66293

WASHER

- special

1шт.

17

131-39

NUT,1"-14

NUT - hex., lock (1" - 14 NF) (Replaces 25-1516)

1шт.

18

195-2065

WASHER,33/64" x 7/8" x .049"

- plain (1/2")

1шт.

19

131-578

NUT,1/2"-20

NUT - hex., lock (1/2" - 20 NF); Thin Height

1шт.

T42640

SEAL KIT

KIT - seal, variable speed drive, Including: Ref. 20 - 24

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, 2" O.D.

2шт.

21

NSS

NOT SOLD SEPARAT

RING - backup, 2" O.D.

2шт.

22

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, 1-1/4" O.D.

1шт.

23

NSS

NOT SOLD SEPARAT

RING - backup, 1-1/4" O.D.

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, 13/16" O.D.

1шт.

25

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

(Replaces 129-9) #3, 1/8" x 1/2"

1шт.
