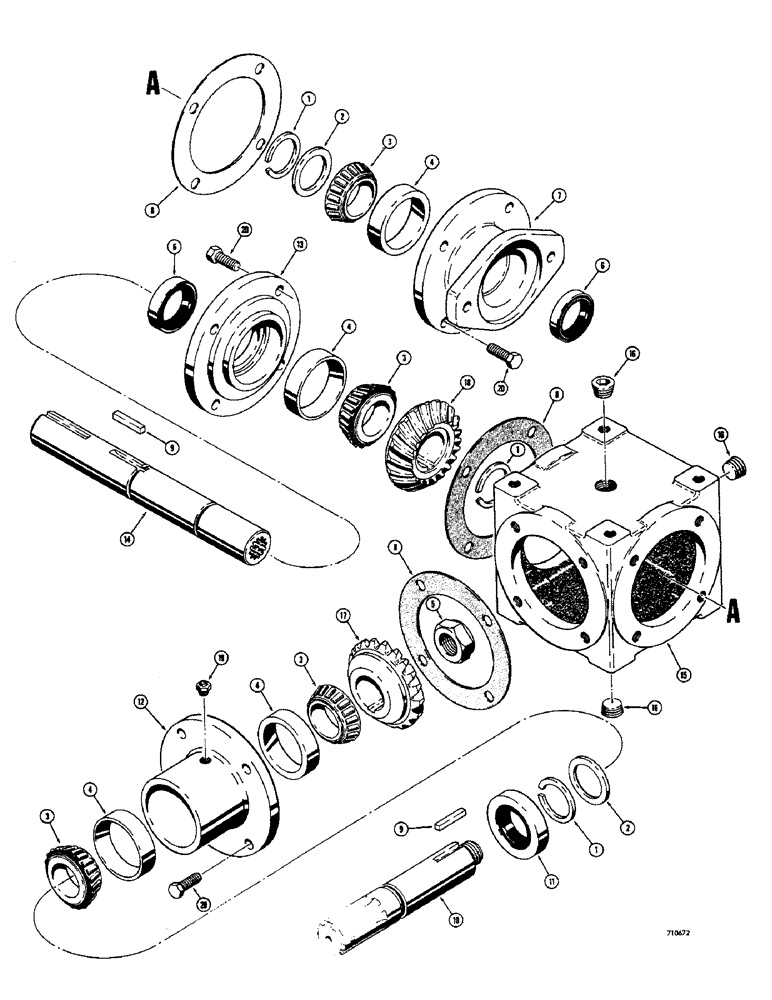

Запчасти Case IH 1700-SERIES (104) - HUB CITY GEAR BOXES (14) - MAIN GEARBOX & DRIVE

D53513

GEAR BOX - Hub City #02-21-01468-136 (Output shaft is keyed only) , Includes: Ref. 1 - 20, Serial Range: -9819054

1шт.

D57640

GEAR BOX - Hub City #2-21-01961-136 (Output shaft keyed and tapped for 3/8" bolt) , Includes: Ref. 1 - 20, Start Serial: 9819054

1шт.

1

T40126

RING

SNAP RING - bearing and gear retaining

3шт.

2

T40125

WASHER

- spacer

2шт.

3

G57452

ROLLER BEARING

CONE - bearing

4шт.

4

G57451

BEARING, CUP

CUP - bearing

4шт.

5

131-39

NUT,1"-14

NUT - hex., lock (1" - 14 NF)

1шт.

6

T40123

SEAL

- oil

2шт.

7

D53684

CYLINDER END CAP

FLANGE - pump mounting

1шт.

8

T40128

GASKET

GASKET - gear box assembly

1шт.

9

F11313

KEY

- shaft

2шт.

10

D53920

SHAFT

- pinion

1шт.

11

T40124

SEAL

- oil

1шт.

12

T42476

HOUSING

- pinion

1шт.

13

T40114

CAP

PLATE - case, output shaft end

1шт.

14

T41835

SHAFT

- output, D53513 gear box

1шт.

14

D56905

SHAFT

- output, D57640 gear box

1шт.

15

T40113

CASE

- gear box

1шт.

16

221-34

DRAIN PLUG,Hex Soc, 1/2"-14, NPTF

PLUG - pipe, 1/2" NPT

3шт.

D53691

GEAR WHEEL

GEAR SET - bevel, drive and driven, Includes: Ref. 17 - 18

1шт.

17

NSS

NOT SOLD SEPARAT

GEAR - bevel, pinion shaft

1шт.

18

NSS

NOT SOLD SEPARAT

GEAR - bevel, output shaft

1шт.

19

T42477

FITTING

VENT - pinion housing

1шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

12шт.
