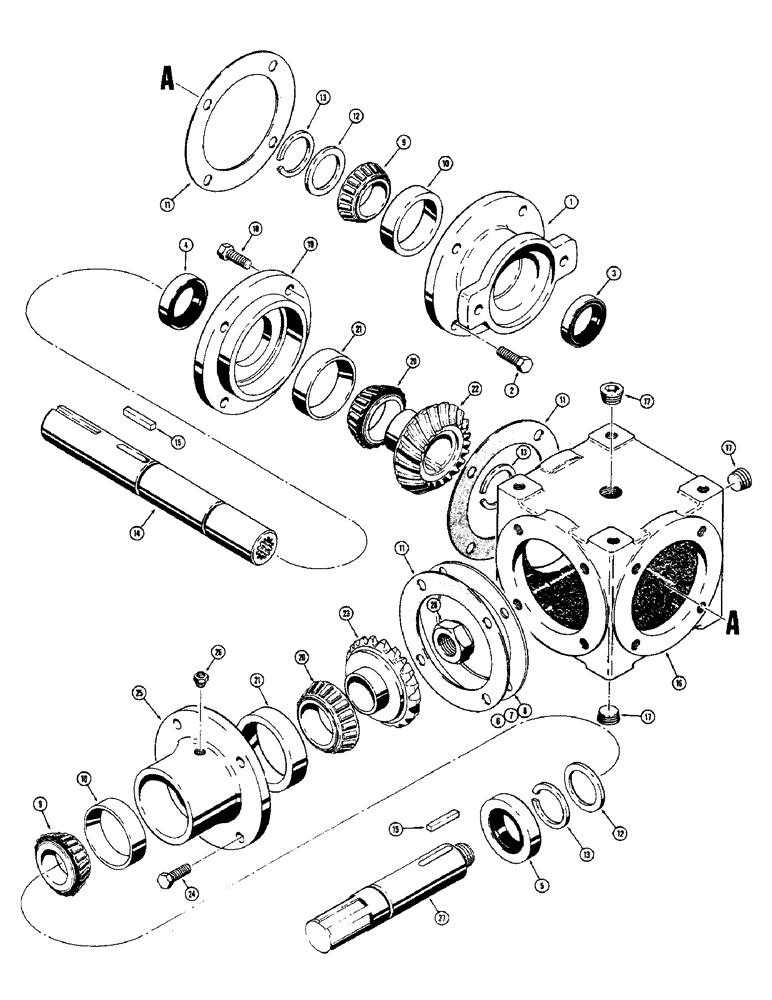

Запчасти Case IH 1700-SERIES (102) - VON RUDEN GEAR BOXES (14) - MAIN GEARBOX & DRIVE

D53512

GEAR BOX - Von Ruden #51185 (Output shaft is keyed only), Serial Range: -9819054

1шт.

D57639

GEAR BOX - Von Ruden #90443 (Output shaft is keyed and tapped for 3/8" bolt), Includes: Ref. 1 - 28, Start Serial: 9819054

1шт.

1

D53661

FLANGE

- mounting

1шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

D53678

SEAL

KIT - seal and bearing, Includes: Ref. 3 - 11

1шт.

3

D53668

OIL SEAL

- output shaft, pump end

1шт.

4

D53666

SEAL

- output shaft, sheave end

1шт.

5

D53675

SEAL

- pinion shaft

1шт.

6

D63380

SHIM,.001" Thk

1шт.

7

D63381

SHIM,.003" Thk

1шт.

8

D63382

SHIM,.005" Thk

1шт.

9

A29976

ROLLER BEARING

CONE - bearing

2шт.

10

A29977

BEARING CUP

CUP - bearing

2шт.

11

D53669

GASKET

SHIM - .005" thick, fiber (If used)

3шт.

12

D53673

WASHER

- special, backup

2шт.

13

R21976

RING

- retaining (Replaces FH740613)

3шт.

14

D53667

SHAFT

- output, D53512 gear box

1шт.

14

D56907

SHAFT

- output, D57639 gear box

1шт.

15

D53677

KEY

- square

2шт.

16

D53662

CASE - gear box

1шт.

17

221-844

PLUG,Hex Soc, 1/2"-14

- pipe, hex. socket head

3шт.

18

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

19

D53665

PLATE - case, output

1шт.

20

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

CONE - bearing

2шт.

21

A61446

BEARING CUP

CUP - bearing

2шт.

D53679

GEAR

SET - bevel, drive and driven, Includes: Ref. 22 - 23

1шт.

22

NSS

NOT SOLD SEPARAT

GEAR - bevel, output shaft

1шт.

23

NSS

NOT SOLD SEPARAT

GEAR - bevel, pinion shaft

1шт.

24

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

25

D53674

HOUSING

- pinion shaft

1шт.

26

R11152

FITTING

VENT - breather

1шт.

27

D53676

SHAFT

- pinion

1шт.

28

131-39

NUT,1"-14

NUT - hex., lock (1" - 14 UNS)

1шт.

D17710

SHIM

KIT - shim, conversion (From plastic shim to steel shim) After conversion, order parts from page 103A, Serial Range: -9823868

1шт.

D53668 SEAL (Item 3)

1шт.

D53666 SEAL (Item 4)

1шт.

D63380 SHIM (Item 6)

6шт.

D63381 SHIM (Item 7)

6шт.

D63382 SHIM (Item 8)

6шт.

D63806 SHIM (Not shown)

6шт.

D63807 SHIM (Not shown)

6шт.
